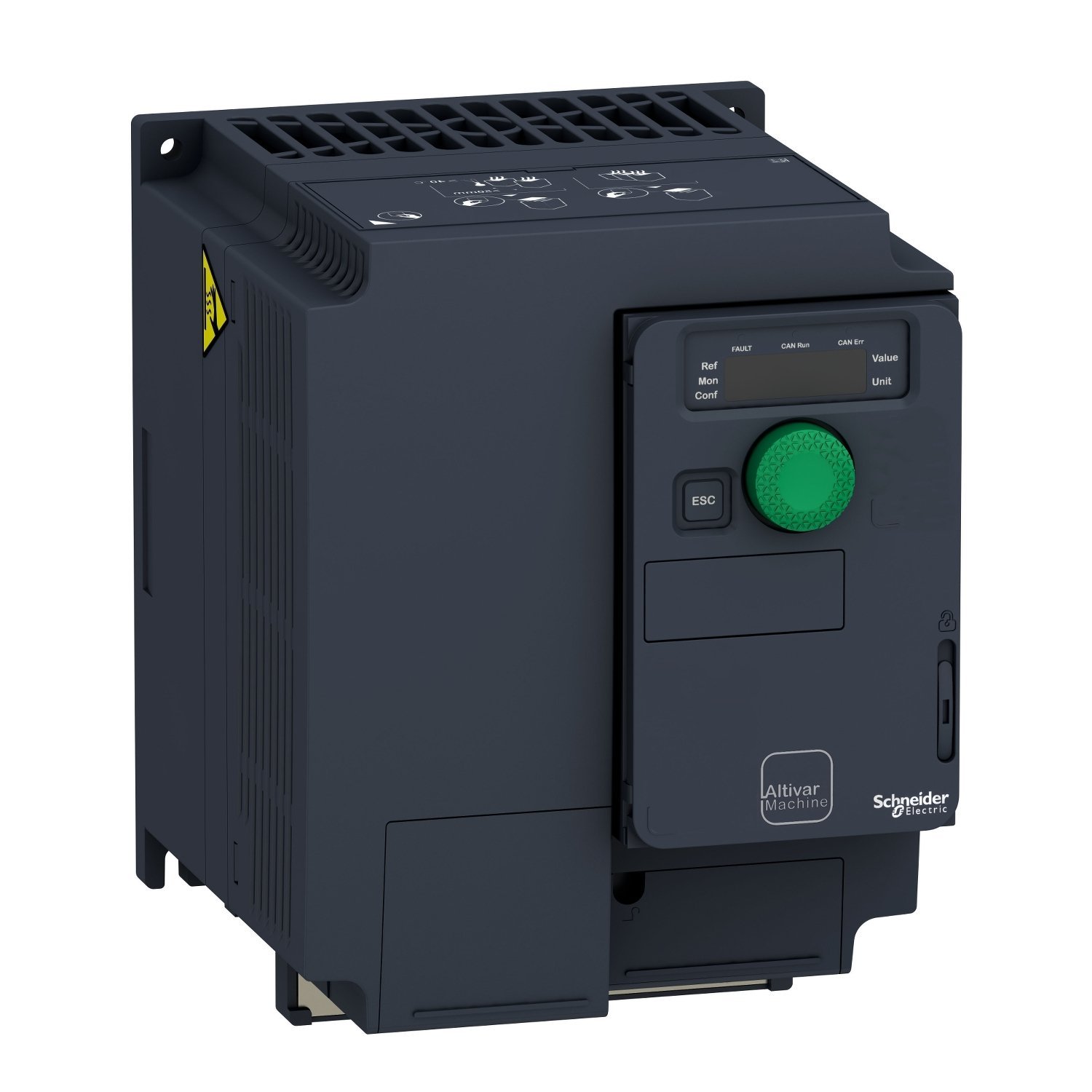

Variable speed drive, Altivar Machine ATV320, 4 kW, 525…600 V, 3 phases, compact
Manufacturer: Schneider Electric
Part Number: ATV320U40S6C
EAN: 3606480966828
Key Specifications
| Range of product | Altivar Machine ATV320 |
| Mounting mode | Wall mount |
| [Us] rated supply voltage | 525…600 V – 15…10 % |
| nominal output current | 6.1 A |
| Motor power kW | 4.0 kW for heavy duty |
| Motor power hp | 5 hp |
| IP degree of protection | IP20 |
| Maximum switching current | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC | Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
| Maximum output frequency | 0.599 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 6.5 A at 525 V (heavy duty) | 5.8 A at 600 V (heavy duty) |
| Maximum input current | 6.5 A |
| Maximum output voltage | 600 V |
| Apparent power | 6.0 kVA at 600 V (heavy duty) |
| Network frequency | 50…60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Base load current at high overload | 6.1 A |
| Power dissipation in W | Fan: 96.0 W at 525 V, switching frequency 4 kHz |
| Net weight | 2.5 kg |
| Overvoltage category | III |
| Package 1 Weight | 2.424 kg |
| Package 2 Weight | 50.200 kg |
