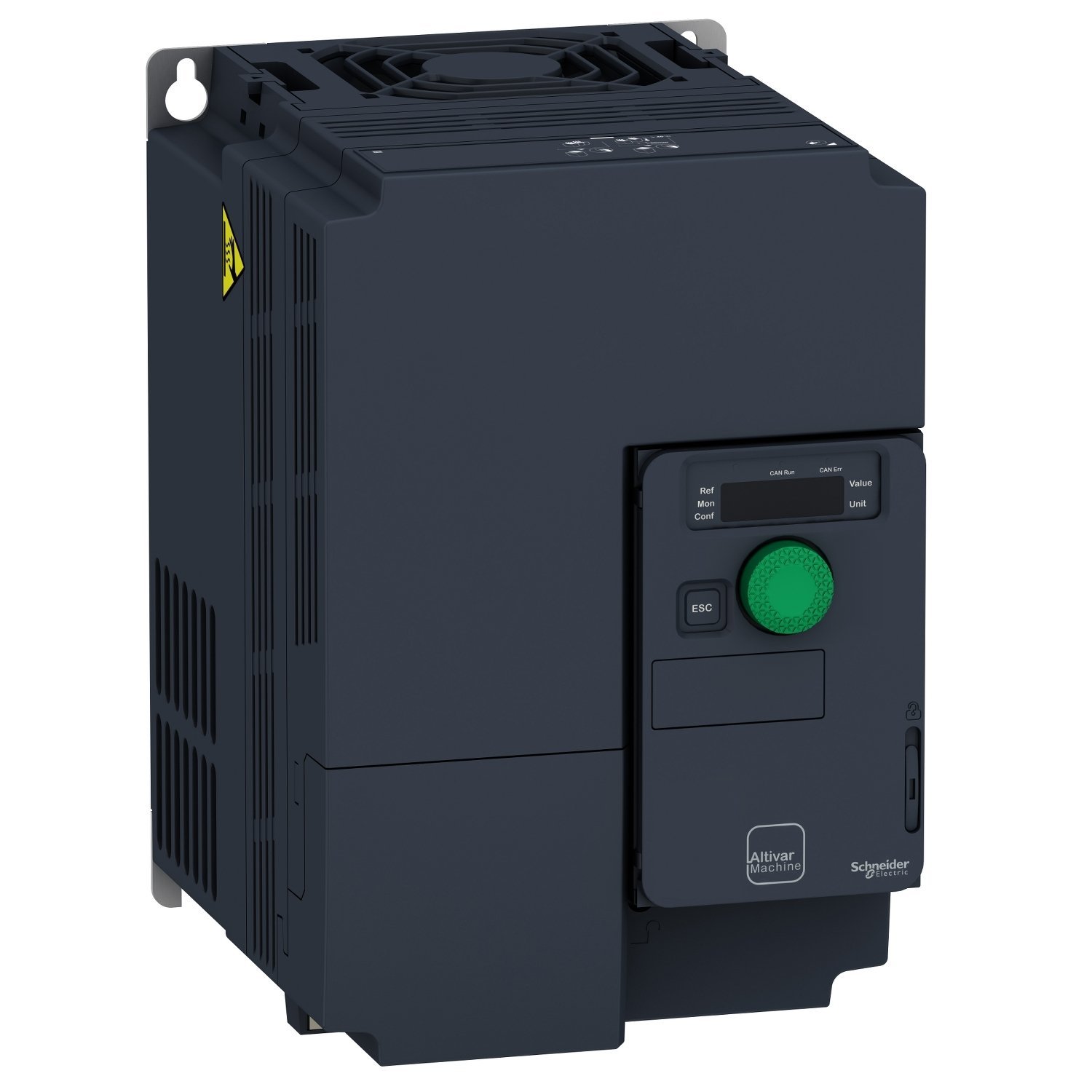

Variable speed drive, Altivar Machine ATV320, 7.5 kW, 525…600 V, 3 phases, compact
Manufacturer: Schneider Electric
Part Number: ATV320U75S6C
EAN: 3606480966842
Key Specifications
| Range of product | Altivar Machine ATV320 |
| Mounting mode | Wall mount |
| [Us] rated supply voltage | 525…600 V – 15…10 % |
| nominal output current | 11.0 A |
| Motor power kW | 7.5 kW for heavy duty |
| Motor power hp | 10 hp |
| IP degree of protection | IP20 |
| Maximum switching current | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC | Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
| Maximum output frequency | 0.599 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 11.6 A at 525 V (heavy duty) | 10.5 A at 600 V (heavy duty) |
| Maximum input current | 11.6 A |
| Maximum output voltage | 600 V |
| Apparent power | 10.9 kVA at 600 V (heavy duty) |
| Network frequency | 50…60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Base load current at high overload | 4 A |
| Power dissipation in W | Fan: 175.0 W at 525 V, switching frequency 4 kHz |
| Net weight | 3.5 kg |
| Overvoltage category | III |
| Package 1 Weight | 4.416 kg |
| Package 2 Weight | 57.160 kg |
