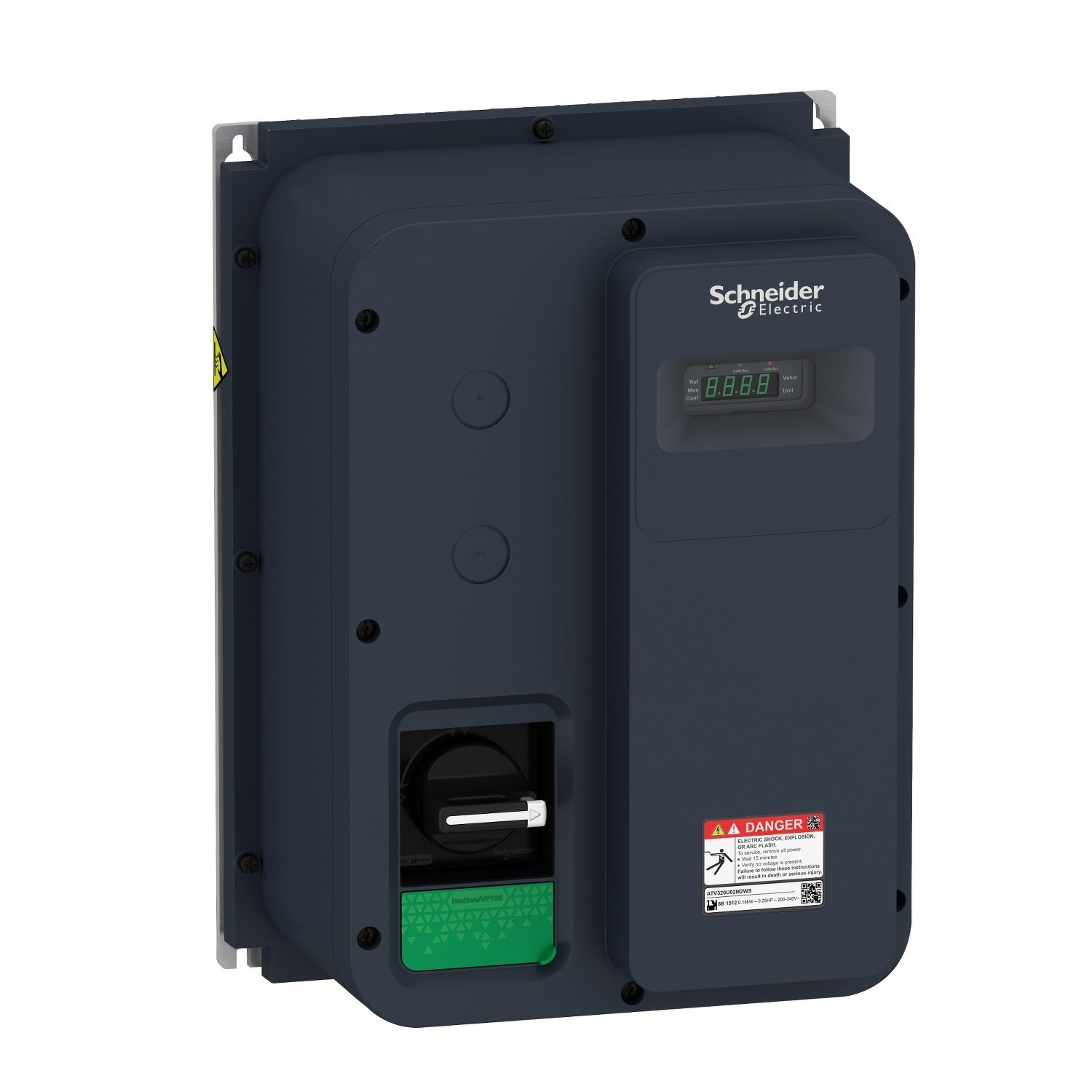

Variable speed drive, Altivar Machine ATV320, 0.37 kW, 200…240 V, 1 phase, enclosed
Manufacturer: Schneider Electric
Part Number: ATV320U04M2WS
EAN: 3606489548575
Key Specifications
| Range of product | Altivar Machine ATV320 |
| Mounting mode | Wall mount |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| nominal output current | 3.3 A |
| Motor power kW | 0.37 kW for heavy duty |
| Motor power hp | 0.5 hp |
| IP degree of protection | IP65 |
| Maximum switching current | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC | Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
| Maximum output frequency | 0.599 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 5.9 A at 200 V (heavy duty) | 4.9 A at 240 V (heavy duty) |
| Maximum input current | 5.9 A |
| Maximum output voltage | 240 V |
| Apparent power | 1.2 kVA at 240 V (heavy duty) |
| Network frequency | 50…60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Base load current at high overload | 6.9 A |
| Power dissipation in W | Self-cooled: 30 W at 200 V, switching frequency 4 kHz |
| Net weight | 5.5 kg |
| Overvoltage category | III |
| Package 1 Weight | 7.451 kg |
| Package 2 Weight | 39.804 kg |
