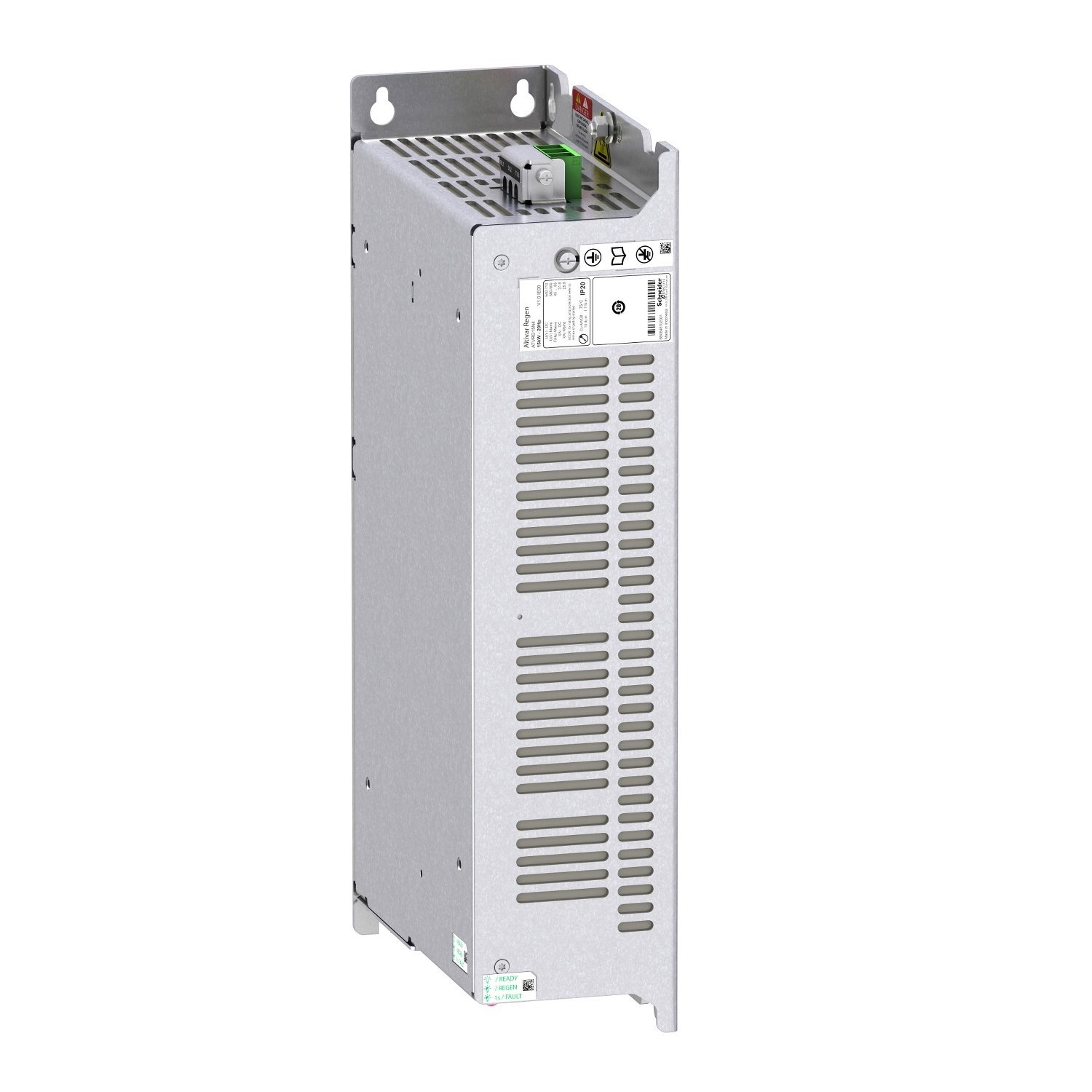

Regenerative unit – 15 kW – for Altivar variable speed drive
Manufacturer: Schneider Electric
Part Number: ATVRD15N4
EAN: 3606481144225
Key Specifications
| Range of product | Altivar |
| [Us] rated supply voltage | 380…500 V – 15…10 % |
| [Ue] rated operational voltage | 456…778 V DC |
| Rated power in W | 13.5 kW |
| Network frequency | 45…65 Hz |
| Network number of phases | 3 phases |
| Maximum voltage drop at rated load | 3 % |
| Input current | 31.8 A at 380 V AC for voltage inputs (continuous) | 27.9 A at 500 V AC for voltage inputs (continuous) | 43.1 A at 380 V AC for voltage inputs (transient for 60 s) | 36.3 A at 500 V AC for voltage inputs (transient for 60 s) |
| Input power | 13.5 kW at 380…500 V AC for voltage inputs (continuous) | 20.3 kW at 380…500 V AC for voltage inputs (transient for 60 s) |
| Maximum DC bus voltage | 300…880 V DC |
| Output current | 25.9 A at 380 V AC (continuous) | 23.2 A at 500 V AC (continuous) | 36.5 A at 380 V AC (transient for 60 s) | 29.7 A at 500 V AC (transient for 60 s) |
| Net weight | 11.5 kg |
| Package 1 Weight | 13.565 kg |
| Package 2 Weight | 67.260 kg |
