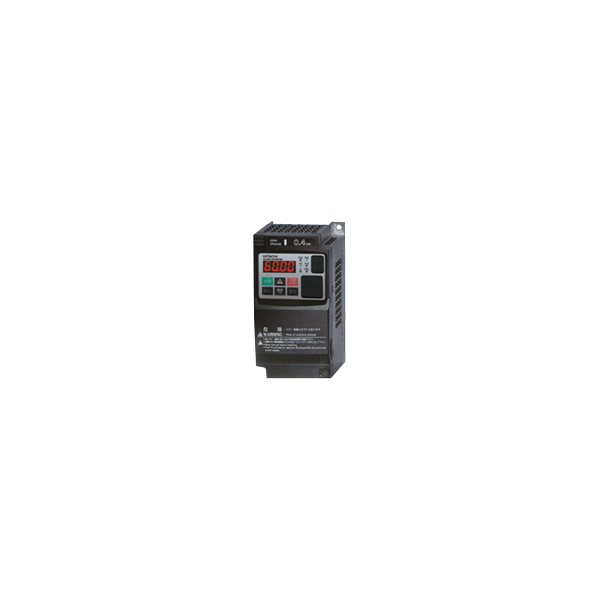

Hitachi WL200 frequency inverter compact series offers a range from 0,2 kW to 18,5 kW. It comes with Advanced V/f Control and enhanced funtionality in control, as well as programmable functions (EzSQ software). Furthermore Hitachi WL200 frequency inverter is environmental friendly through its energy saving function (RoHS compliant). Various Network communication options are offered for easy communication. WL200 series frequency inverters have enhanced functionality and provide accurate operation. Ideal for fan, pump and general purpose applications.
- Advanced V/f control
- Built-in PID
- Fire mode
- Programmable functions (EzSQ)
- Energy saving function
- Built-in RF filter class B
- Various Network communication options
- RoHS Compliance
- Dynamic braking transistor in all models
- Global standards CE, UL, c-UL und c-Tick
- Safe-Stop function
Specifications
| Manufacturer: | Hitachi |
| Series: | WL200 |
| Model: | WL200-030HFE |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 3 |
| Current, А: | 6.9 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 0,01-400 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 120 |
| Acceleration time, sec: | 0-3600 |
| Deceleration time, sec: | 0-3600 |
| EMC filter: | optional |
| Braking unit: | optional |
| Analog input: | 2 |
| Digital input: | 7 |
| Analog output: | 1 |
| Digital output: | 2 |
| Relay output: | 1 |
| RS485 (Modbus RTU): | RS485 (Modbus RTU), USB mini-B port, RJ45 port (EtherCAT, DeviceNet, PROFIBUS, PROFINET options) |
| PID: | PID control |
| V/f control mode: | + |
| Operation temperature, °С: | -10…..+40 |
| Storage temperature, °С: | -20…..+65 |
| Weight, kg: | 1,9 |
