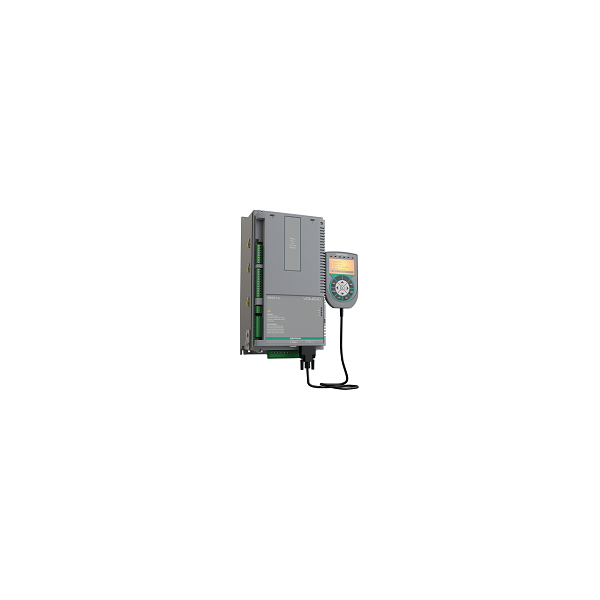

VDL200 AC Lift drive series for geared elevator systems. The VDL200 drive series is designed for low and medium rise geared applications in both open and closed loop with asynchronous motors. High-performance control algorithms allow installation in sensorless configuration while maintaining the comfort level provided by high-range inverters. Available with built-in I/O and encoder card for Plug & Play installation, make the VDL200 ideal for modernizing obsolete systems as well as for new installations. The drive conforms to amendment A3 in standard EN81 regarding Unintended Car Movement. The advanced control algorithm guarantees high level performance even in open loop. The Pre-torque function allows a smooth start.
- Integrated EMI Filter for EN 12015; EN 61800-3 2nd environment, category C2 and C3
-
Multispeed control -
Short Floor Management -
Emergency single-phase power supply for floor return with low energy optimization -
Flexible ramp management -
Integrated braking unit -
Communication with control board via I/O -
Management of TTL incremental digital encoders -
Option: External braking resistors -
Option: AC and DC input chokes -
Option: Dedicated external EMC filters (for version without integrated EMC Filter)
Specifications
| Manufacturer: | Gefran |
| Series: | VDL200 |
| Model: | VDL200-3185 |
| Application: | lifts |
| Capacity, kW: | 9 |
| Current, А: | 39 |
| Main power supply, V: | 230 |
| Phase: | 3 |
| Output frequency, Hz: | 0-300 |
| Enclosure: | IP20 |
| EMC filter: | Integrated EMI Filter, EMC filter option |
| Braking unit: | Integrated with external resistor |
| Analog input: | 1 |
| Digital input: | 8 |
| Analog output: | – |
| Digital output: | – |
| Relay output: | 4 |
| RS485 (Modbus RTU): | RS232 |
| Operation temperature, °С: | -10…..+45 |
| Dimensions (W x H x D), mm: | 235x401x179,5 |
| Weight, kg: | 10,5 |
