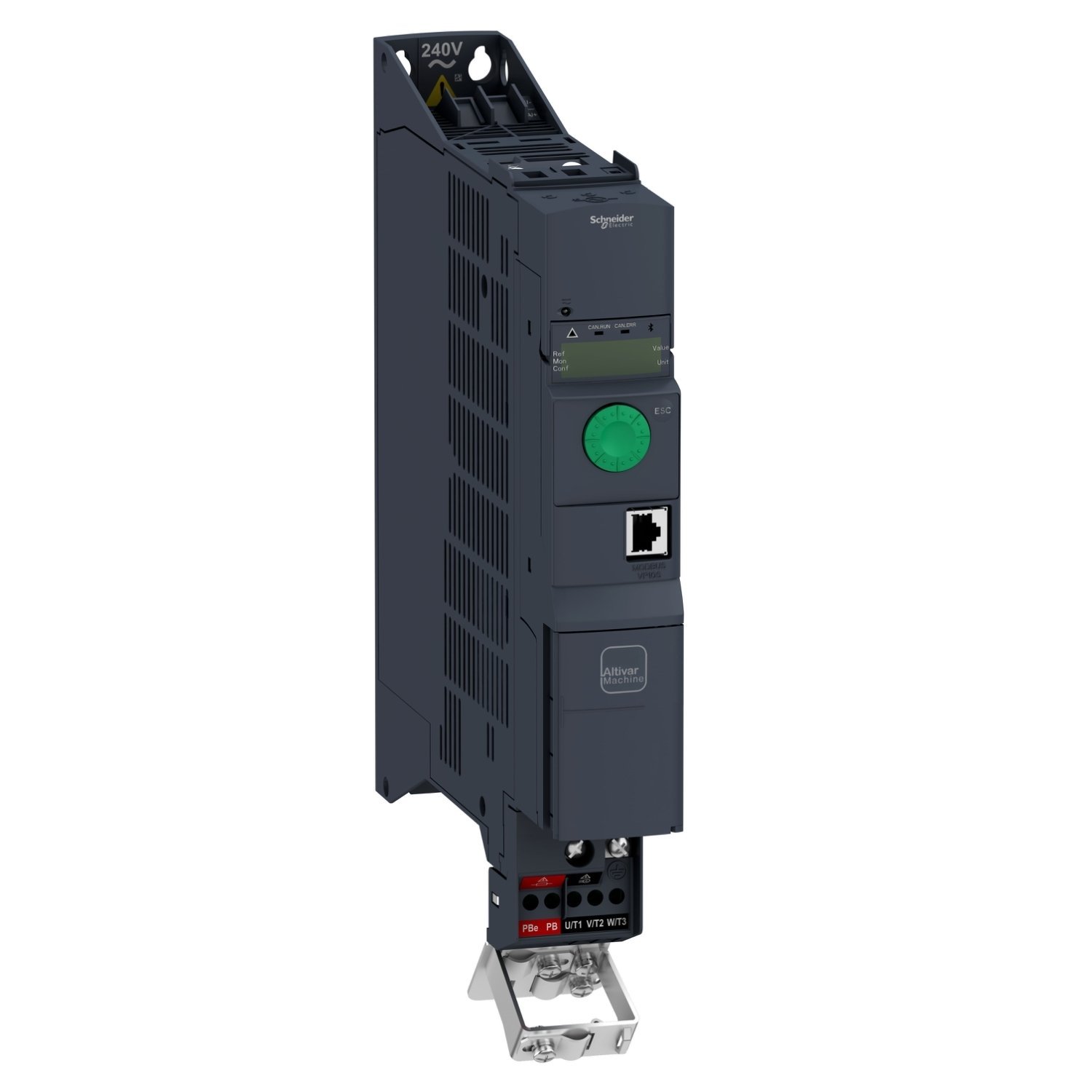

variable speed drive, ATV320, 0.75 kW, 380…500 V, 3 phases, book
Manufacturer: Schneider Electric
Part Number: ATV320U07N4B
EAN: 3606480966408
Key Specifications
| Range of product | Altivar Machine ATV320 |
| Mounting mode | Cabinet mount |
| [Us] rated supply voltage | 380…500 V – 15…10 % |
| nominal output current | 2.3 A |
| Motor power kW | 0.75 kW for heavy duty |
| Motor power hp | 1 hp |
| IP degree of protection | IP20 |
| Maximum switching current | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC | Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
| Maximum output frequency | 0.599 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 3.6 A at 380 V (heavy duty) | 2.7 A at 500 V (heavy duty) |
| Maximum input current | 3.6 A |
| Maximum output voltage | 500 V |
| Apparent power | 2.3 kVA at 500 V (heavy duty) |
| Network frequency | 50…60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Base load current at high overload | 3.0 A |
| Power dissipation in W | Fan: 31 W at 380 V, switching frequency 4 kHz |
| Net weight | 2.5 kg |
| Overvoltage category | III |
| Package 1 Weight | 2.346 kg |
| Package 2 Weight | 66.304 kg |
