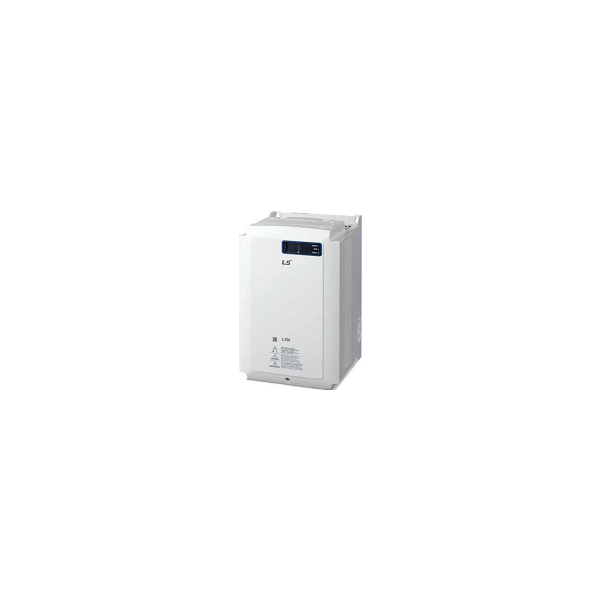

LS frequency inverter L100 series, the optimal solution for lifting applications. Optimized for elevators and load lifting operation, the LS ELECTRIC L100 series offers best-in-class performance. With size-optimized solutions for these applications, the L100 provides essential functions and options, which further enhance customer value. Along with performance enhancement, size was reduced by applying heat dissipation analysis and utilising a 3D design process.
- Premium high performance vector control
-
Available for various load conditions (control of both IM and PM -
Smooth and precise control by optimized control algorithm (voltage/speed/flux control) -
Fast installation by optimized autotuning (PM/IM standstill auto-tune, IM rotational auto-tune) and easy control gain tuning -
Load Cell-less & anti-rollback -
Battery operation function for emergency (power failure) -
Auto light load search -
Optimized multi step speed control for short floor operation pattern -
Elevator I/O support -
Anti-hunting regulator -
Built-in safety function and powerful anti-noise -
Status LED for operation monitoring -
Built-in dynamic brake circuit -
Removable terminal for easy maintenance -
Easy cooling fan replacement
Specifications
| Manufacturer: | LS |
| Series: | L100 |
| Model: | LSLV0075L100-4NNFN |
| Application: | lifts |
| Capacity, kW: | 7.5 |
| Current, А: | 16 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Enclosure: | IP00 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0-600 |
| Deceleration time, sec: | 0-600 |
| EMC filter: | + |
| Analog input: | 2 |
| Analog output: | 2 |
| V/f control mode: | + |
| Operation temperature, °С: | -10…..+40 |
| Dimensions (W x H x D), mm: | 160x232x181 |
| Weight, kg: | 3,4 |
