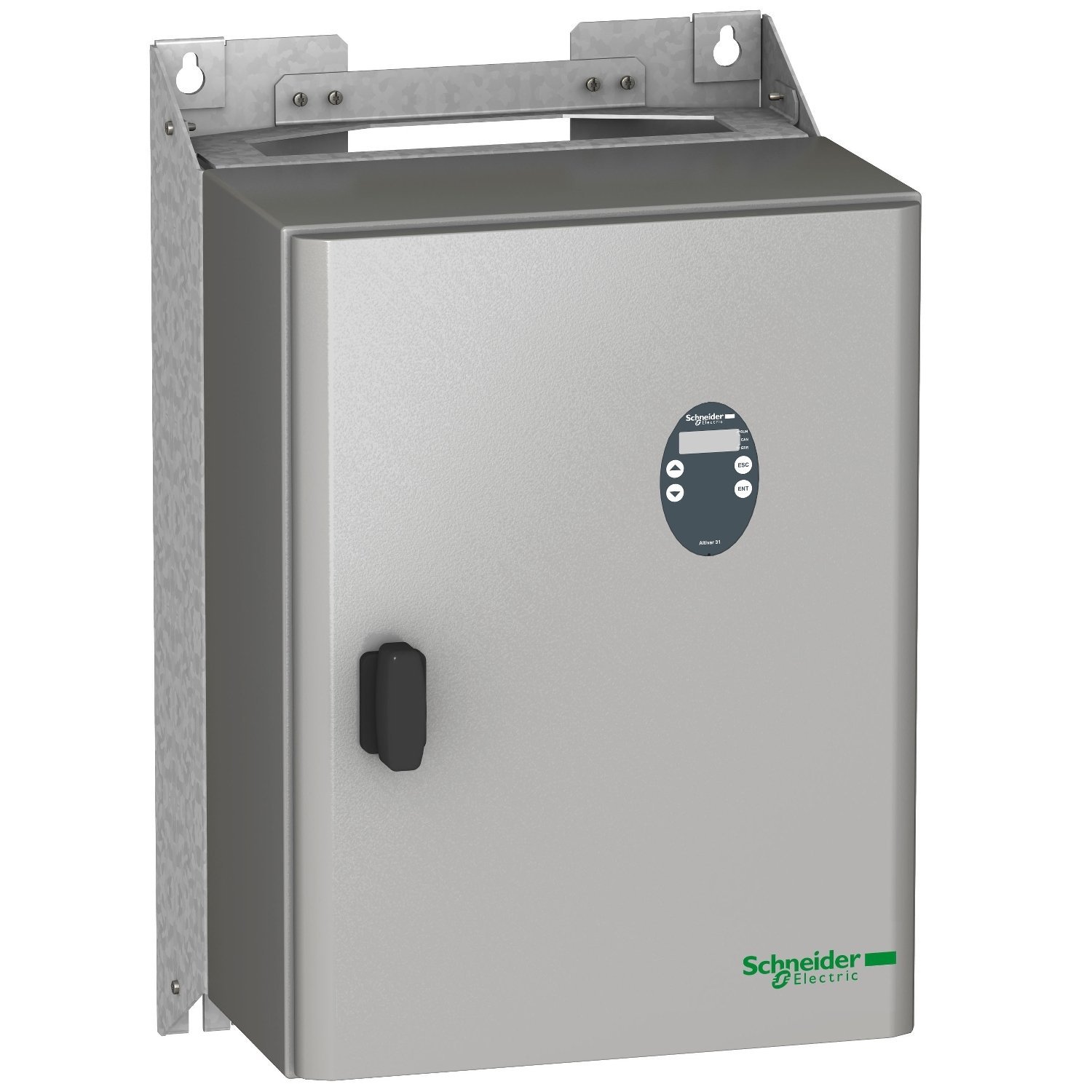

enclosed variable speed drive ATV31 – 0.55 kW – 200..240 V 1-phase supply
Manufacturer: Telemecanique
Part Number: ATV31C055M2T
EAN: 3389118033726
Key Specifications
| Range of product | Altivar 31 |
| power supply voltage | 200…240 V – 15…10 % |
| power supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | Single phase |
| Motor power kW | 0.55 kW |
| Motor power hp | 0.75 hp |
| Line current | 5.8 A 240 V 1 kA | 6.8 A 200 V 1 kA |
| Apparent power | 1.4 kVA |
| Nominal output current | 3.7 A 4 kHz |
| Maximum transient current | 5.6 A for 60 s |
| Power dissipation in W | 46 W at nominal load |
| IP degree of protection | IP55 |
| power supply voltage limit | 170…264 V |
| power supply frequency limits | 47.5…63 Hz |
| Speed drive output frequency | 0.5…500 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Minimum switching current | 10 mA 5 V DC R1-R2 |
| Maximum switching current | 2 A at 250 V AC on inductive load – cos phi = 0.4 – L/R = 7 ms (R1-R2) | 2 A at 30 V DC on inductive load – cos phi = 0.4 – L/R = 7 ms (R1-R2) | 5 A at 250 V AC on resistive load – cos phi = 1 – L/R = 0 ms (R1-R2) | 5 A at 30 V DC on resistive load – cos phi = 1 – L/R = 0 ms (R1-R2) |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.1…100 Hz |
| Net weight | 6.3 kg |
