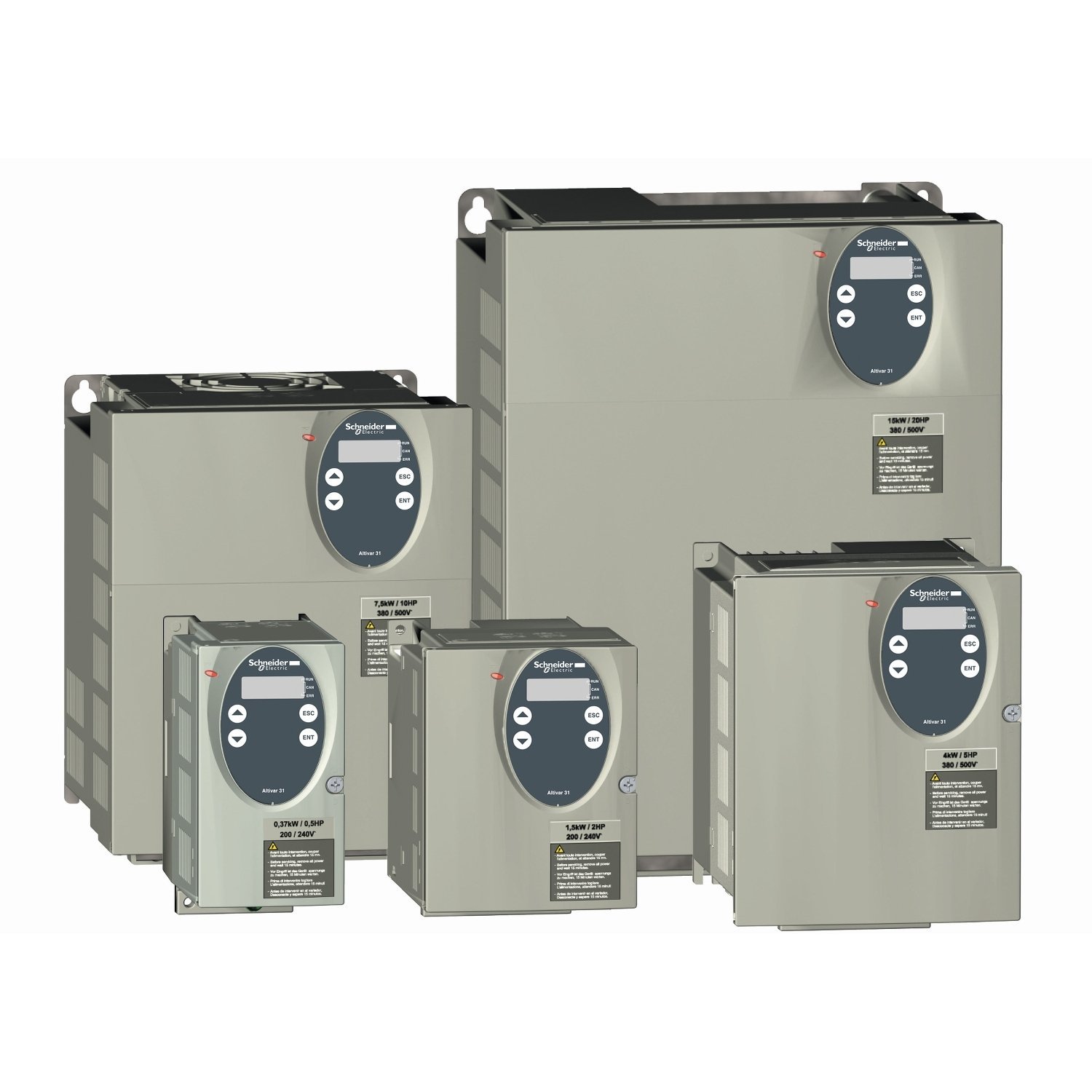

variable speed drive ATV31 – 1.1 kW – 200..240 V – 1 phase supply- wire guiding
Manufacturer: Telemecanique
Part Number: ATV31KU11M2T
EAN: 3389118032798
Key Specifications
| Range of product | Altivar |
| [Us] rated supply voltage | 200…240 V |
| Network number of phases | Single phase |
| Motor power kW | 1.1 kW <= 4 kHz |
| Motor power hp | 1.5 hp <= 4 kHz |
| Line current | 10.2 A at 240 V | 12.1 A at 200 V |
| Nominal output current | 6.9 A 4 kHz |
| Maximum transient current | 10.4 A for 60 s |
| Power dissipation in W | 74 W at nominal load |
| Supply frequency | 50…60 Hz |
| Apparent power | 2.4 kVA |
| Speed drive output frequency | 0.5…500 Hz |
| Switching frequency | 2…16 kHz adjustable |
| Supply voltage limits | 170…264 V |
| Network frequency limits | 47.5…63 Hz |
| Output voltage | <= supply voltage |
| Minimum switching current | 10 mA at 5 V DC for configurable relay logic |
| Maximum switching current | 5000 mA 250 V AC resistive 1 configurable relay logic | 5000 mA 30 V DC resistive 1 configurable relay logic | 2000 mA 250 V AC inductive 0.4 7 ms configurable relay logic | 2000 mA 30 V DC inductive 0.4 7 ms configurable relay logic |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.1…100 Hz |
| Net weight | 8.8 kg |
