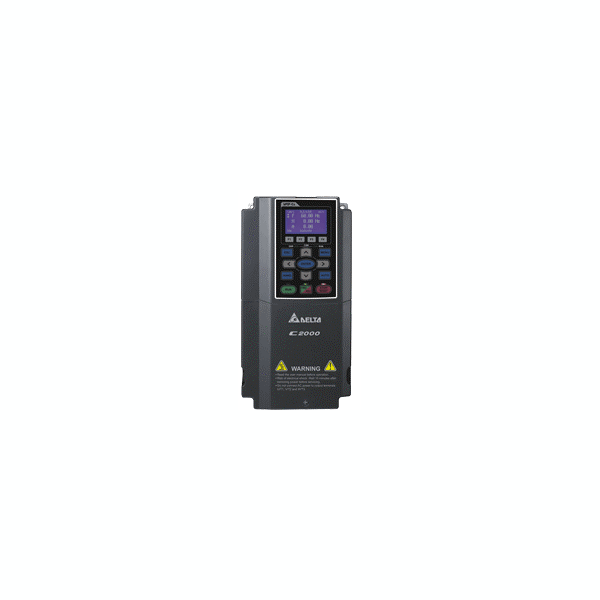

The Delta Electronics VFD-C2000 frequency inverter series is a high-level field oriented control AC motor drive with a high-performance variable-frequency technology, FOC control. It features versatile driving controls, modular design, wide variety of applications, easy maintenance, low malfunction rate, self diagnosis and competitive market price. It brings customers not only the high-efficiency construction but also the most economic solution to compete with the global market. Applications: crane and printing machines.
- Speed/torque/position control mode, dual rating design (Normal duty/heavy duty)
- Outstanding 4-quadrant torque control/limit
- 2 in 1 (induction motor and synchronous motor)
- Built-in Delta PLC function, safe stop function and brake unit
- Support of various network protocols
- Synchronous position control
- Long-life design and life detection of important components
- Enhanced protections and adaptation to ambient conditions
- Complies with global safety standards, including CE, UL and cUL
- Modular design for easy maintenance and many extensions
- High-speed communication interface with built-in CANopen and MODBUS communication (optional cards for PROFIBUS-DP, DeviceNet, MODBUS TCP and EtherNet/IP)
Specifications
| Manufacturer: | Delta Electronics |
| Series: | VFD-C |
| Model: | VFD110C43A |
| Application: | pumps / fans / lifts / cranes / general purpose |
| Capacity, kW: | 11 |
| Current, А: | 23 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 300 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0-6000 |
| Deceleration time, sec: | 0-6000 |
| EMC filter: | + |
| Braking unit: | built-in |
| Analog input: | 4 |
| Digital input: | 11 |
| Analog output: | 2 |
| Digital output: | optocoupler – 3 |
| Relay output: | 6 |
| RS485 (Modbus RTU): | + |
| Starting torque: | 150% or higher |
| PID: | PID – regulation |
| V/f control mode: | + |
| Vector control with feedback: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10……+50 |
| Storage temperature, °С: | -25……+70 |
| Dimensions (W x H x D), mm: | 190x320x190 |
