Altivar Process is a Services Oriented Drive designed to reduce OPEX in Process & Utilities installations, thanks to embedded EcoStruxure Machine Advisor. ATV900 is a range of ready-to-order drives and custom engineered drives focused on maximum productivity, with exceptional motor control and connectivity capabilities. This new concept in drives meets the major needs of energy intensive process and utilities in terms of equipment efficiency and Total Cost of Ownership by supporting energy management, asset management and also the overall performance of the process.
- Embedded Power measurement and Energy dashboard
-
Embedded process monitoring and control -
Low Harmonics (THDi < 48% at 80% load or THDi < 5% with low harmonic offer) -
Stop and Go function to reduce energy consumption in standby mode -
Asset monitoring and protection -
Drift monitoring -
Easy maintenance via a Dynamic QR-Code -
Seamless integration with embedded Ethernet -
Applications: electrical submersible pumps, progressive cavity pumps, rod pumps, mud pumps, rotary table/ top drive, draw works and regasification compressors and refinery fans
Specifications
| Manufacturer: | Schneider Electric |
| Series: | ATV900 |

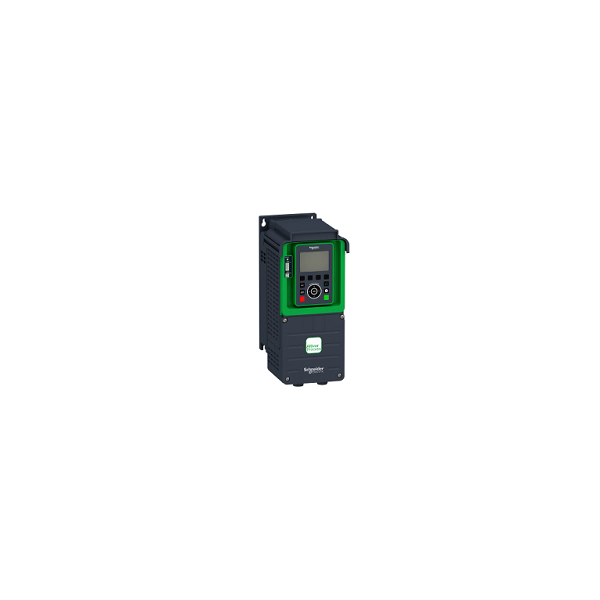

| Model: | ATV930U15M3 |
| Application: | pumps / fans |
| Capacity, kW: | 1,5 |
| Current, А: | 8 |
| Main power supply, V: | 200-240 |
| Phase: | 3 |
| Output frequency, Hz: | 0,1-599 |
| Enclosure: | IP21 |
| Overload capacity, % per 1 min.: | 180 |
| Acceleration time, sec: | 0,01-9999 |
| Deceleration time, sec: | 0,01-9999 |
| EMC filter: | – |
| Braking unit: | + |
| Analog input: | 3 |
| Digital input: | 10 |
| Analog output: | 2 |
| Digital output: | 2 |
| Relay output: | 3 |
| RS485 (Modbus RTU): | + |
| V/f control mode: | + |
| Vector control with feedback: | + |
| Sensorless vector control: | – |
| Operation temperature, °С: | -15…..+50 |
| Storage temperature, °С: | -40…..+70 |
| Dimensions (W x H x D), mm: | 144x350x206 |
| Weight, kg: | 4,3 |
