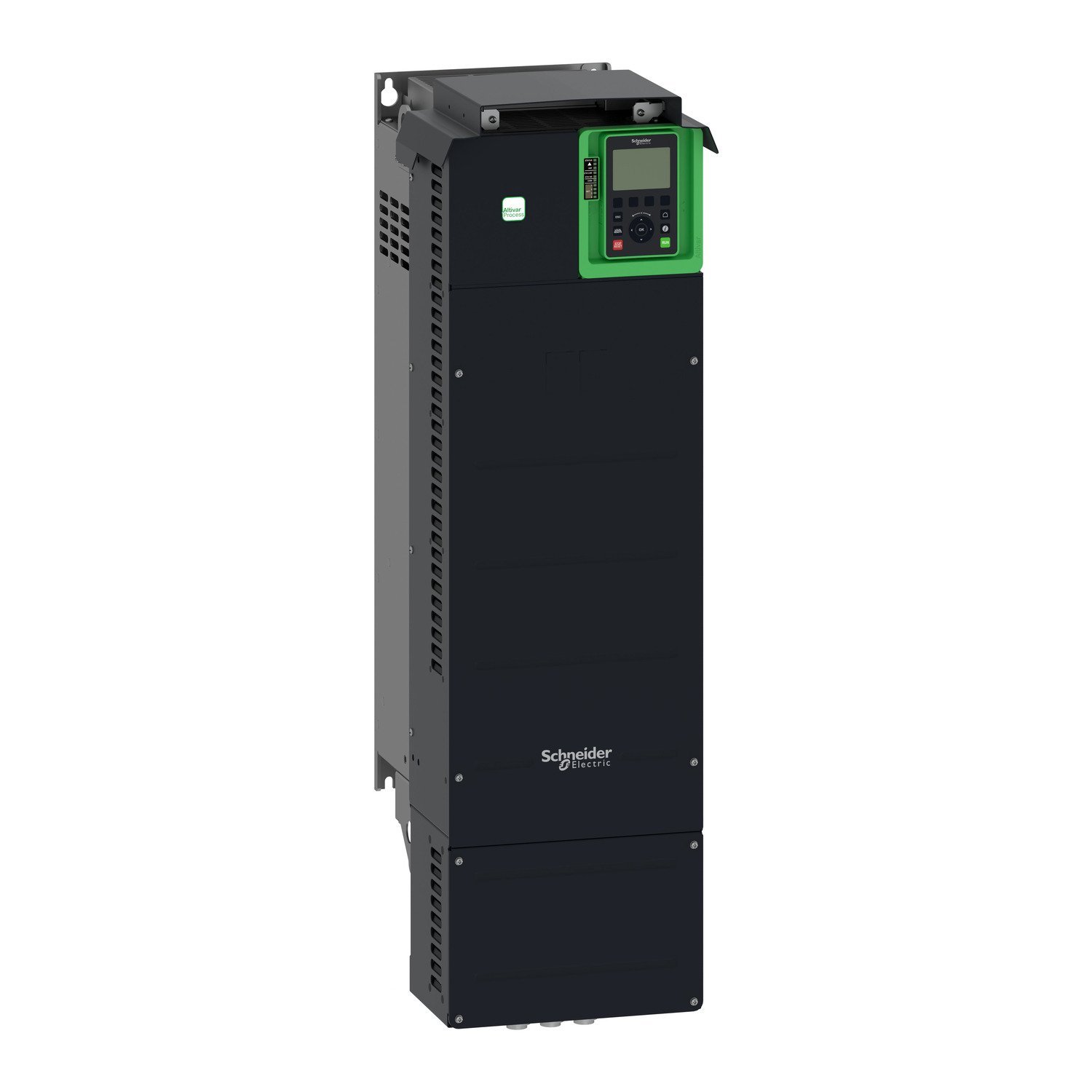

variable speed drive ATV630 – 55kW/75HP – 380…480V – IP21/UL type 1
Manufacturer: Schneider Electric
Part Number: ATV630D55N4
EAN: 3606480701443
Key Specifications
| Range of product | Altivar Process ATV600 |
| Mounting mode | Wall mount |
| [Us] rated supply voltage | 380…480 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Relative symmetric network frequency tolerance | 5 % |
| nominal output current | 106.0 A |
| IP degree of protection | IP21 conforming to IEC 61800-5-1 | IP21 conforming to IEC 60529 |
| Supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 55 kW (normal duty) | 45 kW (heavy duty) |
| Motor power hp | 75 hp normal duty | 60 hp heavy duty |
| Line current | 97.2 A at 380 V (normal duty) | 84.2 A at 480 V (normal duty) | 81.4 A at 380 V (heavy duty) | 71.8 A at 480 V (heavy duty) |
| Continuous output current | 106 A at 2.5 kHz for normal duty | 88 A at 2.5 kHz for heavy duty |
| Speed drive output frequency | 0.1…500 Hz |
| Maximum switching current | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Network number of phases | 3 phases |
| Output voltage | <= power supply voltage |
| Permissible temporary current boost | 1.1 x In during 60 s (normal duty) | 1.5 x In during 60 s (heavy duty) |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Power range | 55…100 kW at 380…440 V 3 phases | 55…100 kW at 480…500 V 3 phases |
| Enclosure mounting | Wall mounted |
| Maximum output frequency | 500 kHz |
| Switching frequency | 2.5…8 kHz with derating factor | 2…8 kHz adjustable |
| Nominal switching frequency | 2.5 kHz |
| Maximum input current | 97.2 A |
| Maximum output voltage | 480.0 V |
| Apparent power | 70 kVA at 480 V (normal duty) | 59.7 kVA at 480 V (heavy duty) |
| Maximum transient current | 116.6 A during 60 s (normal duty) | 132 A during 60 s (heavy duty) |
| Network frequency | 50…60 Hz |
| Base load current at high overload | 88.0 A |
| Base load current at low overload | 106.0 A |
| Power dissipation in W | Natural convection: 131 W at 380 V, switching frequency 2.5 kHz | Forced convection: 917 W at 380 V, switching frequency 2.5 kHz |
| Net weight | 56.5 kg |
| Overvoltage category | III |
| Package 1 Weight | 64.0 kg |
