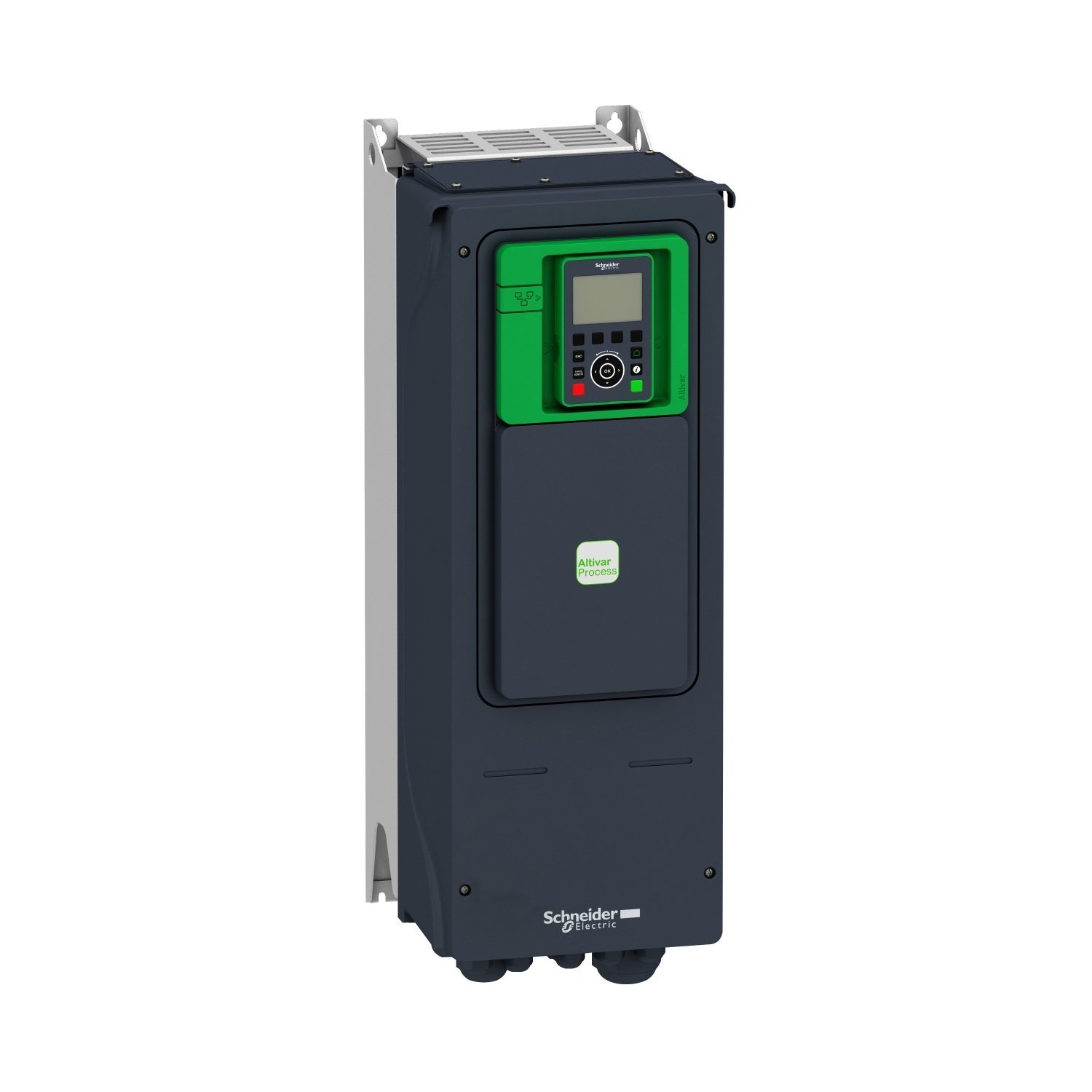

variable speed drive ATV650 – 2.2kW/3HP – 380…480V – IP55
Manufacturer: Schneider Electric
Part Number: ATV650U22N4
EAN: 3606485410456
Key Specifications
| Range of product | Altivar Process ATV600 |
| Mounting mode | Wall mount |
| [Us] rated supply voltage | 380…480 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Relative symmetric network frequency tolerance | 5 % |
| nominal output current | 5.6 A |
| IP degree of protection | IP55 conforming to IEC 60529 | IP55 conforming to IEC 61800-5-1 |
| Supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 1.5 kW (heavy duty) | 2.2 kW (normal duty) |
| Motor power hp | 2 hp heavy duty | 3 hp normal duty |
| Line current | 2.6 A at 480 V (normal duty) | 1.7 A at 380 V (heavy duty) | 1.5 A at 480 V (heavy duty) | 4.3 A at 380 V (normal duty) |
| Continuous output current | 2.2 A at 4 kHz for heavy duty | 5.6 A at 4 kHz for normal duty |
| Speed drive output frequency | 0.1…500 Hz |
| Maximum switching current | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Network number of phases | 3 phases |
| Output voltage | <= power supply voltage |
| Permissible temporary current boost | 1.5 x In during 60 s (heavy duty) | 1.1 x In during 60 s (normal duty) |
| Frequency resolution | Analog input: 0.012/50 Hz | Display unit: 0.1 Hz |
| Power range | 2.2…3 kW at 380…440 V 3 phases |
| Enclosure mounting | Wall mounted |
| Maximum output frequency | 500 kHz |
| Switching frequency | 4…12 kHz with derating factor | 2…12 kHz adjustable |
| Nominal switching frequency | 4 kHz |
| Maximum input current | 4.3 A |
| Maximum output voltage | 480.0 V |
| Apparent power | 1.2 kVA at 480 V (heavy duty) | 3.2 kVA at 480 V (normal duty) |
| Maximum transient current | 3.3 A during 60 s (heavy duty) | 6 A during 60 s (heavy duty) |
| Network frequency | 50…60 Hz |
| Base load current at high overload | 4.0 A |
| Base load current at low overload | 5.6 A |
| Net weight | 10.5 kg |
| Overvoltage category | III |
| Package 1 Weight | 30.000 kg |
