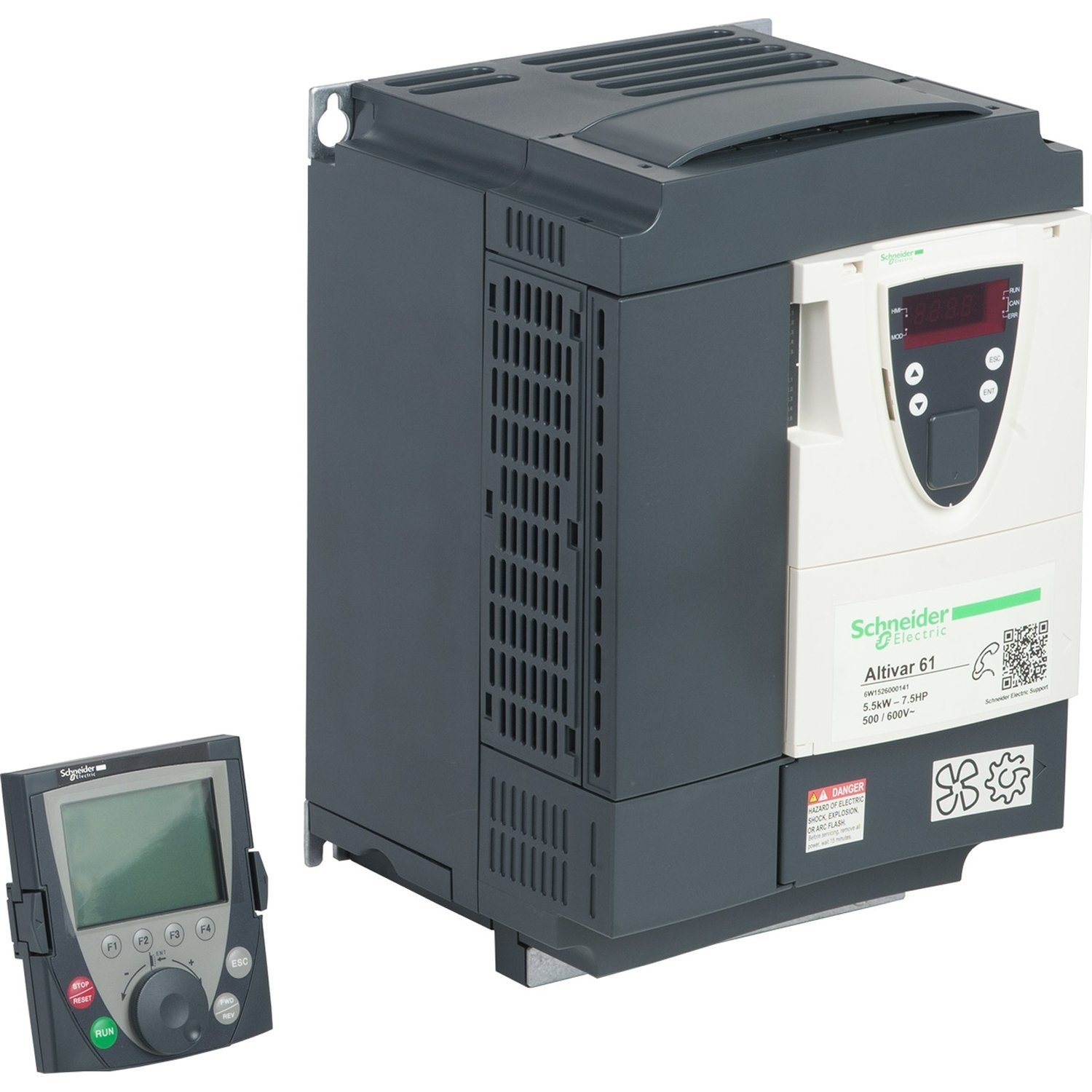

variable speed drive ATV61 – 5.5 kW / 500V – 7.5 HP / 600V – IP20
Manufacturer: Schneider Electric
Part Number: ATV61HU55S6X
Key Specifications
| Range of Product | Altivar 61 |
| Motor power kW | 5.5 kW, 3 phase 500 V |
| Maximum Horse Power Rating | 7.5 hp, 3 phase 575 V |
| power supply voltage | 500…600 V – 15…10 % |
| supply number of phases | 3 phase |
| Line current | 16.4 A 500 V 3 phase 5.5 kW / 7.5 hp | 14.2 A 600 V 3 phase 5.5 kW / 7.5 hp |
| Maximum transient current | 12 A 60 s, 3 phase |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2.5…6 kHz adjustable | 4…6 kHz with derating factor |
| power supply voltage limits | 425…660 V |
| power supply frequency | 50…60 Hz – 5…5 % |
| power supply frequency limits | 47.5…63 Hz |
| Continuous output current | 10 A 4 kHz, 500 V – 3 phase | 9 A 4 kHz, 575 V – 3 phase |
| Output frequency | 0.1…599 Hz |
| Output voltage | <= power supply voltage |
| type of cable for mounting in an enclosure | With an IP21 or an IP31 kit 3 IEC cable 104 °F (40 °C), copper 70 °C / PVC | With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC | Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC | Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR |
| Minimum switching current | 3 mA 24 V DC configurable relay logic |
| Maximum switching current | R1, R2 2 A 250 V AC inductive, cos phi = 0.4 7 ms | R1, R2 2 A 30 V DC inductive, cos phi = 0.4 7 ms | R1, R2 5 A 250 V AC resistive, cos phi = 1 0 ms | R1, R2 5 A 30 V DC resistive, cos phi = 1 0 ms |
| Frequency resolution | Analog input 0.024/50 Hz | Display unit 0.1 Hz |
| Net Weight | 17.6 lb(US) (8 kg) |
| Package weight(Lbs) | 20.712 lb(US) (9.395 kg) |
