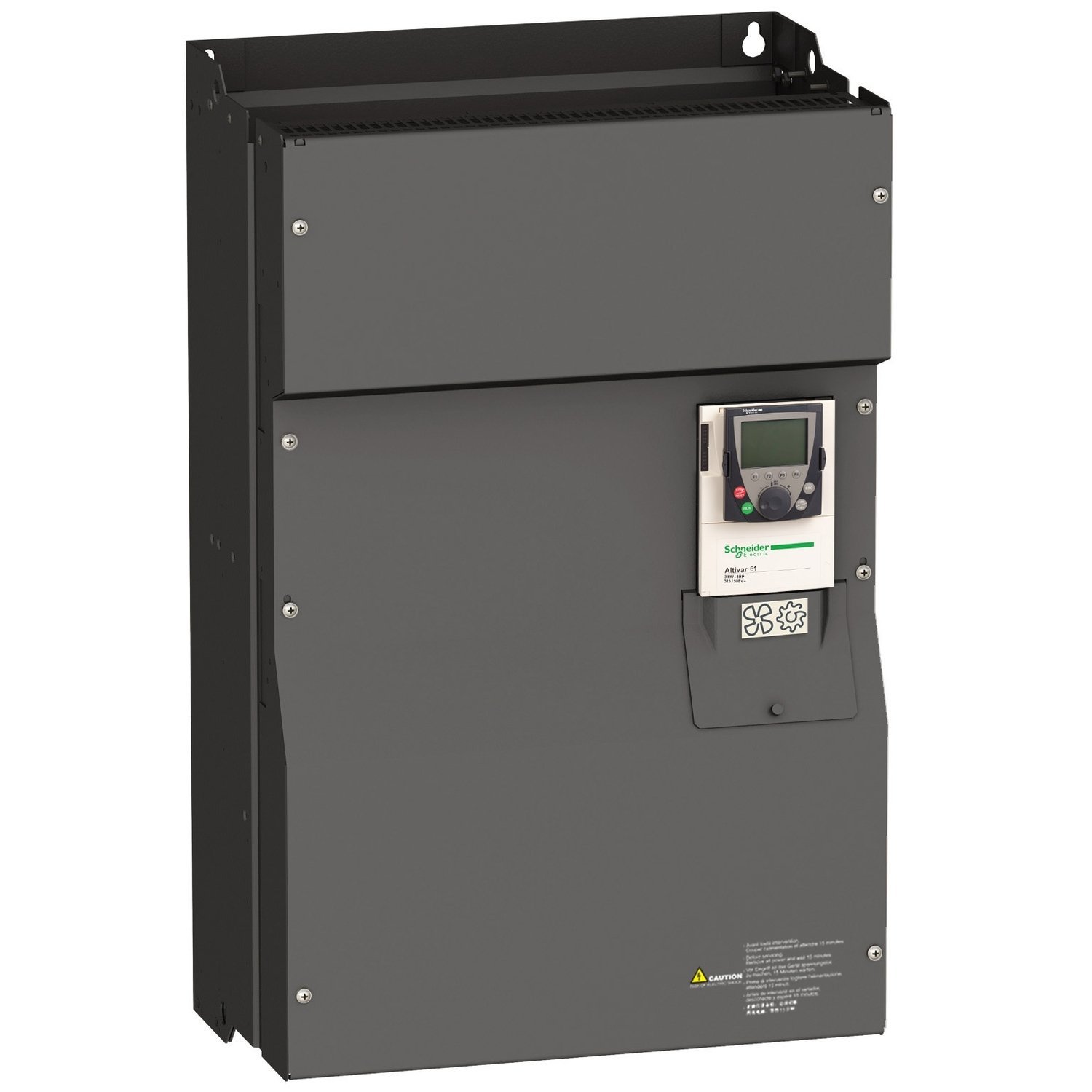

ATV61 690V 500kW WITHOUT TRANSFORMER speed
Manufacturer: Schneider Electric
Part Number: ATV61HC50YT
Key Specifications
| Range of Product | Altivar 61 |
| Motor power kW | 400 kW, 3 phase 500 V | 500 kW, 3 phase 690 V |
| Maximum Horse Power Rating | 550 hp, 3 phase 575 V |
| power supply voltage | 500…690 V – 15…10 % |
| supply number of phases | 3 phase |
| Line current | 494 A 600 V 3 phase 400 kW / 550 hp | 505 A 690 V 3 phase 400 kW / 550 hp | 547 A 500 V 3 phase 400 kW / 550 hp |
| Maximum transient current | 708 A 60 s, 3 phase |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2.5…4.9 kHz adjustable | 2.5…4.9 kHz with derating factor |
| power supply voltage limits | 425…759 V |
| power supply frequency | 50…60 Hz – 5…5 % |
| power supply frequency limits | 47.5…63 Hz |
| Continuous output current | 528 A 2.5 kHz, 575 V – 3 phase | 543 A 2.5 kHz, 690 V – 3 phase | 590 A 2.5 kHz, 500 V – 3 phase |
| Output frequency | 0.1…500 Hz |
| Output voltage | <= power supply voltage |
| type of cable for mounting in an enclosure | With an IP21 or an IP31 kit 3 IEC cable 104 °F (40 °C), copper 70 °C / PVC | With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC | Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC | Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR |
| Minimum switching current | 3 mA 24 V DC configurable relay logic |
| Maximum switching current | R1, R2 2 A 250 V AC inductive, cos phi = 0.4 7 ms | R1, R2 2 A 30 V DC inductive, cos phi = 0.4 7 ms | R1, R2 5 A 250 V AC resistive, cos phi = 1 0 ms | R1, R2 5 A 30 V DC resistive, cos phi = 1 0 ms |
| Frequency resolution | Analog input 0.024/50 Hz | Display unit 0.1 Hz |
| Net Weight | 844.4 lb(US) (383 kg) |
| Package weight(Lbs) | 1047.2 lb(US) (475 kg) |
