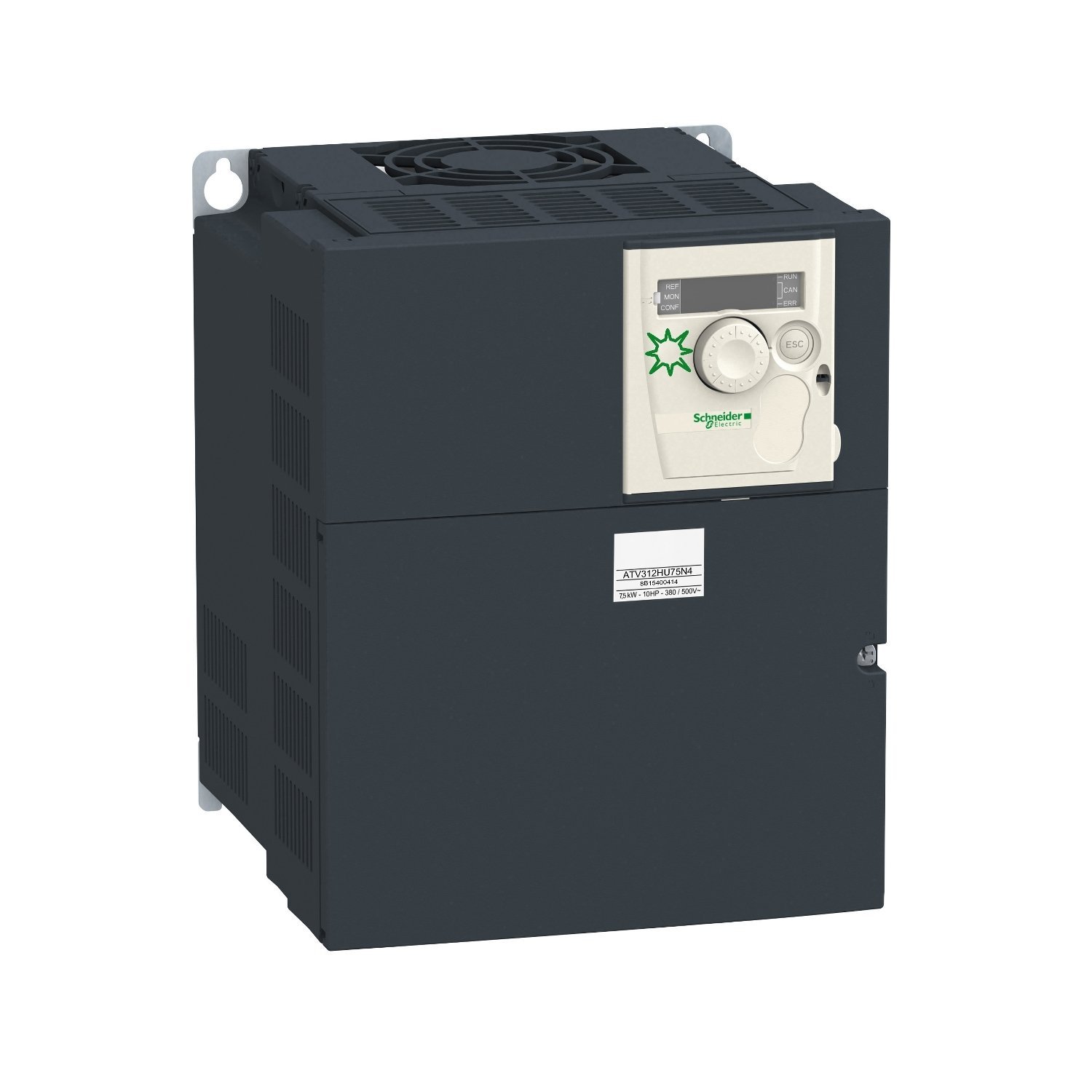

variable speed drive ATV312 – 7.5kW – 18kVA – 269W – 380..500 V- 3-phase supply
Manufacturer: Schneider Electric
Part Number: ATV312HU75N4412
Key Specifications
| Range of Product | Altivar 312 Solar |
| Motor power kW | 7.5 kW |
| Maximum Horse Power Rating | 10 hp |
| [Us] rated supply voltage | 380…500 V – 5…5 % |
| Supply voltage limits | 323…550 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network Frequency | 47.5…63 Hz |
| Phase | 3 phase |
| Line current | 27.7 A 380 V, Isc = 22 kA | 21 A 500 V |
| Apparent power | 18 kVA |
| Continuous output current | 17 A 4 kHz |
| Maximum transient current | 25.5 A 60 s |
| Power dissipation in W | 269 W at nominal load |
| Speed drive output frequency | 0.5…500 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Minimum switching current | R1-R2 10 mA 5 V DC |
| Maximum switching current | 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms R1-R2) | 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms R1-R2) | 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms R1-R2) | 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms R1-R2) |
| Frequency resolution | Analog input 0.1…100 Hz | Display unit 0.1 Hz |
| Net Weight | 14.3 lb(US) (6.5 kg) |
| IP degree of protection | IP20 without cover plate |
| Package weight(Lbs) | 13.34 lb(US) (6.05 kg) |
