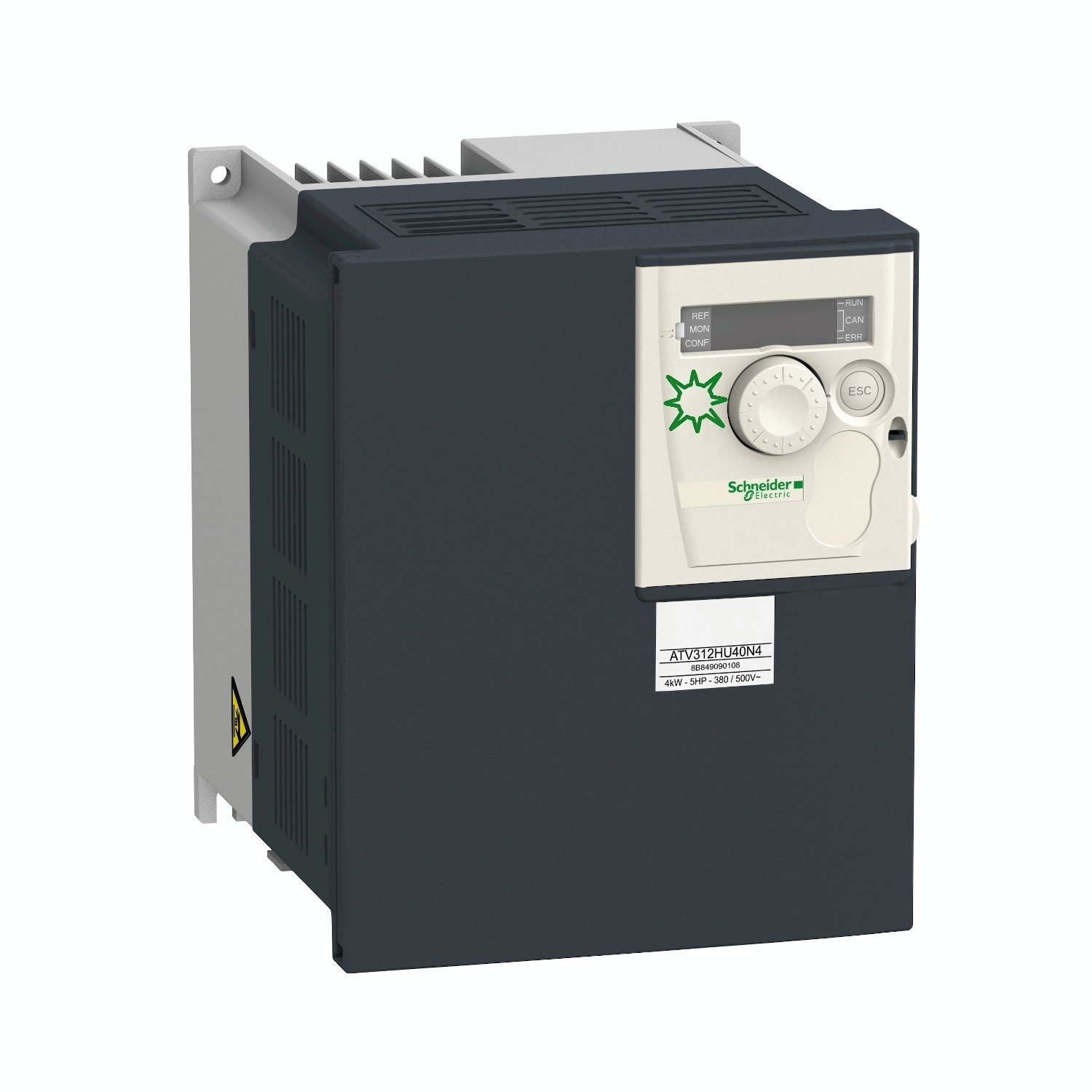

variable speed drive ATV312 – 2.2kW – 5.9kVA – 79W – 380..500 V- 3-phase supply
Manufacturer: Schneider Electric
Part Number: ATV312HU22N4412
Key Specifications
| Range of Product | Altivar 312 Solar |
| Motor power kW | 2.2 kW |
| Maximum Horse Power Rating | 3 hp |
| [Us] rated supply voltage | 380…500 V – 5…5 % |
| Supply voltage limits | 323…550 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network Frequency | 47.5…63 Hz |
| Phase | 3 phase |
| Line current | 6.7 A 500 V | 8.9 A 380 V, Isc = 1 kA |
| Apparent power | 5.9 kVA |
| Continuous output current | 5.5 A 4 kHz |
| Maximum transient current | 8.3 A 60 s |
| Power dissipation in W | 79 W at nominal load |
| Speed drive output frequency | 0.5…500 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Minimum switching current | R1-R2 10 mA 5 V DC |
| Maximum switching current | 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms R1-R2) | 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms R1-R2) | 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms R1-R2) | 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms R1-R2) |
| Frequency resolution | Analog input 0.1…100 Hz | Display unit 0.1 Hz |
| Net Weight | 6.8 lb(US) (3.1 kg) |
| IP degree of protection | IP20 without cover plate |
| Package weight(Lbs) | 6.6 lb(US) (3.0 kg) |
