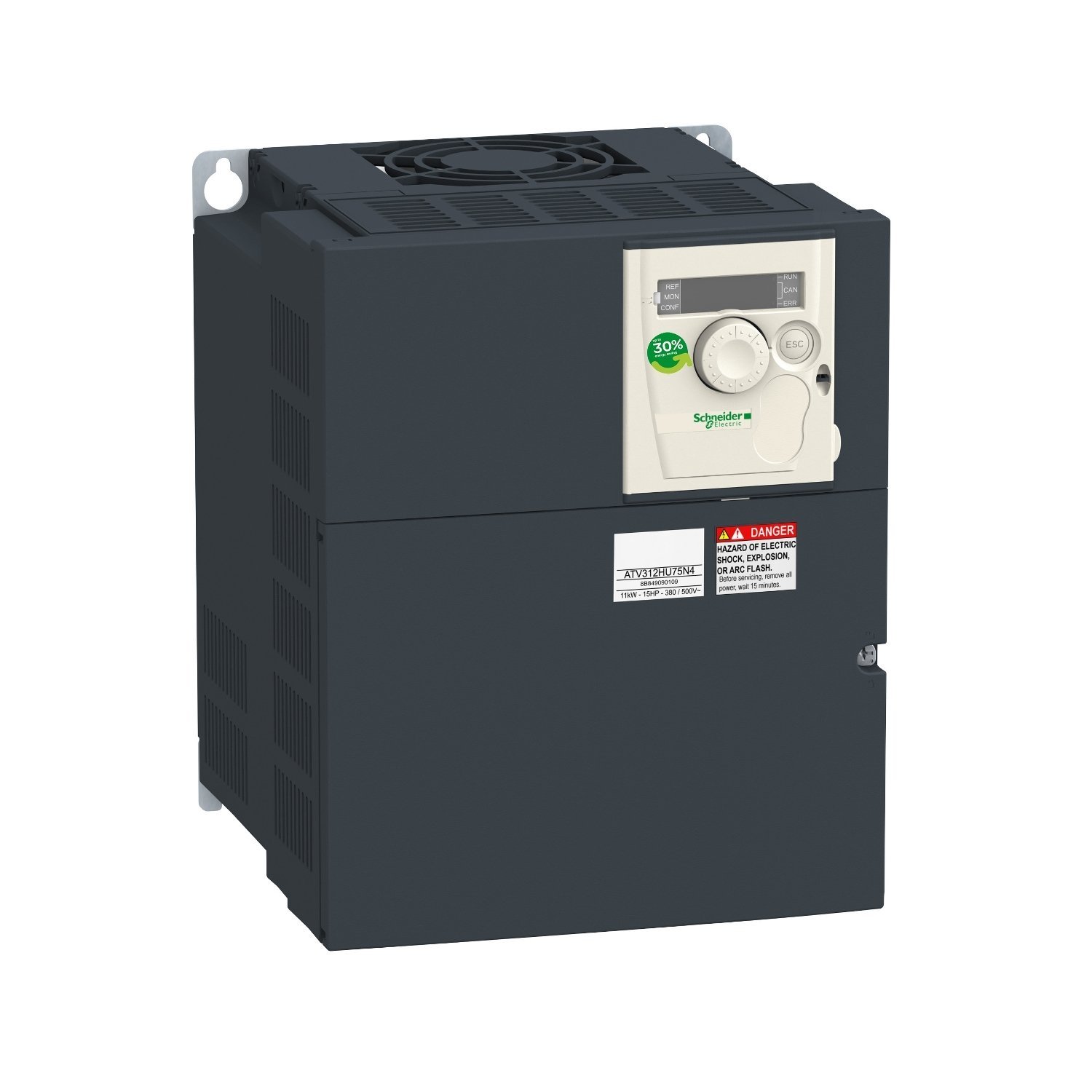

Variable speed drive, ATV312, 7.5kW, 10hp, 323..550V, 3 phase supply, 17A, CANopen, Modbus
Manufacturer: Schneider Electric
Part Number: ATV312HU75N4
EAN: 3606480077692
Key Specifications
| Motor power kW | 7.5 kW |
| Motor power hp | 10 hp |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | 3 phases |
| Line current | 27.7 A at 380 V, Isc = 22 kA | 21 A at 500 V |
| Apparent power | 18 kVA |
| Maximum transient current | 25.5 A for 60 s |
| Power dissipation in W | 269 W at nominal load |
| IP degree of protection | IP20 on upper part without cover plate | IP21 on connection terminals | IP31 on upper part | IP41 on upper part |
| Range of product | Altivar 312 |
| [Us] rated supply voltage | 380…500 V – 15…10 % |
| Supply voltage limits | 323…550 V |
| Continuous output current | 17 A at 4 kHz |
| Output frequency | 0…500 Hz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Minimum switching current | R1-R2 10 mA at 5 V DC |
| Maximum switching current | R1-R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms | R1-R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms | R1-R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms | R1-R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms |
| Frequency resolution | Analog input: 0.1…100 Hz | Display unit: 0.1 Hz |
| Nominal switching frequency | 4 kHz |
| Network frequency | 47.5…63 Hz |
| Net weight | 6.5 kg |
| Package 1 Weight | 6.1 kg |
| Package 2 Weight | 13.37 kg |
| Package 3 Weight | 117 kg |
