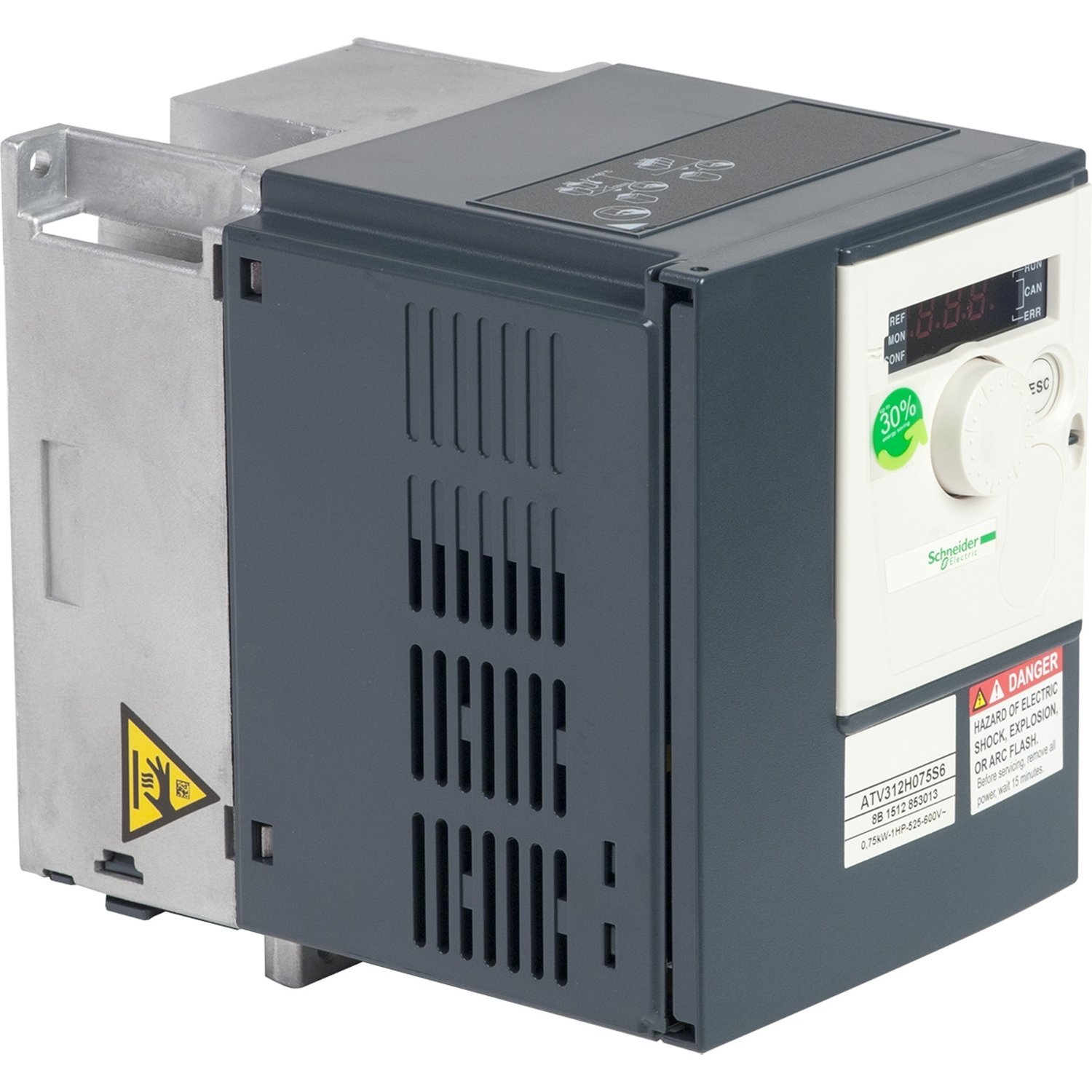

variable speed drive ATV312 – 0.75kW – 2.5kVA – 36W – 525..600 V- 3-phase supply
Manufacturer: Schneider Electric
Part Number: ATV312H075S6
EAN: 3606480077739
Key Specifications
| Motor power kW | 0.75 kW |
| Motor power hp | 1 hp |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | 3 phases |
| Line current | 2.8 A at 525 V, Isc = 5 kA | 2.4 A at 600 V |
| Apparent power | 2.5 kVA |
| Maximum transient current | 2.6 A for 60 s |
| Power dissipation in W | 36 W at nominal load |
| IP degree of protection | IP20 on upper part without cover plate | IP21 on connection terminals | IP31 on upper part | IP41 on upper part |
| Range of product | Altivar 312 |
| [Us] rated supply voltage | 525…600 V – 15…10 % |
| Supply voltage limits | 446.25…660 V |
| Continuous output current | 1.7 A at 4 kHz |
| Output frequency | 0…500 Hz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Minimum switching current | R1-R2 10 mA at 5 V DC |
| Maximum switching current | R1-R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms | R1-R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms | R1-R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms | R1-R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms |
| Frequency resolution | Analog input: 0.1…100 Hz | Display unit: 0.1 Hz |
| Nominal switching frequency | 4 kHz |
| Network frequency | 47.5…63 Hz |
| Net weight | 1.7 kg |
