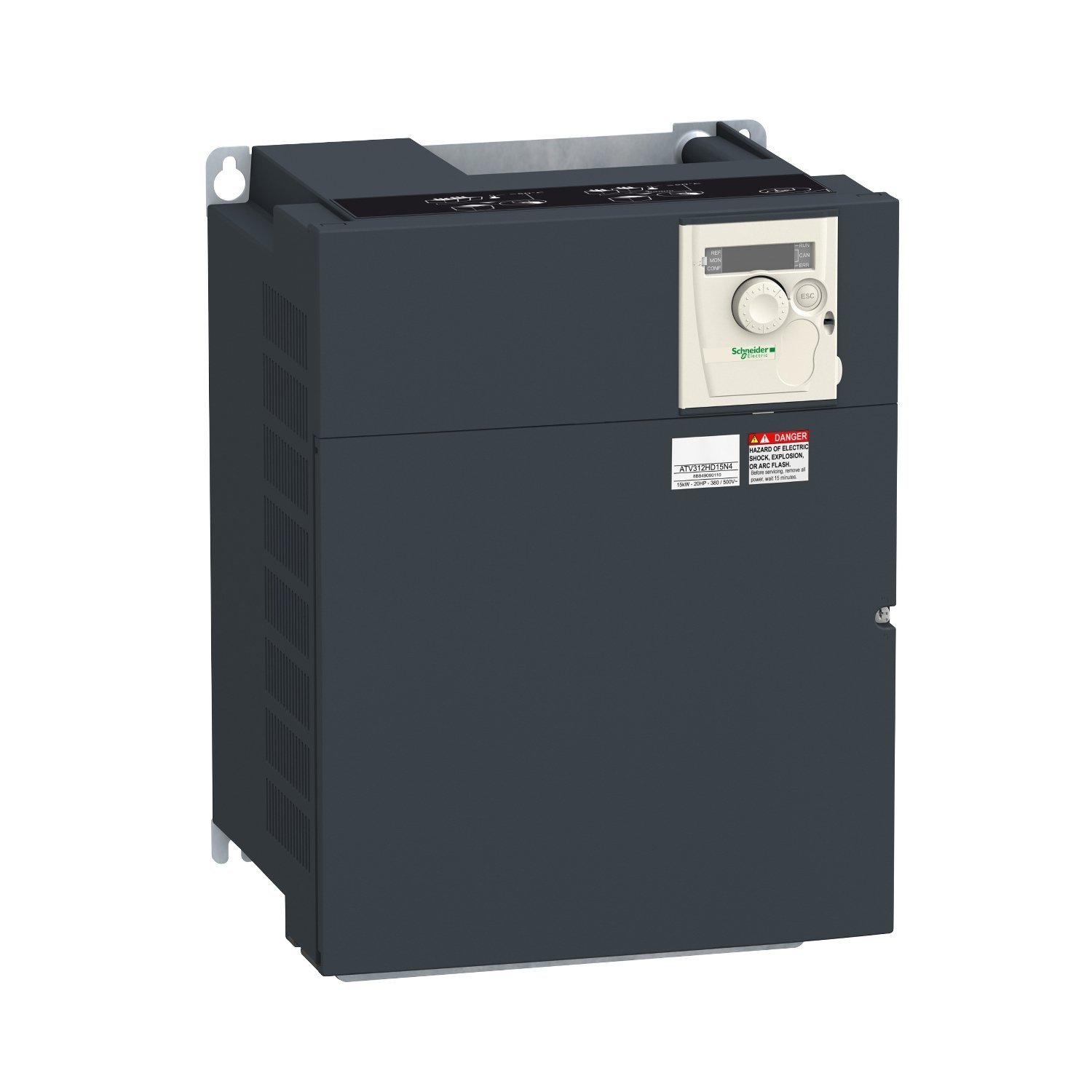

Variable speed drive, ATV312, 11kW, 15hp, 323..550V, 3 phase supply, 27.7A, CANopen, Modbus
Manufacturer: Schneider Electric
Part Number: ATV312HD11N4
EAN: 3606480077715
Key Specifications
| Motor power kW | 11 kW |
| Motor power hp | 15 hp |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | 3 phases |
| Line current | 37.2 A at 380 V, Isc = 22 kA | 28.4 A at 500 V |
| Apparent power | 25 kVA |
| Maximum transient current | 41.6 A for 60 s |
| Power dissipation in W | 397 W at nominal load |
| IP degree of protection | IP20 on upper part without cover plate | IP21 on connection terminals | IP31 on upper part | IP41 on upper part |
| Range of product | Altivar 312 |
| [Us] rated supply voltage | 380…500 V – 15…10 % |
| Supply voltage limits | 323…550 V |
| Continuous output current | 27.7 A at 4 kHz |
| Output frequency | 0…500 Hz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Minimum switching current | R1-R2 10 mA at 5 V DC |
| Maximum switching current | R1-R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms | R1-R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms | R1-R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms | R1-R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms |
| Frequency resolution | Analog input: 0.1…100 Hz | Display unit: 0.1 Hz |
| Nominal switching frequency | 4 kHz |
| Network frequency | 47.5…63 Hz |
| Net weight | 11 kg |
| Package 1 Weight | 11.755 kg |
| Package 2 Weight | 60.02 kg |
