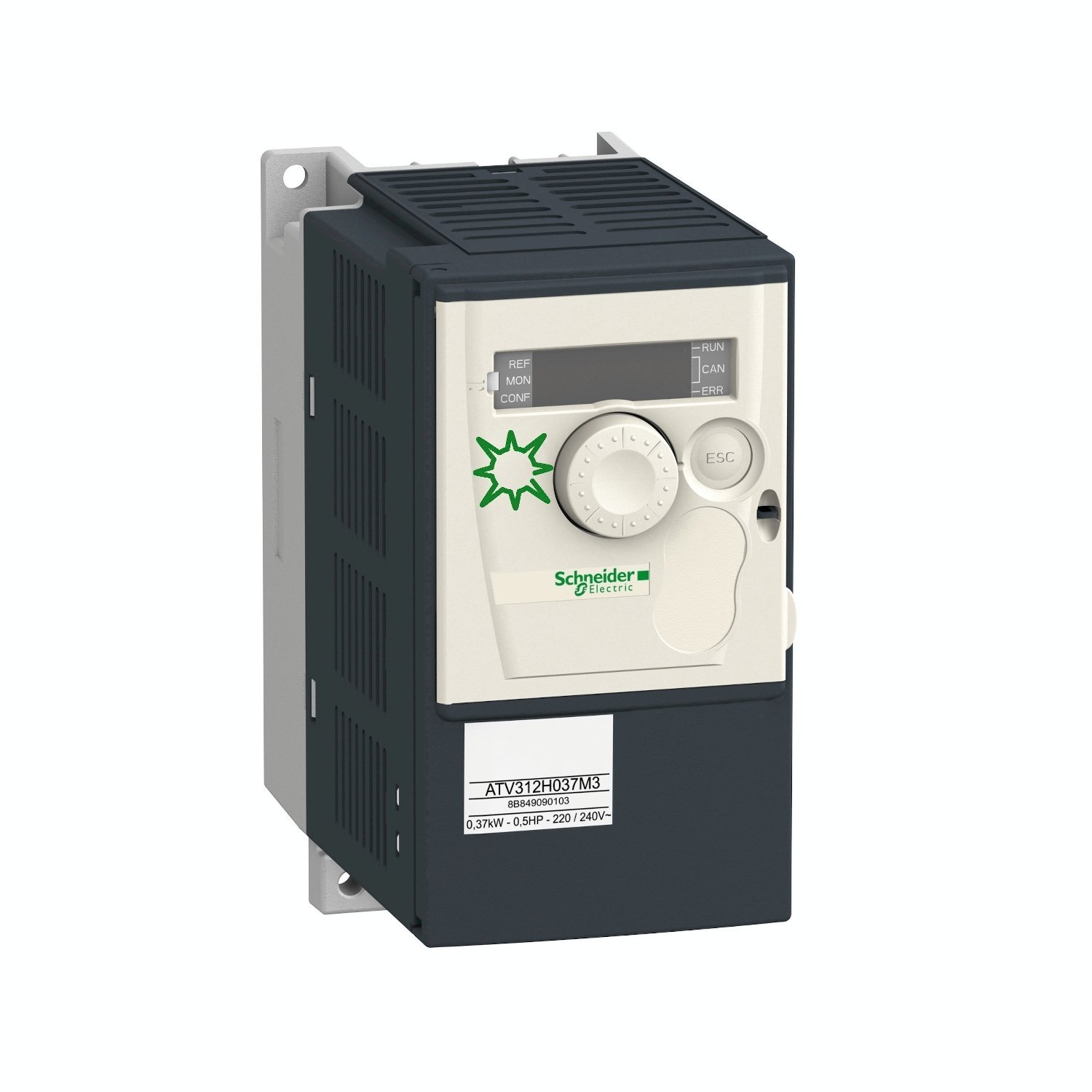

variable speed drive ATV312 – 0.37kW – 1.3kVA – 38W – 200..240 V- 3-phase supply
Manufacturer: Schneider Electric
Part Number: ATV312H037M3412
Key Specifications
| Range of Product | Altivar 312 Solar |
| Motor power kW | 0.37 kW |
| Maximum Horse Power Rating | 0.5 hp |
| [Us] rated supply voltage | 200…240 V – 5…5 % |
| Supply voltage limits | 170…264 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network Frequency | 47.5…63 Hz |
| Phase | 3 phase |
| Line current | 3.3 A 240 V | 3.8 A 200 V, Isc = 1 kA |
| Apparent power | 1.3 kVA |
| Continuous output current | 3.3 A 4 kHz |
| Maximum transient current | 5 A 60 s |
| Power dissipation in W | 38 W at nominal load |
| Speed drive output frequency | 0.5…500 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Minimum switching current | R1-R2 10 mA 5 V DC |
| Maximum switching current | 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms R1-R2) | 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms R1-R2) | 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms R1-R2) | 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms R1-R2) |
| Frequency resolution | Analog input 0.1…100 Hz | Display unit 0.1 Hz |
| Net Weight | 2.9 lb(US) (1.3 kg) |
| IP degree of protection | IP20 without cover plate |
| Package weight(Lbs) | 3.09 lb(US) (1.4 kg) |
