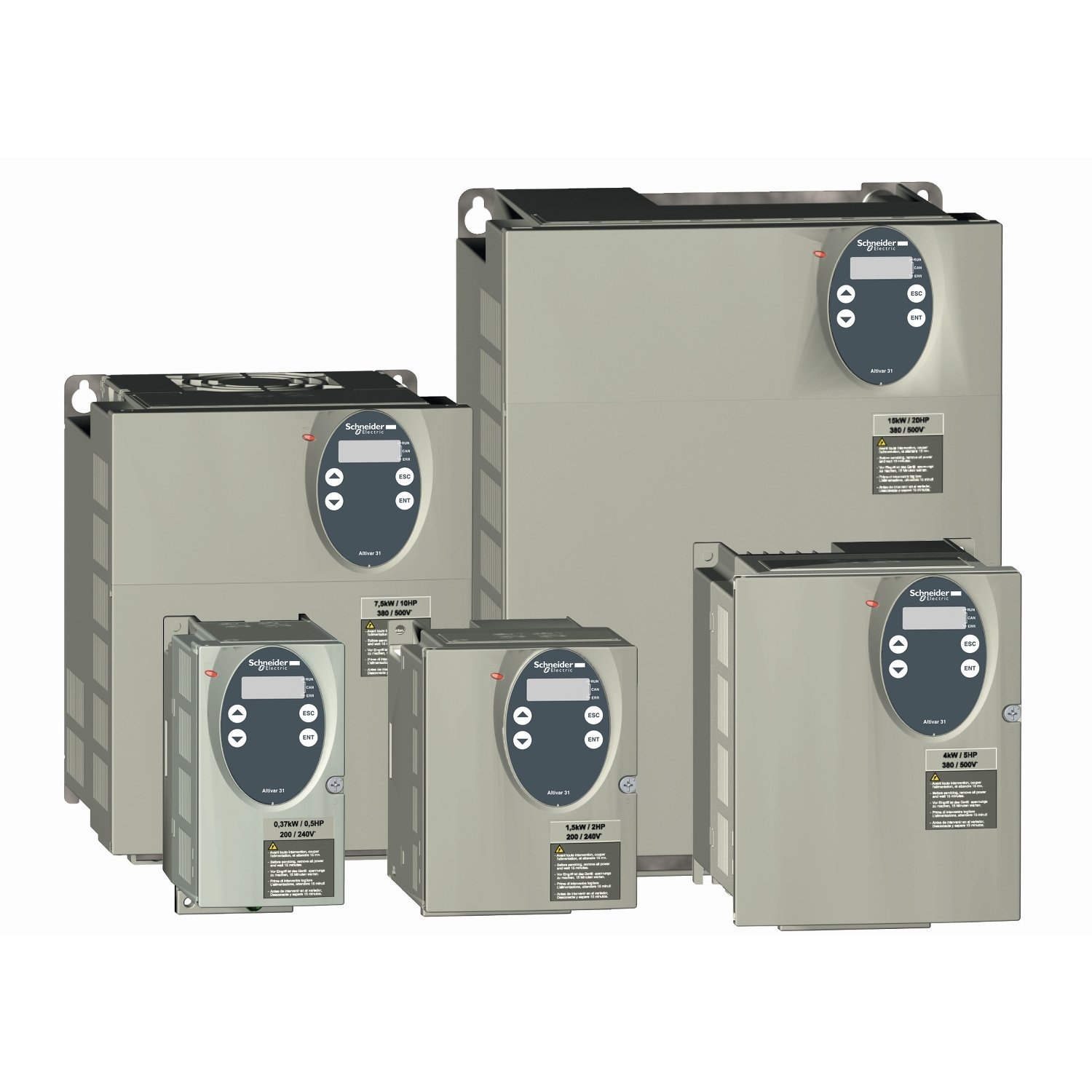

variable speed drive ATV31 – 1.1 kW – 380..500 V – 3 phases supply
Manufacturer: Telemecanique
Part Number: ATV31KU11N4
EAN: 3389110588606
Key Specifications
| Range of product | Altivar |
| [Us] rated supply voltage | 380…500 V |
| Network number of phases | 3 phases |
| Motor power kW | 1.1 kW <= 4 kHz |
| Motor power hp | 1.5 hp <= 4 kHz |
| Line current | 3.7 A at 500 V | 4.9 A at 380 V |
| Nominal output current | 3 A 4 kHz |
| Maximum transient current | 4.5 A for 60 s |
| Power dissipation in W | 48 W at nominal load |
| Supply frequency | 50…60 Hz |
| Apparent power | 3.2 kVA |
| Speed drive output frequency | 0.5…500 Hz |
| Switching frequency | 2…16 kHz adjustable |
| Supply voltage limits | 323…550 V |
| Network frequency limits | 47.5…63 Hz |
| Output voltage | <= supply voltage |
| Minimum switching current | 10 mA at 5 V DC for configurable relay logic |
| Maximum switching current | 5000 mA 250 V AC resistive 1 configurable relay logic | 5000 mA 30 V DC resistive 1 configurable relay logic | 2000 mA 250 V AC inductive 0.4 7 ms configurable relay logic | 2000 mA 30 V DC inductive 0.4 7 ms configurable relay logic |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.1…100 Hz |
| Net weight | 8.8 kg |
