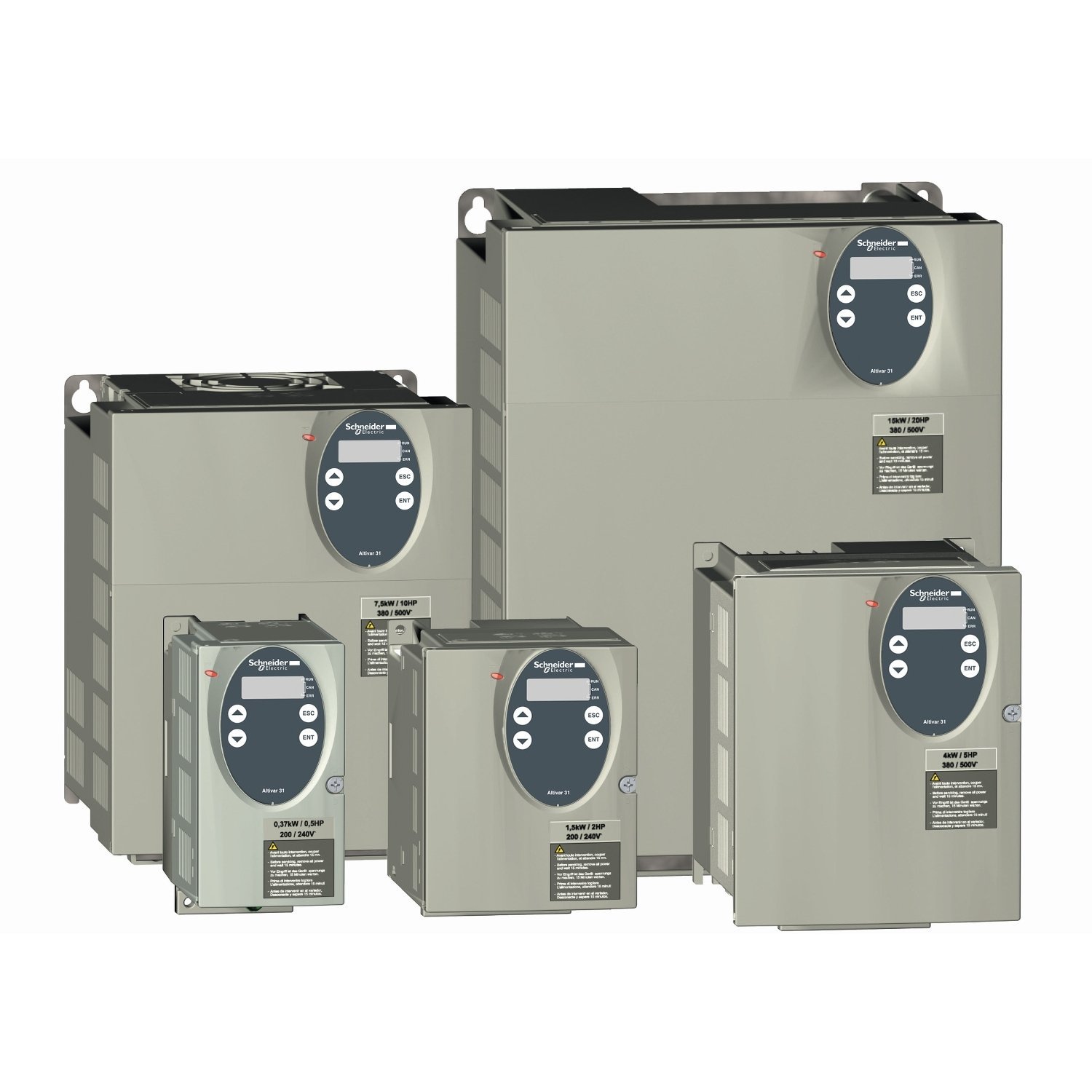

variable speed drive ATV31 – 0.55kW – 240V 1-phase supply – EMC filter – IP20
Manufacturer: Telemecanique
Part Number: ATV31H055M2
EAN: 3389110586916
Key Specifications
| Range of product | Altivar |
| [Us] rated supply voltage | 200…240 V – 5…5 % |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | Single phase |
| Motor power kW | 0.55 kW 4 kHz |
| Motor power hp | 0.75 hp 4 kHz |
| Line current | 5.8 A at 240 V | 6.8 A at 200 V, Isc = 1 kA |
| Apparent power | 1.4 kVA |
| Nominal output current | 3.7 A 4 kHz |
| Maximum transient current | 5.6 A for 60 s |
| Power dissipation in W | 46 W at nominal load |
| Supply voltage limits | 170…264 V |
| Network frequency | 47.5…63 Hz |
| Output frequency | 0.0005…0.5 kHz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Minimum switching current | R1-R2 10 mA at 5 V DC |
| Maximum switching current | R1-R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms | R1-R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms | R1-R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms | R1-R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.1…100 Hz |
| Net weight | 1.5 kg |
| IP degree of protection | On upper part: IP20 (without cover plate) | On connection terminals: IP21 | On upper part: IP31 | On upper part: IP41 |
