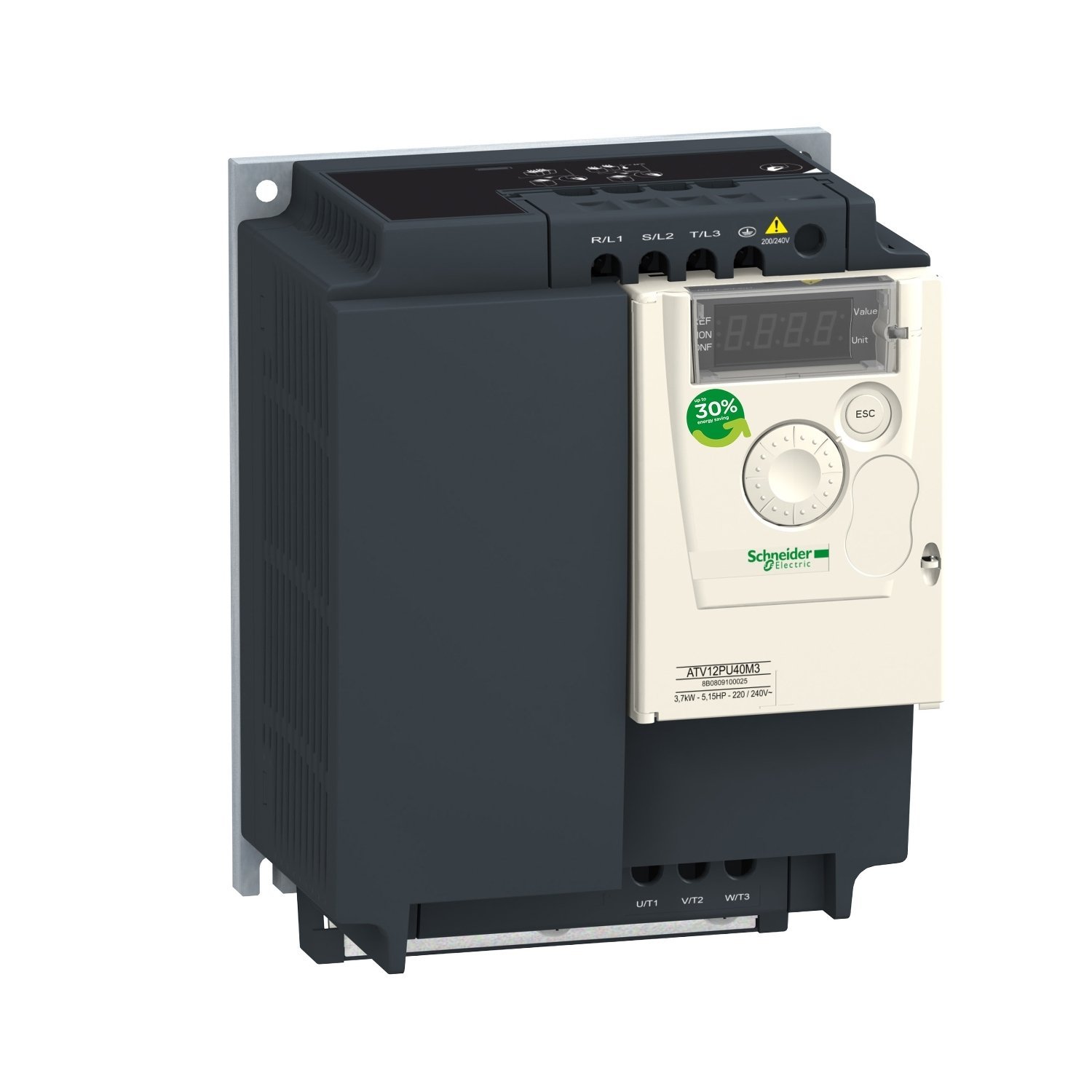

variable speed drive ATV12 – 4kW – 5hp – 3ph – 200..240V – on base plate
Manufacturer: Schneider Electric
Part Number: ATV12PU40M3
EAN: 3606480071263
Key Specifications
| Range of product | Altivar 12 |
| Mounting mode | Cabinet mount |
| Supply frequency | 50/60 Hz +/- 5 % |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| nominal output current | 16.7 A |
| Motor power kW | 4 kW |
| Motor power hp | 5 hp |
| IP degree of protection | IP20 |
| Continuous output current | 16.7 A at 4 kHz |
| Speed drive output frequency | 0.5…400 Hz |
| Frequency resolution | Analog input: converter A/D, 10 bits | Display unit: 0.1 Hz |
| Maximum output frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 23.8 A at 100 V (heavy duty) | 19.9 A at 120 V (heavy duty) |
| Maximum input current | 19.9 A |
| Maximum output voltage | 240 V |
| Apparent power | 8.3 kVA at 240 V (heavy duty) |
| Maximum transient current | 25.0 A during 60 s (heavy duty) | 27.6 A during 2 s (heavy duty) |
| Network frequency | 50…60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Base load current at high overload | 16.7 A |
| Power dissipation in W | Natural: 128.0 W |
| Net weight | 1.6 kg |
| Overvoltage category | Class III |
| Package 1 Weight | 2.202 kg |
| Package 2 Weight | 39.424 kg |
