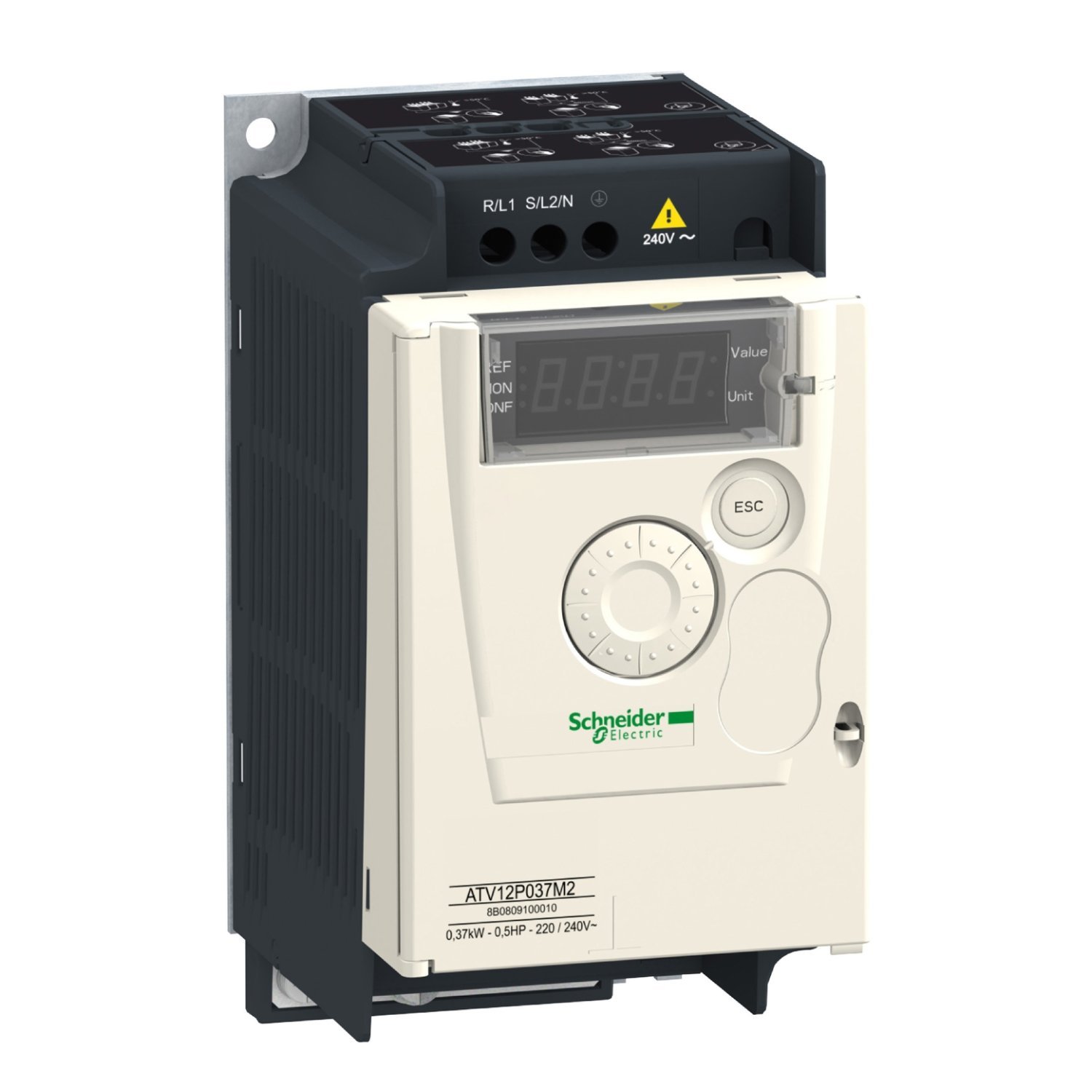

variable speed drive ATV12 – 0.37kW – 0.55hp – 200..240V – 1ph – on base plate
Manufacturer: Schneider Electric
Part Number: ATV12P037M2
EAN: 3606480071119
Key Specifications
| Range of product | Altivar 12 |
| Mounting mode | Cabinet mount |
| Supply frequency | 50/60 Hz +/- 5 % |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| nominal output current | 2.4 A |
| Motor power kW | 0.37 kW |
| Motor power hp | 0.55 hp |
| IP degree of protection | IP20 |
| Continuous output current | 2.4 A at 4 kHz |
| Speed drive output frequency | 0.5…400 Hz |
| Frequency resolution | Analog input: converter A/D, 10 bits | Display unit: 0.1 Hz |
| Maximum output frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 5.9 A at 100 V (heavy duty) | 4.9 A at 120 V (heavy duty) |
| Maximum input current | 4.9 A |
| Maximum output voltage | 240 V |
| Apparent power | 1.2 kVA at 240 V (heavy duty) |
| Maximum transient current | 3.6 A during 60 s (heavy duty) | 4.0 A during 2 s (heavy duty) |
| Network frequency | 50…60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Base load current at high overload | 2.4 A |
| Power dissipation in W | Natural: 27.0 W |
| Net weight | 0.7 kg |
| Overvoltage category | Class III |
| Package 1 Weight | 923.000 g |
| Package 2 Weight | 55.075 kg |
