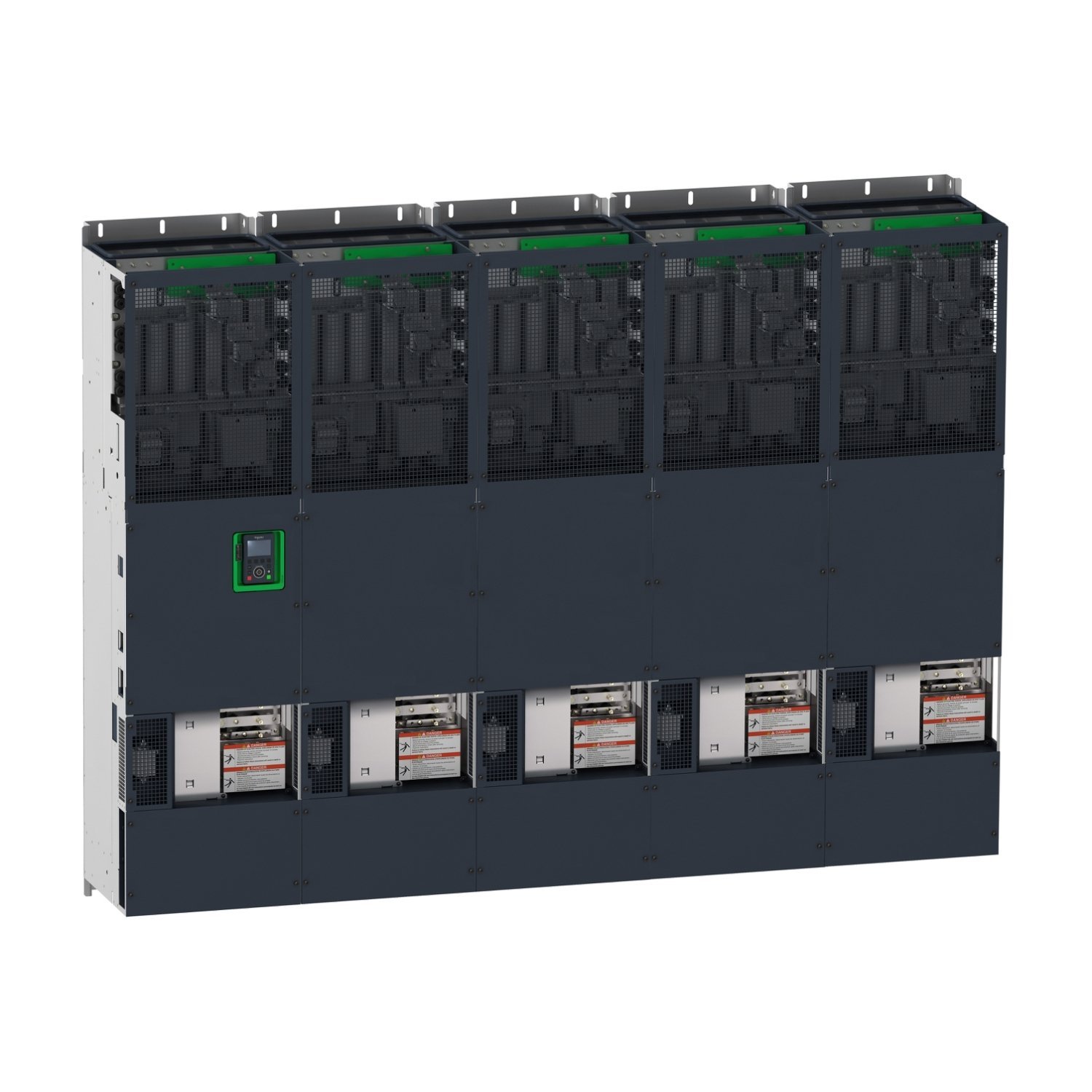

variable speed drive APM, ATV600, Low Harmonic drive, 480 V, 1000 hp
Manufacturer: Schneider Electric
Part Number: ATV6B0C71T4
Key Specifications
| Range of product | Altivar Process ATV600 |
| Mounting mode | Cabinet mount |
| IP degree of protection | IP00 for IP21 or IP54 cabinet integration)IEC 61800-5-1 | IP00 for IP21 or IP54 cabinet integration)IEC 60529 |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 480 V – 10…10 % |
| Speed drive output frequency | 0…500 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2.5…8 kHz with derating factor | 2…8 kHz adjustable |
| Motor power kW | 710.0 kW at 480 V normal duty | 560.0 kW at 480 V heavy duty |
| Motor power hp | 1000.0 hp at 480 V normal duty | 800.0 hp at 480 V heavy duty |
| Line current | 958.0 A 480 V normal duty) | 771.0 A 480 V heavy duty) |
| Apparent power | 797 kVA at 480 V normal duty | 641 kVA at 480 V heavy duty |
| Continuous output current | 1260.0 A at 2.5 kHz normal duty | 1020.0 A at 2.5 kHz heavy duty |
| Maximum transient current | 1386 A 60 s normal duty) | 1530 A 60 s heavy duty) |
| Permissible temporary current boost | 1.1 x In 60 s normal duty) | 1.5 x In 60 s heavy duty) |
| Output voltage | <= power supply voltage |
| Frequency resolution | Display unit 0.1 Hz | Analog input 0.012/50 Hz |
| Power dissipation in W | Forced convection 29930 W 2.5 kHz normal duty) | Forced convection 23740 W 2.5 kHz heavy duty) |
