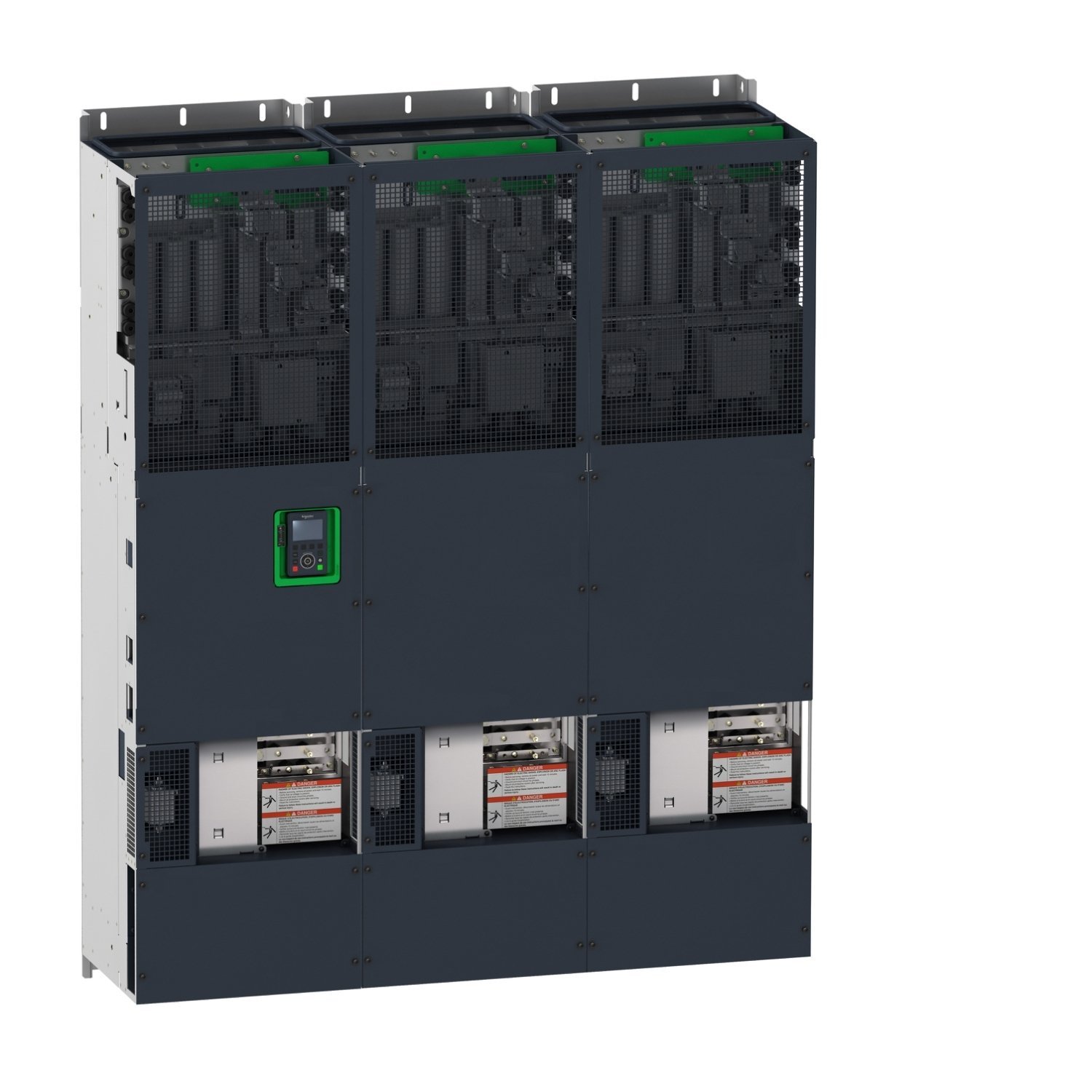

variable speed drive APM, ATV600, Low Harmonic drive, 400 V, 500 kW
Manufacturer: Schneider Electric
Part Number: ATV6B0C50Q4
Key Specifications
| Range of product | Altivar Process ATV600 |
| Mounting mode | Cabinet mount |
| IP degree of protection | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 61800-5-1 | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 60529 |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 400 V – 15…10 % |
| Speed drive output frequency | 0…500 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2.5…8 kHz with derating factor | 2…8 kHz adjustable |
| Motor power kW | 500.0 kW at 400 V normal duty | 400.0 kW at 400 V heavy duty |
| Line current | 775.0 A at 400 V (normal duty) | 620.0 A at 400 V (heavy duty) |
| Apparent power | 537 kVA at 400 V normal duty | 429 kVA at 400 V heavy duty |
| Continuous output current | 900.0 A at 2.5 kHz normal duty | 730.0 A at 2.5 kHz heavy duty |
| Maximum transient current | 990 A during 60 s (normal duty) | 1095 A during 60 s (heavy duty) |
| Permissible temporary current boost | 1.1 x In during 60 s (normal duty) | 1.5 x In during 60 s (heavy duty) |
| Output voltage | <= power supply voltage |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Power dissipation in W | Forced convection: 22280 W, switching frequency 2.5 kHz (normal duty) | Forced convection: 17230 W, switching frequency 2.5 kHz (heavy duty) |
