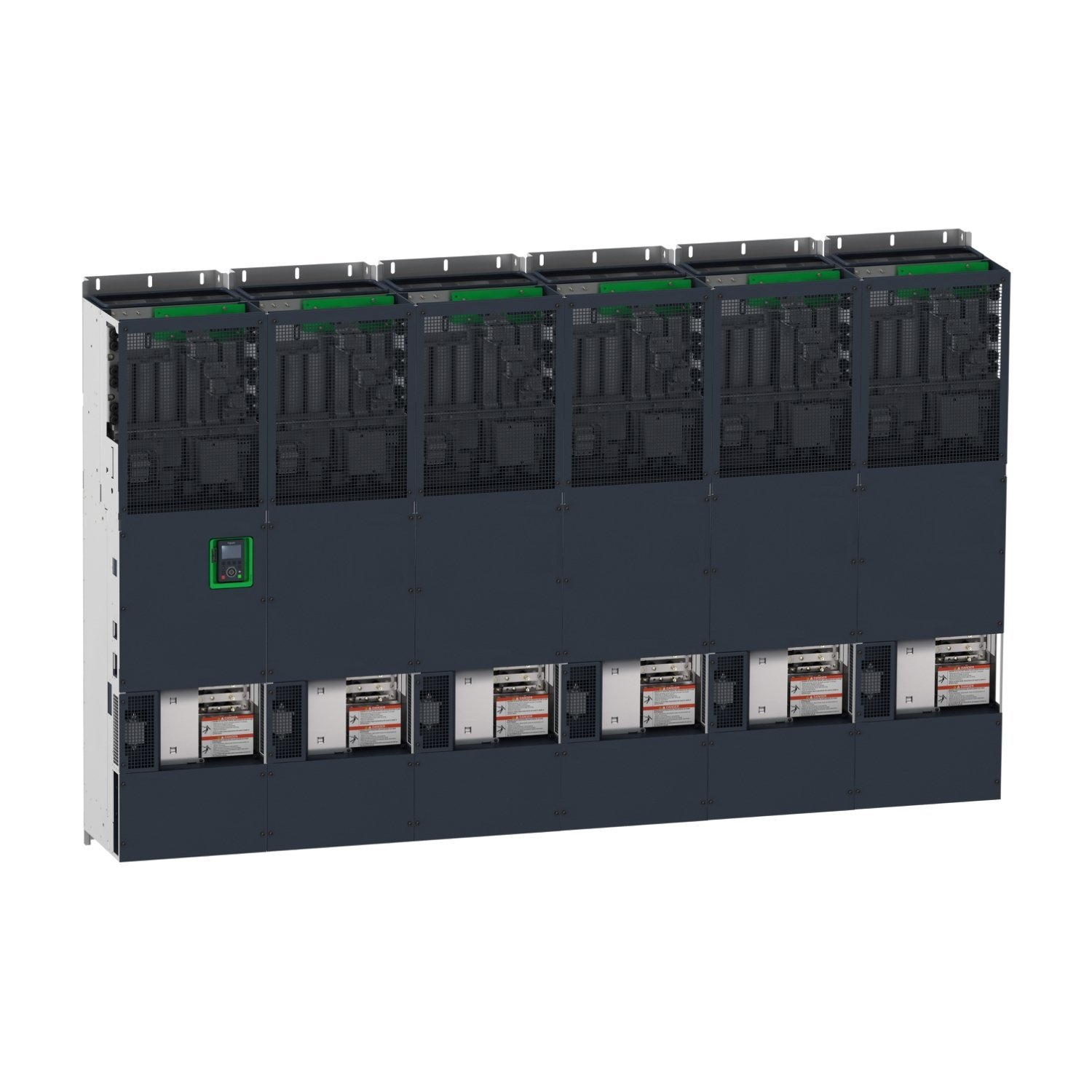

variable speed drive, Altivar Process ATV600, APM, Low Harmonic 400V, 1000kW
Manufacturer: Schneider Electric
Part Number: ATV6B0M10Q4
Key Specifications
| Range of product | Altivar Process ATV600 |
| Mounting mode | Cabinet mount |
| IP degree of protection | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 61800-5-1 | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 60529 |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 400 V – 15…10 % |
| Speed drive output frequency | 0…500 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2.5…8 kHz with derating factor | 2…8 kHz adjustable |
| Motor power kW | 1000.0 kW at 400 V normal duty | 800.0 kW at 400 V heavy duty |
| Line current | 1550.0 A at 400 V (normal duty) | 1240.0 A at 400 V (heavy duty) |
| Apparent power | 1074 kVA at 400 V normal duty | 859 kVA at 400 V heavy duty |
| Continuous output current | 1770.0 A at 2.5 kHz normal duty | 1420.0 A at 2.5 kHz heavy duty |
| Maximum transient current | 1947 A during 60 s (normal duty) | 2130 A during 60 s (heavy duty) |
| Permissible temporary current boost | 1.1 x In during 60 s (normal duty) | 1.5 x In during 60 s (heavy duty) |
| Output voltage | <= power supply voltage |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Maximum switching current | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| Power dissipation in W | Forced convection: 44560 W, switching frequency 2.5 kHz (normal duty) | Forced convection: 34460 W, switching frequency 2.5 kHz (heavy duty) |
