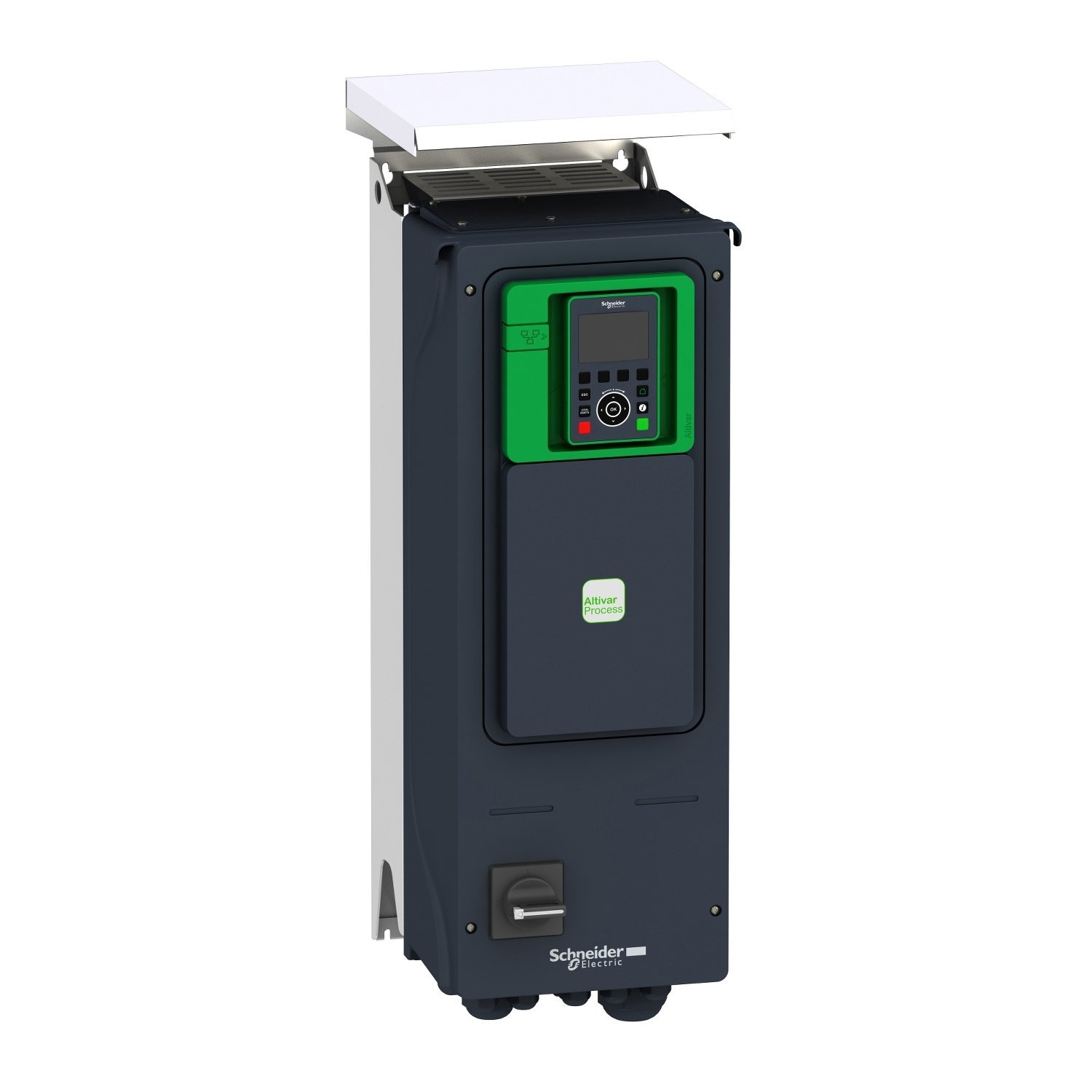

variable speed drive, Altivar Process ATV900, ATV950, 15kW, 20hp, 380 to 480V, IP55, UL type12, disconnect switch

SKU: ATV950D15N4EU Category: Altivar Process 930 Variable Frequency Drives VFD Tag: ATV950D15N4EU|Altivar Process 930 Variable Frequency Drives VFD Brand: Schneider Electric

Description

variable speed drive, Altivar Process ATV900, ATV950, 15kW, 20hp, 380 to 480V, IP55, UL type12, disconnect switch

Manufacturer: Schneider Electric

Part Number: ATV950D15N4EU

Key Specifications

Range of Product	Altivar Process ATV900
Phase	3 phase
Mounting Mode	Wall mount
Continuous output current	31.7 A 4 kHz normal duty \| 23.5 A 4 kHz heavy duty
[Us] rated supply voltage	380…480 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	31.7 A
Motor power kW	15.0 kW normal duty \| 11.0 kW heavy duty
IP degree of protection	IP55
Maximum switching current	Relay output R1 resistive, cos phi = 1 3 A 250 V AC \| Relay output R1 resistive, cos phi = 1 3 A 30 V DC \| Relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC \| Relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC \| Relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC \| Relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
Maximum output frequency	599 Hz
Switching frequency	2…16 kHz adjustable \| 4…16 kHz with derating factor
Nominal switching frequency	4 kHz
Line current	27.0 A 380 V normal duty) \| 20.6 A 380 V heavy duty) \| 23.3 A 480 V normal duty) \| 18.1 A 480 V heavy duty)
Maximum Input Current per Phase	27.0 A
Maximum output voltage	480.0 V
Apparent power	19.4 kVA 480 V normal duty) \| 15 kVA 480 V heavy duty)
Maximum transient current	38 A 60 s normal duty) \| 35.3 A 60 s heavy duty)
Network Frequency	50-60 Hz
Base load current at high overload	23.5 A
Base load current at low overload	31.7 A
Net Weight	43.2 lb(US) (19.6 kg)
Overvoltage category	III
Package weight(Lbs)	55.1 lb(US) (25 kg)
