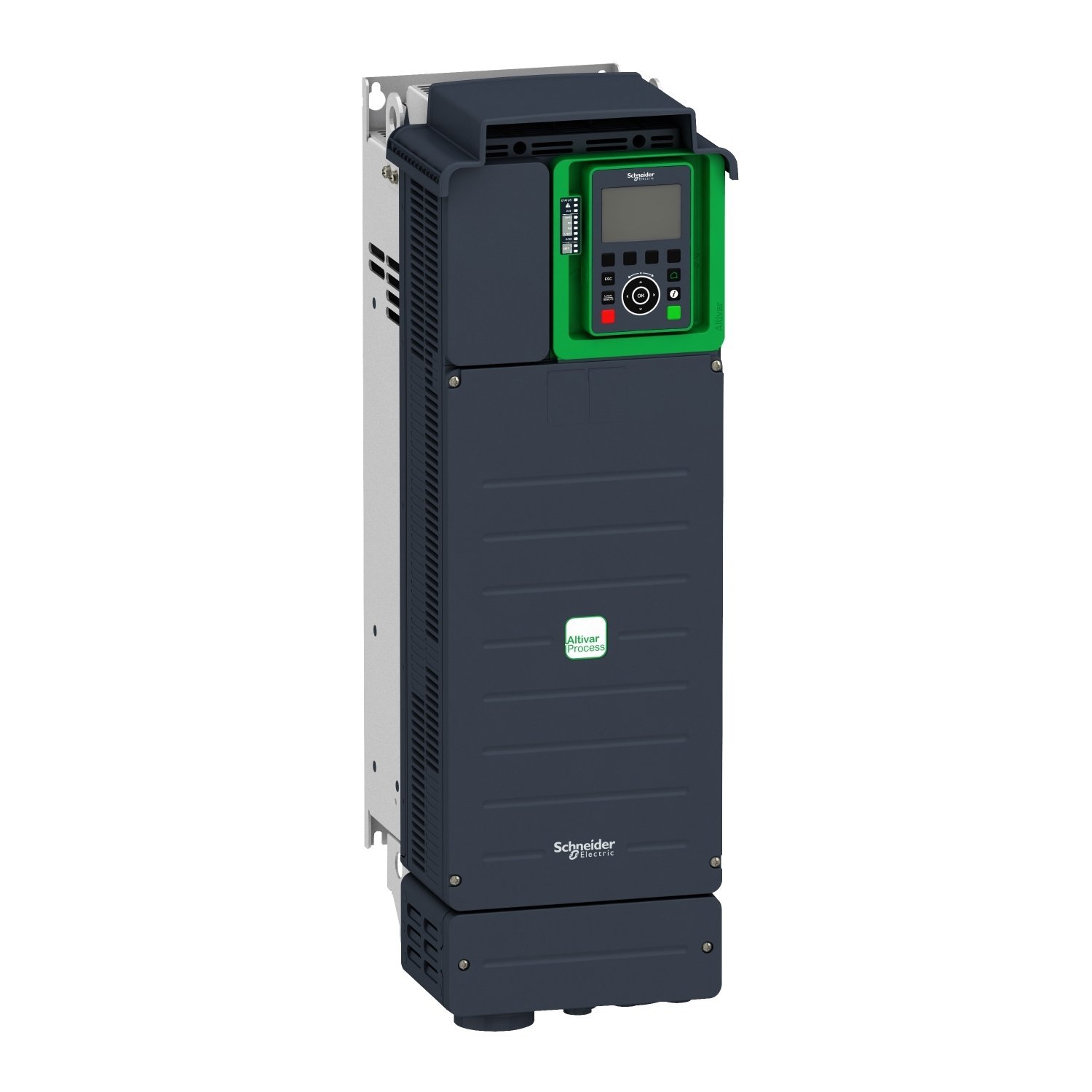

Variable Speed Drive, Altivar Process ATV900, ATV930, 30kW, 400 to 480V, with braking unit, IP21 [TAA, BABA]

SKU: ATV930D30N4US Category: Altivar Process 930 Variable Frequency Drives VFD Tag: ATV930D30N4US|Altivar Process 930 Variable Frequency Drives VFD Brand: Schneider Electric

Description

Variable Speed Drive, Altivar Process ATV900, ATV930, 30kW, 400 to 480V, with braking unit, IP21 [TAA, BABA]

Manufacturer: Schneider Electric

Part Number: ATV930D30N4US

Key Specifications

Range of Product	Altivar Process ATV900
Phase	3 phase
Mounting Mode	Wall mount
Continuous output current	61.5 A 4 kHz normal duty \| 46.3 A 4 kHz heavy duty
[Us] rated supply voltage	380…480 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	61.5 A
Motor power kW	30.0 kW normal duty \| 22.0 kW heavy duty
IP degree of protection	IP21
Maximum switching current	Relay output R1 resistive, cos phi = 1 3 A 250 V AC \| Relay output R1 resistive, cos phi = 1 3 A 30 V DC \| Relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC \| Relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC \| Relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC \| Relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
Maximum output frequency	599 Hz
Switching frequency	2…16 kHz adjustable \| 4…16 kHz with derating factor
Nominal switching frequency	4 kHz
Line current	53.3 A 380 V normal duty) \| 40.5 A 380 V heavy duty) \| 45.9 A 480 V normal duty) \| 35.8 A 480 V heavy duty)
Maximum Input Current per Phase	53.3 A
Maximum output voltage	480.0 V
Apparent power	38.1 kVA 480 V normal duty) \| 29.8 kVA 480 V heavy duty)
Maximum transient current	73.8 A 60 s normal duty) \| 69.5 A 60 s heavy duty)
Network Frequency	50-60 Hz
Base load current at high overload	46.3 A
Base load current at low overload	61.5 A
Power dissipation in W	Natural convection 93 W 380 V 4 kHz \| Forced convection 640 W 380 V 4 kHz
Net Weight	61.7 lb(US) (28 kg)
Overvoltage category	III
Package weight(Lbs)	63.140 lb(US) (28.640 kg)
