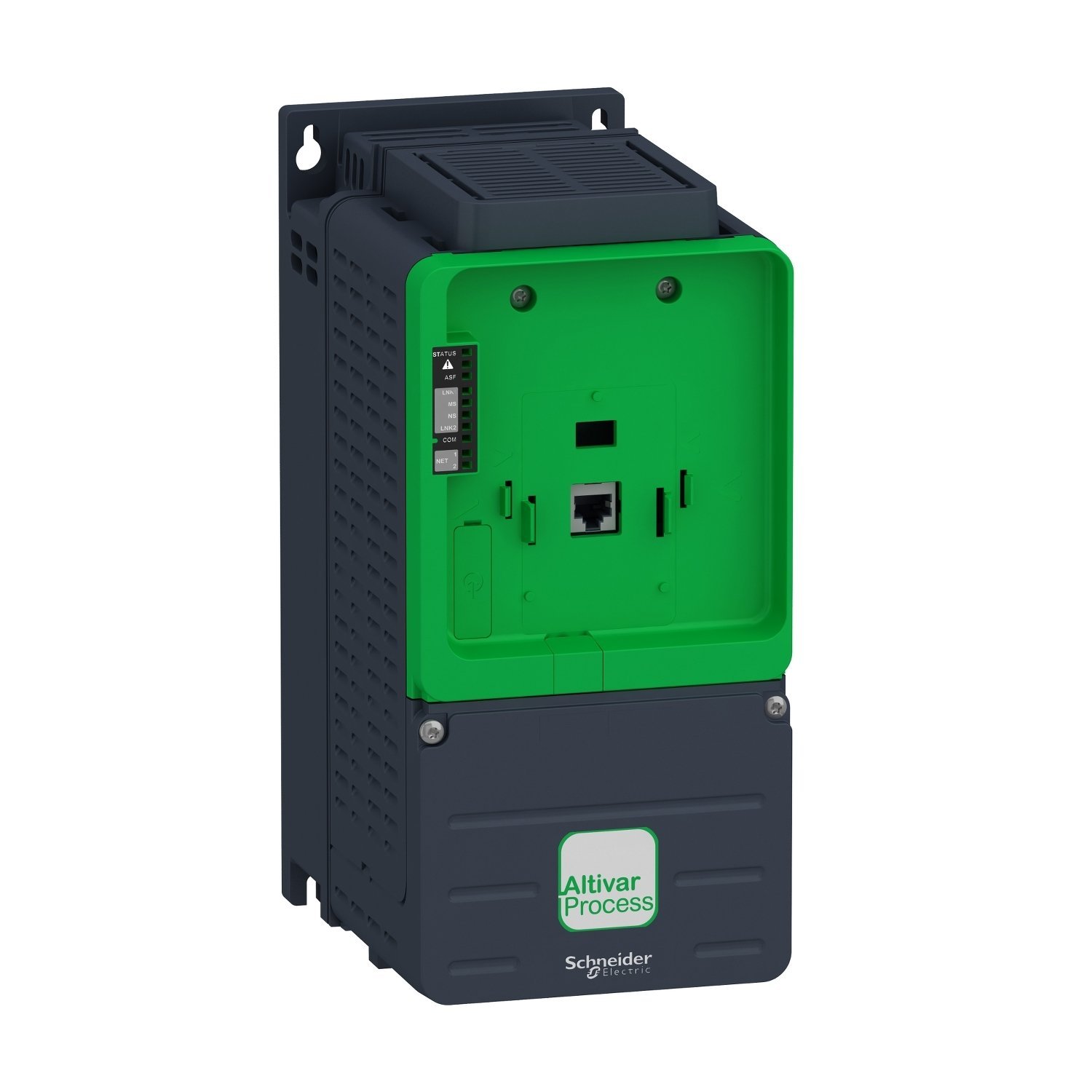

variable speed drive, Altivar Process ATV900, ATV930, 3kW, 380 to 480V, cabinet Integration, IP20, for US

SKU: ATV930U30N4ZU Category: Altivar Process 930 Variable Frequency Drives VFD Tag: ATV930U30N4ZU|Altivar Process 930 Variable Frequency Drives VFD Brand: Schneider Electric

Description

variable speed drive, Altivar Process ATV900, ATV930, 3kW, 380 to 480V, cabinet Integration, IP20, for US

Manufacturer: Schneider Electric

Part Number: ATV930U30N4ZU

Key Specifications

Range of Product	Altivar Process ATV900
Phase	3 phase
Mounting Mode	Cabinet mount
Continuous output current	7.2 A 4 kHz normal duty \| 5.6 A 4 kHz heavy duty
[Us] rated supply voltage	380…480 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	7.2 A
Motor power kW	3.0 kW normal duty \| 2.2 kW heavy duty
IP degree of protection	IP21
Maximum switching current	Relay output R1 resistive, cos phi = 1 3 A 250 V AC \| Relay output R1 resistive, cos phi = 1 3 A 30 V DC \| Relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC \| Relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC \| Relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC \| Relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
Maximum output frequency	599 Hz
Switching frequency	2…16 kHz adjustable \| 4…16 kHz with derating factor
Nominal switching frequency	4 kHz
Line current	5.8 A 380 V normal duty) \| 4.5 A 380 V heavy duty) \| 5.1 A 480 V normal duty) \| 4.0 A 480 V heavy duty)
Maximum Input Current per Phase	5.8 A
Maximum output voltage	480.0 V
Apparent power	4.2 kVA 480 V normal duty) \| 3.3 kVA 480 V heavy duty)
Maximum transient current	8.6 A 60 s normal duty) \| 8.4 A 60 s heavy duty)
Network Frequency	50-60 Hz
Base load current at high overload	5.6 A
Base load current at low overload	7.2 A
Power dissipation in W	Natural convection 31 W 380 V 4 kHz \| Forced convection 78 W 380 V 4 kHz
Overvoltage category	III
Package weight(Lbs)	10.56 lb(US) (4.79 kg)
