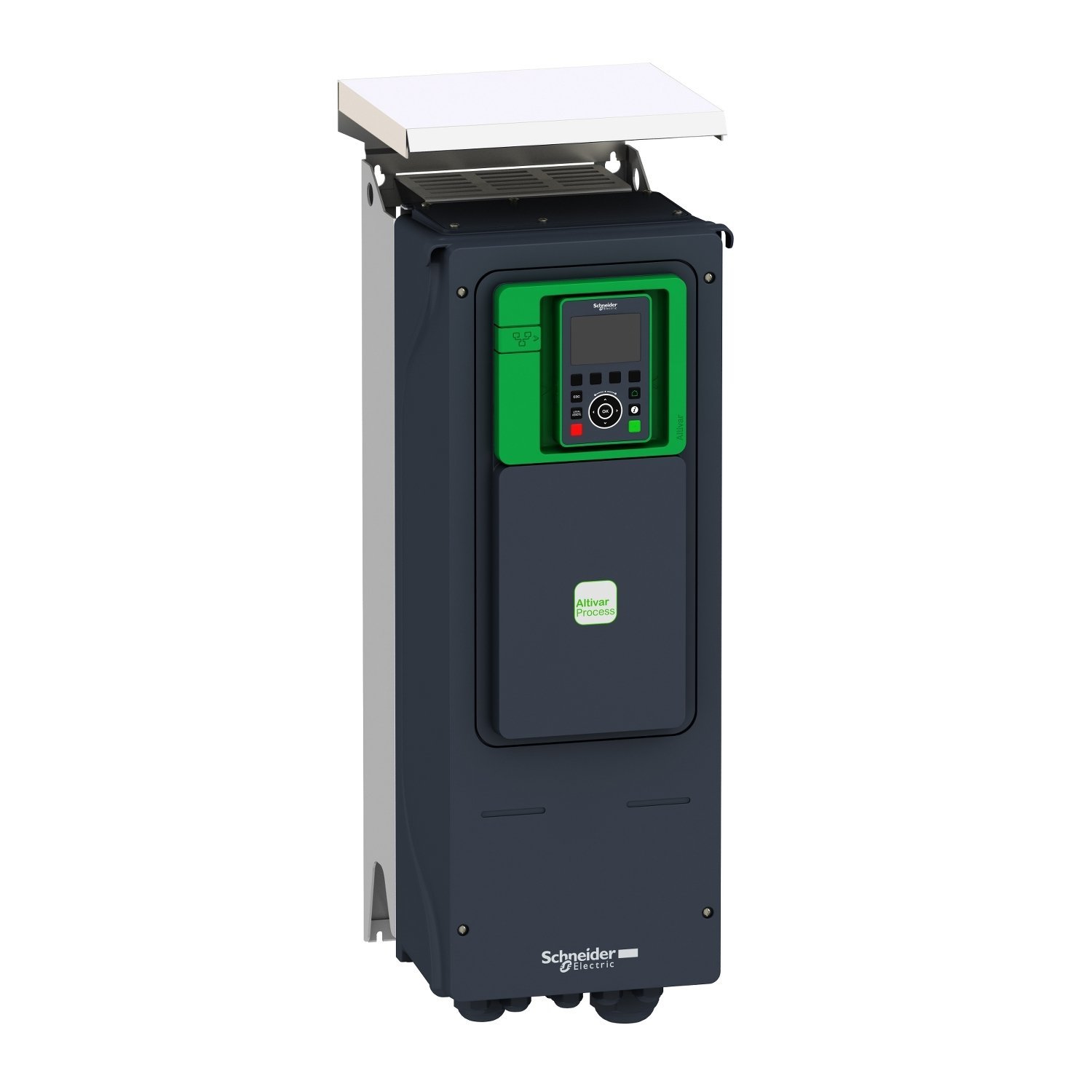

variable speed drive, Altivar Process ATV600, ATV650, 18.5kW, 400…480V, IP55

SKU: ATV650D18N4U Category: Altivar Process 630 Variable Frequency Drives VFD Tag: ATV650D18N4U|Altivar Process 630 Variable Frequency Drives VFD Brand: Schneider Electric

Description

variable speed drive, Altivar Process ATV600, ATV650, 18.5kW, 400…480V, IP55

Manufacturer: Schneider Electric

Part Number: ATV650D18N4U

Key Specifications

Range of Product	Altivar Process ATV600
Mounting Mode	Wall mount
[Us] rated supply voltage	380…480 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	39.2 A
IP degree of protection	IP55IEC 60529 \| IP55IEC 61800-5-1
Supply frequency	50…60 Hz – 5…5 %
Motor power kW	15 kW heavy duty) \| 18.5 kW normal duty)
Maximum Horse Power Rating	20 hp heavy duty \| 25 hp normal duty
Line current	28.9 A 480 V normal duty) \| 27.7 A 380 V heavy duty) \| 24.4 A 480 V heavy duty) \| 33.4 A 380 V normal duty)
Continuous output current	31.7 A 4 kHz heavy duty \| 39.2 A 4 kHz normal duty
Speed drive output frequency	0.1…500 Hz
Maximum switching current	Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC \| Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC
Minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
Phase	3 phase
Output voltage	<= power supply voltage
Permissible temporary current boost	1.5 x In 60 s heavy duty) \| 1.1 x In 60 s normal duty)
Frequency resolution	Analog input 0.012/50 Hz \| Display unit 0.1 Hz
Enclosure mounting	Wall mounted
Maximum output frequency	500 kHz
Switching frequency	4…12 kHz with derating factor \| 2…12 kHz adjustable
Nominal switching frequency	4 kHz
Maximum Input Current per Phase	33.4 A
Maximum output voltage	480.0 V
Apparent power	20.3 kVA 480 V heavy duty) \| 24 kVA 480 V normal duty)
Maximum transient current	47.6 A 60 s heavy duty) \| 43.1 A 60 s normal duty)
Network Frequency	50-60 Hz
Base load current at high overload	31.7 A
Base load current at low overload	39.2 A
Net Weight	45.4 lb(US) (20.6 kg)
Overvoltage category	III
Package weight(Lbs)	55.1 lb(US) (25.0 kg)
