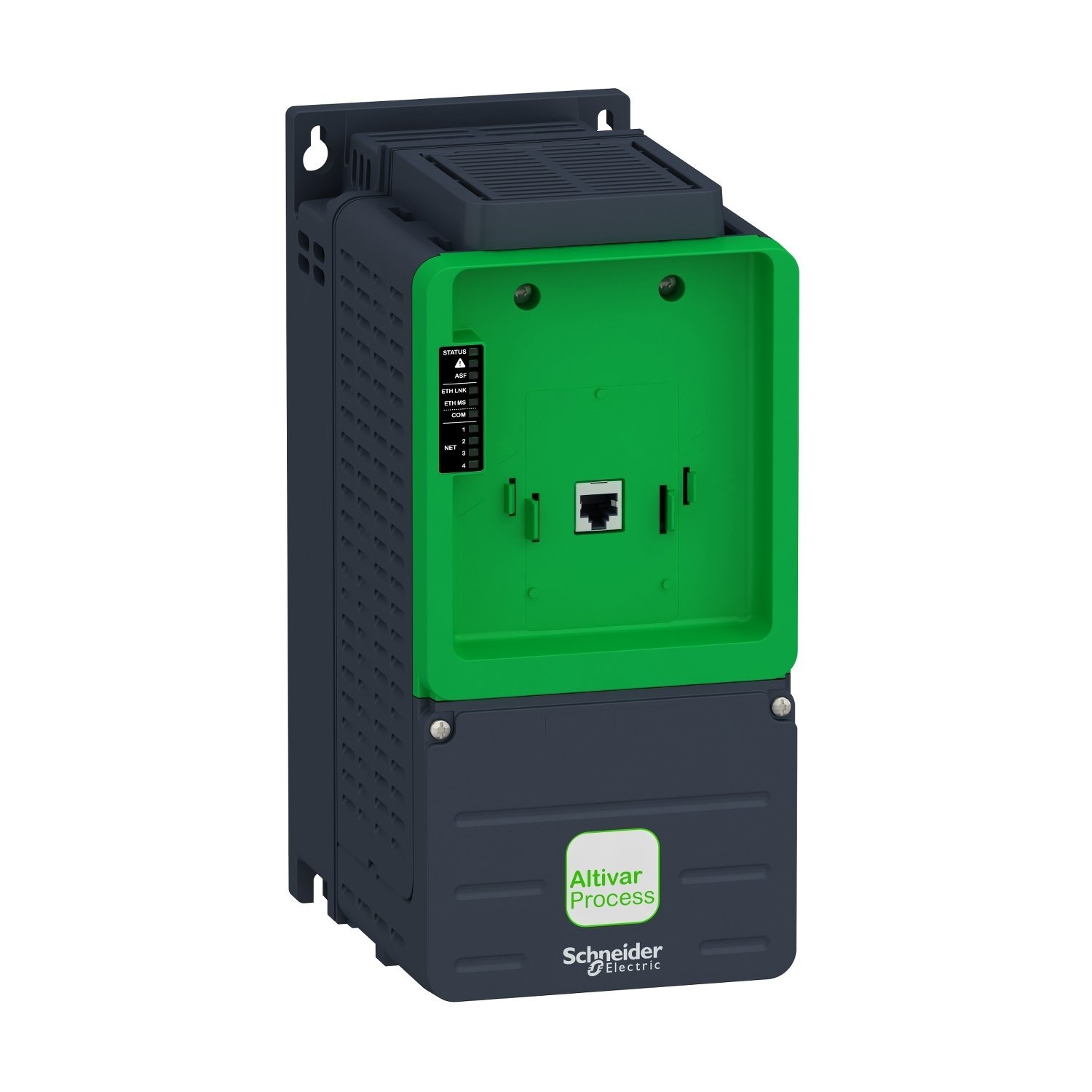

variable speed drive, Altivar Process ATV600, ATV630, cabinet Integration, IP20, 3kW, 380…480V, for US

SKU: ATV630U30N4ZU Category: Altivar Process 630 Variable Frequency Drives VFD Tag: ATV630U30N4ZU|Altivar Process 630 Variable Frequency Drives VFD Brand: Schneider Electric

Description

variable speed drive, Altivar Process ATV600, ATV630, cabinet Integration, IP20, 3kW, 380…480V, for US

Manufacturer: Schneider Electric

Part Number: ATV630U30N4ZU

Key Specifications

Range of Product	Altivar Process ATV600
Mounting Mode	Cabinet mount
[Us] rated supply voltage	380…480 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	7.2 A
IP degree of protection	IP20IEC 61800-5-1 \| IP20IEC 60529
Supply frequency	50…60 Hz – 5…5 %
Motor power kW	3 kW normal duty) \| 2.2 kW heavy duty)
Maximum Horse Power Rating	3 hp heavy duty
Line current	5.8 A 380 V normal duty) \| 5.1 A 480 V normal duty) \| 4.5 A 380 V heavy duty) \| 4 A 480 V heavy duty)
Continuous output current	7.2 A 4 kHz normal duty \| 5.6 A 4 kHz heavy duty
Speed drive output frequency	0.1…500 Hz
Maximum switching current	Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC \| Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
Phase	3 phase
Output voltage	<= power supply voltage
Permissible temporary current boost	1.1 x In 60 s normal duty) \| 1.5 x In 60 s heavy duty)
Frequency resolution	Display unit 0.1 Hz \| Analog input 0.012/50 Hz
Power range	2.2…3 kW 380…440 V 3 phase \| 2.2…3 kW 480…500 V 3 phase
Enclosure mounting	With heat sink
Maximum output frequency	500 kHz
Switching frequency	2…12 kHz adjustable \| 4…12 kHz with derating factor
Nominal switching frequency	4 kHz
Maximum Input Current per Phase	5.8 A
Maximum output voltage	480.0 V
Apparent power	4.2 kVA 480 V normal duty) \| 3.3 kVA 480 V heavy duty)
Maximum transient current	8.4 A 60 s heavy duty) \| 7.9 A 60 s normal duty)
Network Frequency	50-60 Hz
Base load current at high overload	5.6 A
Base load current at low overload	7.2 A
Power dissipation in W	Natural convection 31 W 380 V 4 kHz \| Forced convection 78 W 380 V 4 kHz
Net Weight	8.4 lb(US) (3.8 kg)
Overvoltage category	III
Package weight(Lbs)	10.829 lb(US) (4.912 kg)
