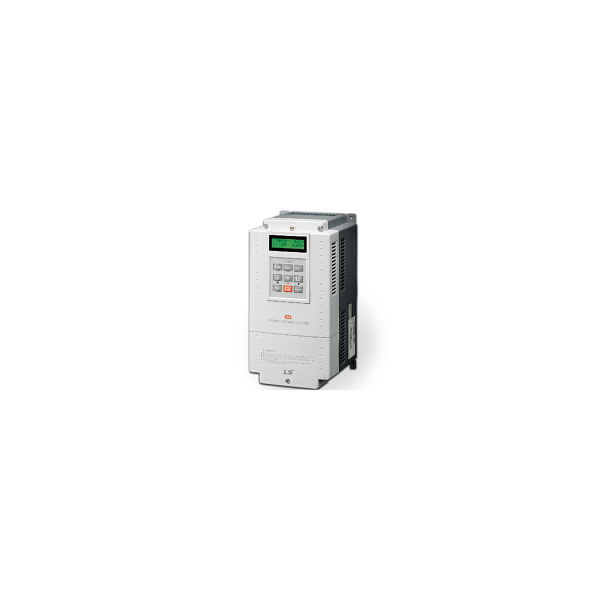

Precise vector control standard VFD Sensorless & sensored vector controller iS5 (0.75~75kW) keeps your application in more stable, durable and precise condition. And iS5 maximizes user-convenience with Auto Tuning, PID control, etc.
- Selectable V/f, Sensorless vector, Sensored vector control (Optional)
-
Built-in process PID control -
Optimum acceleration & deceleration for a maximum torque -
APP parameter group for special operations; Traverse, Multi Motor Control, DRAW -
Multi-function I/O terminal: Input: 27 functions / Output: 21 functions -
Multi Motor Control (Up to 4 motors: Optional) -
Motor parameter Auto-tuning -
Parameter Read/Write function using a detachable LCD Keypad -
8 Preset speeds -
Extension I/O boards (Optional) : Sub-A, Sub-B,l Sub-C -
Communication options: -
Modbus RTU, Profibus-DP, DeviceNet, RS485(LS Bus), Fnet(LS PLC link) -
Built-in Dynamic braking transistor (Up to 7.5kW [10HP]) -
Monitoring & commissioning PC based software tool (Drive View)
Specifications
| Manufacturer: | LS |
| Series: | iS5 |
| Model: | SV037iS5-4 |
| Application: | general purpose |
| Capacity, kW: | 3,7 |
| Current, А: | 6.1 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 0-400 |
| Enclosure: | IP00 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0-6000 |
| Deceleration time, sec: | 0-6000 |
| EMC filter: | – |
| Braking unit: | + |
| RS485 (Modbus RTU): | Device Net, Profibus DP, Modbus-RTU |
| PID: | + |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10……+40 |
| Storage temperature, °С: | -20……+65 |
| Dimensions (W x H x D), mm: | 150x284x156,5 |
| Weight, kg: | 4,9 |
