Functions:
- Deceleration (reduction in pressure surges), protection against underload or reversal of phase rotation direction
- Control of pump priming and the pump’s direction of rotation
- Monitoring of overloads for incident detection or underloads for break detection
- Braking for fast stop
- Torque control on starting
Specifications
| Manufacturer: | Schneider Electric |
| Series: | Altistart 48 |

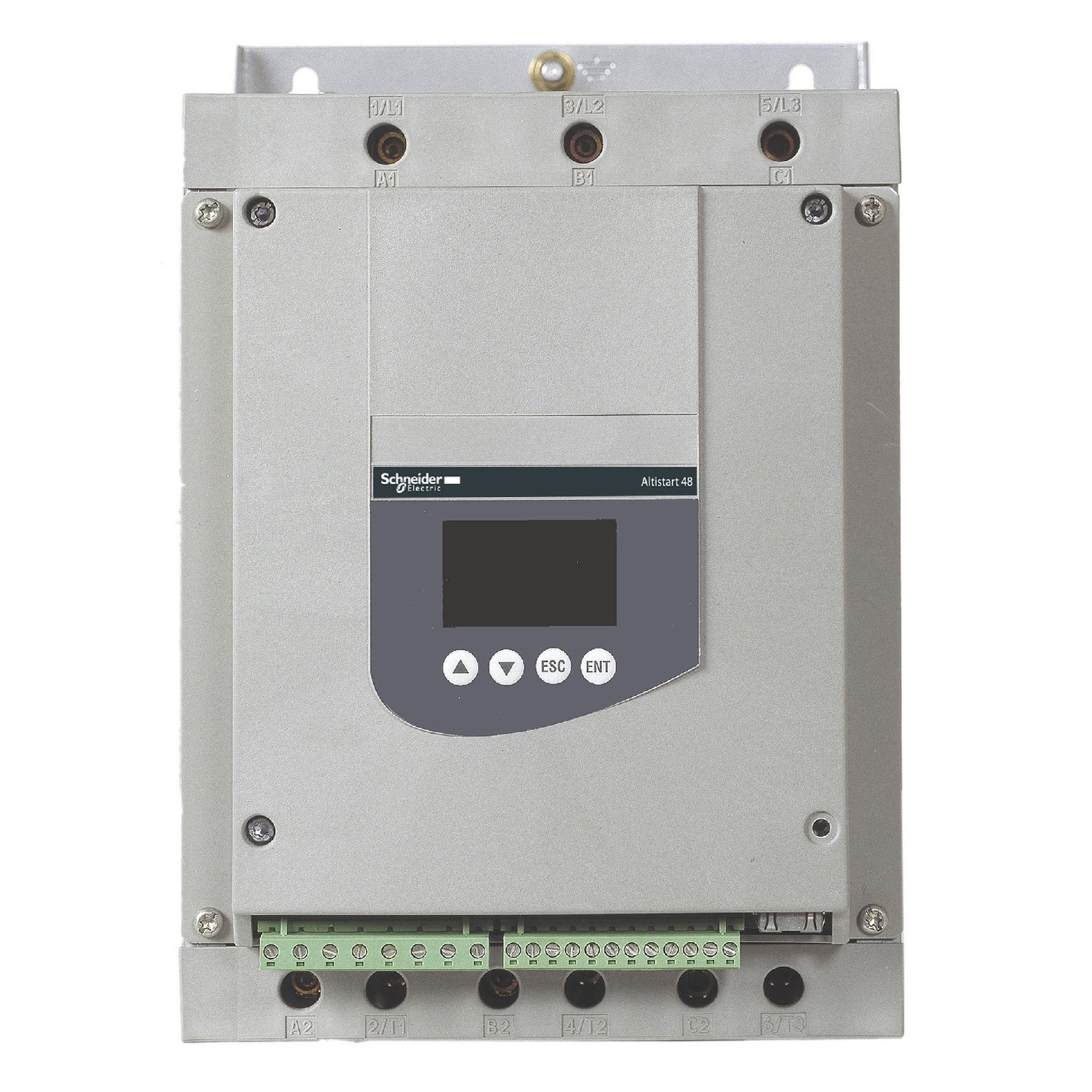

| Model: | ATS48D38Q |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 9 |
| Current, А: | 38 |
| Main power supply, V: | 230-415 |
| Phase: | 3 |
| Output frequency, Hz: | 50/60 |
| Enclosure: | IP 20 |
| Acceleration time, sec: | 1-60 |
| Deceleration time, sec: | 1-60 |
| Operation temperature, °С: | -10……+40 |
| Max. switching cycle per hour: | 10 |
| Starting current, % of rated current: | 400 |
| Integrated bypass relay: | – |
| Control type: | digital |
| Microprocessor supply voltage: | 220-415 V |
| Motor protection (thermal model): | + |
| Motor protection (input for thermistor/thermal relay): | + |
| Motor protection (low current) : | + |
| Motor protection (momentary motor overload): | + |
| Motor protection (Others): | + |
| JOG mode: | – |
| DC braking: | + |
| Inputs/Outputs: | 4 digital inputs, 2 digital outputs, 3 relay outputs and 1 analog output |
| Separately adjustable parameters: | 7 |
| Mounting: | Vertical position (± 10 °), in protective housing or cabinet |
| Network Control Protocols: | Modbus |
| Options: | The remote terminal that can be mounted on the door of the enclosure or cabinet; set of connecting cables; communication means for connecting to networks and buses Ethernet, Fipio, DeviceNet, Profibus DP |
