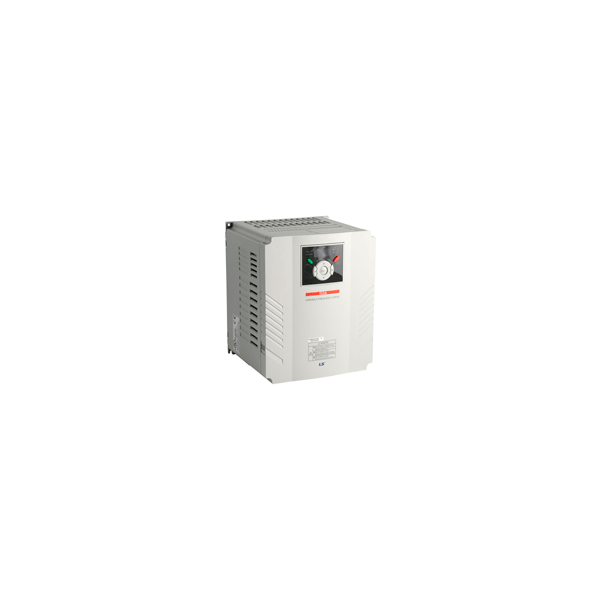

iG5A series inverter is with sensorless vector control developed for fans, pumps, conveyors, mixers, lifts, attractions and other standard and special applications.
Distinctive features:
- V / F and sensorless vector control
- Automatic identification of motor parameters
- Output frequency: 0.1 – 400 Hz
- The carrier frequency of 1 – 15 kHz
- Error History: the last 5 errors
- Protection class: IP 20, NEMA Type 1 (optional)
- Manual / Auto Torque Boost setting
- Choice of PNP / NPN logic for the signal inputs
- Managing and configuring the second motor parameters
- Integrated brake unit
- Built-in PID controller
- RS 485 interface, communication protocol LS Bus / Modbus RTU
- On / off cooling fan control
- Remote control via the remote control and J45 cable (optional)
- Additional functions: power-saving mode; kinetic energy buffer; reduce leakage algorithm
- Software for monitoring and maintenance
Specifications
| Manufacturer: | LS |
| Series: | iG5A |
| Model: | SV015iG5A-1 |
| Product Code: | 6020005900 |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 1.5 |
| Current, А: | 8 |
| Main power supply, V: | 200-230 |
| Phase: | 1 |
| Output frequency, Hz: | 0,1-400 |
| Enclosure: | IP20 (optional NEMA1) |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0,01-6000 |
| Deceleration time, sec: | 0,01-6000 |
| EMC filter: | optional |
| Braking unit: | + |
| Analog input: | 1 |
| Digital input: | – |
| Analog output: | – |
| Digital output: | – |
| Relay output: | – |
| RS485 (Modbus RTU): | + |
| Starting torque: | 150% |
| PID: | PID – controller |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+50 |
| Storage temperature, °С: | -20…..+65 |
| Dimensions (W x H x D), mm: | 140х128х155 |
| Weight, kg: | 1,84 |
