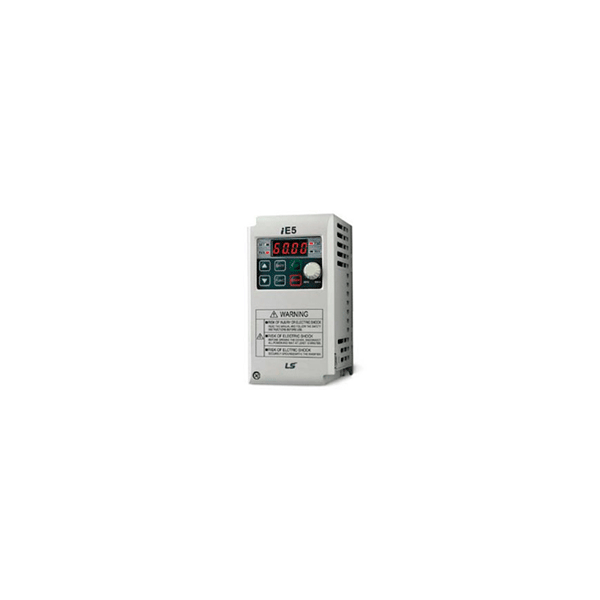

A compact series of frequency inverters iE5 with V / F control is designed for small-sized equipment: packaging, medical, food, as well as conveyors, sewing machines, treadmills, blinds, barriers and billboards.
- V / F control (V / F)
- Compact size
- Output frequency: 0.1 – 200 Hz
- Carrier frequency: 1 – 10 kHz
- History of errors: storage of the last three errors
- Protection class: IP 20
- RS 485 interface, LS Bus / Modbus RTU communication protocol
- DC braking mode
- Manual / automatic torque boost
- Possibility to select PNP / NPN logic for signal inputs
- PI Management
- Frequency increase / decrease and three-wire control
- Automatic restart after power failure
- Built-in potentiometer
- Software for tuning and monitoring (Drive View) Built-in potentiometer
- Copying settings
Specifications
| Manufacturer: | LS |
| Series: | iE5 |
| Model: | SV001iE5-1C |
| Product Code: | 6620000700 |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 0.1 |
| Current, А: | 0.8 |
| Main power supply, V: | 200-230 |
| Phase: | 1 |
| Output frequency, Hz: | 0,1-200 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0,1-6000 |
| Deceleration time, sec: | 0,1-6000 |
| EMC filter: | – |
| Braking unit: | – |
| Analog input: | – |
| Digital input: | 5 |
| Analog output: | 1 |
| Digital output: | – |
| Relay output: | – |
| RS485 (Modbus RTU): | + |
| PID: | PID – controller |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | – |
| Operation temperature, °С: | -20…..+65 |
| Storage temperature, °С: | -10…..+40 |
| Dimensions (W x H x D), mm: | 68х128х85 |
| Weight, kg: | 0,44 |
