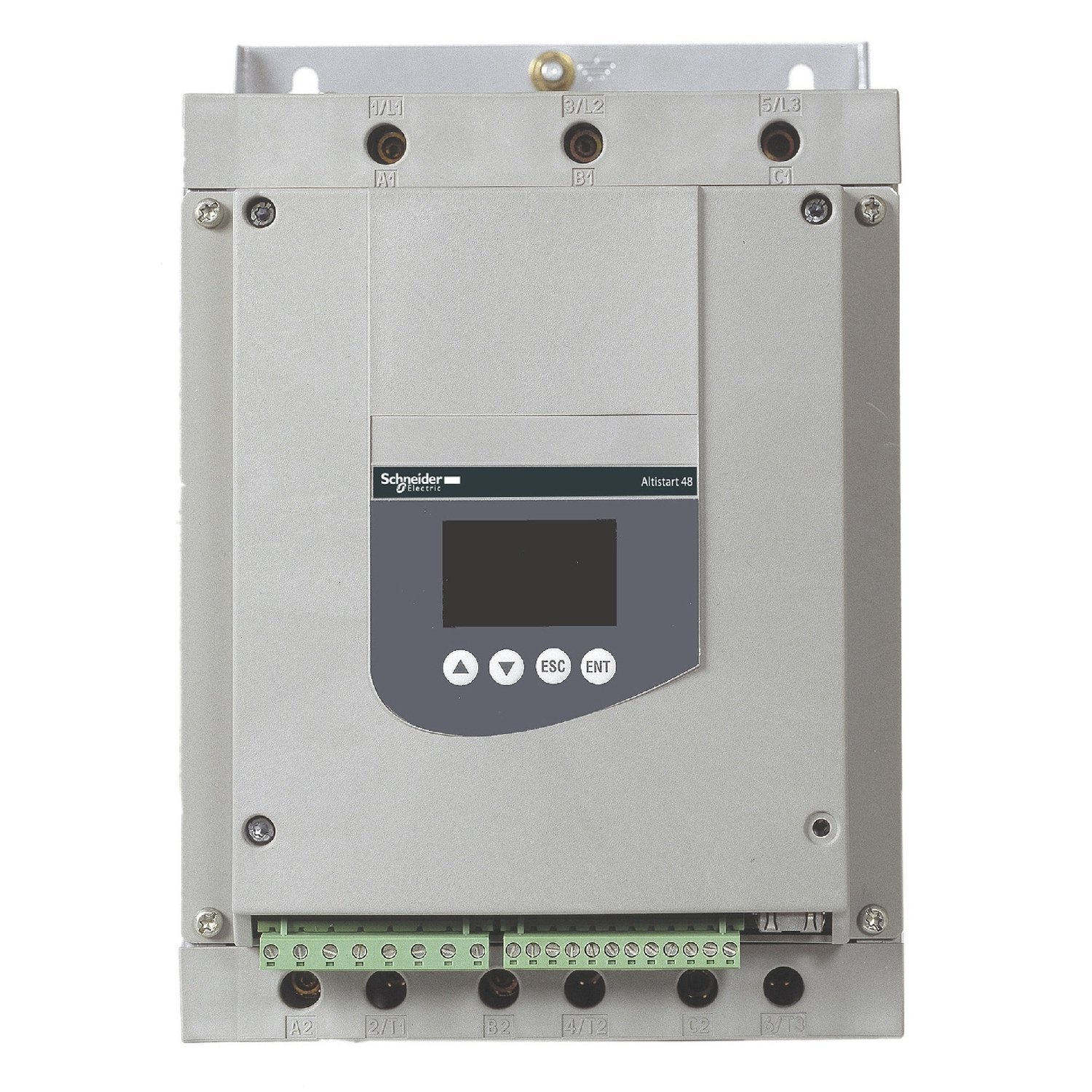

soft starter for asynchronous motor – ATS48 – 81 A – 230..415 V – 18.5..75 KW
Manufacturer: Schneider Electric
Part Number: ATS48D88Q
EAN: 3389110982312
Key Specifications
| Range of product | Altistart 48 |
| Ue power supply voltage | 230…415 V – 15…10 % |
| power supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 55 kW at 400 V connection to the motor delta terminals for severe applications | 75 kW at 400 V connection to the motor delta terminals for standard applications | 18.5 kW at 230 V connection in the motor supply line for severe applications | 22 kW at 230 V connection in the motor supply line for standard applications | 37 kW at 230 V connection to the motor delta terminals for severe applications | 37 kW at 400 V connection in the motor supply line for severe applications | 45 kW at 230 V connection to the motor delta terminals for standard applications | 45 kW at 400 V connection in the motor supply line for standard applications |
| Minimum switching current | 10 mA at 6 V DC for relay outputs |
| Net weight | 8.3 kg |
| Package 1 Weight | 9.204 kg |
| Package 2 Weight | 31.896 kg |
