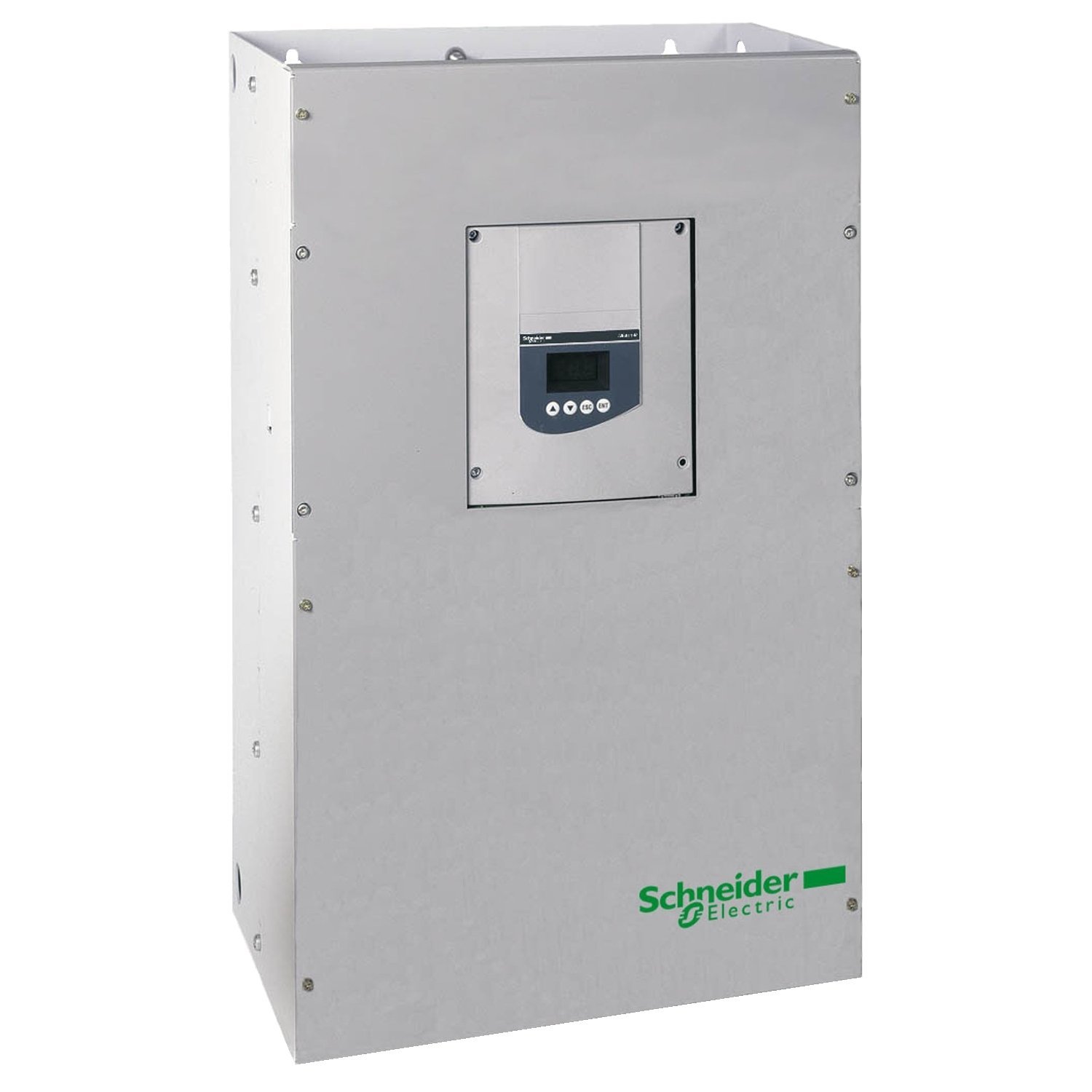

soft starter for asynchronous motor – ATS48 – 414 A – 208..690 V – 110..500 KW
Manufacturer: Schneider Electric
Part Number: ATS48C48Y
EAN: 3389110982480
Key Specifications
| Range of product | Altistart 48 |
| Ue power supply voltage | 208…690 V – 15…10 % |
| power supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 110 kW at 230 V for severe applications | 132 kW at 230 V for standard applications | 220 kW at 400 V for severe applications | 220 kW at 440 V for severe applications | 250 kW at 400 V for standard applications | 250 kW at 440 V for standard applications | 250 kW at 500 V for severe applications | 250 kW at 525 V for severe applications | 315 kW at 500 V for standard applications | 315 kW at 525 V for standard applications | 355 kW at 660 V for severe applications | 400 kW at 660 V for standard applications | 400 kW at 690 V for severe applications | 500 kW at 690 V for standard applications |
| Motor power hp | 125 hp at 208 V for severe applications | 150 hp at 208 V for standard applications | 150 hp at 230 V for severe applications | 300 hp at 460 V for severe applications | 350 hp at 460 V for standard applications | 350 hp at 575 V for severe applications | 400 hp at 575 V for standard applications |
| Minimum switching current | 10 mA at 6 V DC for relay outputs |
| Net weight | 51.4 kg |
| Package 1 Weight | 55.5 kg |
| Package 2 Weight | 64 kg |
