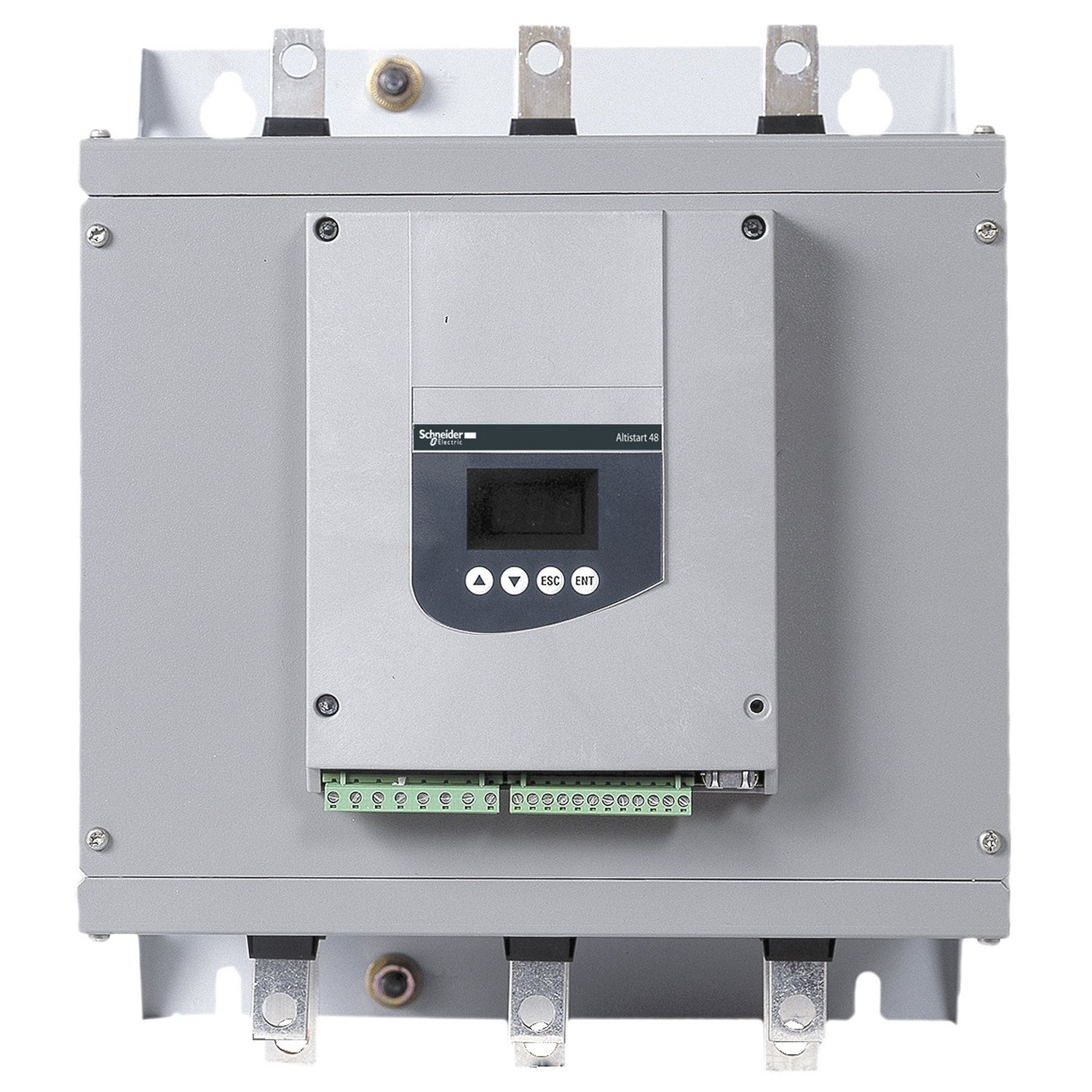

soft starter for asynchronous motor, Altistart 48, 240A, 208 to 690V, 55 to 250kW
Manufacturer: Telemecanique
Part Number: ATS48C25YS338
Key Specifications
| Range of product | Altistart 48 |
| Ue power supply voltage | 208…690 V – 15…10 % |
| power supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 110 kW at 400 V for severe applications | 110 kW at 440 V for severe applications | 132 kW at 400 V for standard applications | 132 kW at 440 V for standard applications | 132 kW at 500 V for severe applications | 132 kW at 525 V for severe applications | 160 kW at 500 V for standard applications | 160 kW at 525 V for standard applications | 160 kW at 660 V for severe applications | 200 kW at 690 V for severe applications | 220 kW at 660 V for standard applications | 250 kW at 690 V for standard applications | 55 kW at 230 V for severe applications | 75 kW at 230 V for standard applications |
| Motor power hp | 100 hp at 230 V for standard applications | 150 hp at 460 V for severe applications | 200 hp at 460 V for standard applications | 200 hp at 575 V for severe applications | 250 hp at 575 V for standard applications | 60 hp at 208 V for severe applications | 75 hp at 208 V for standard applications | 75 hp at 230 V for severe applications |
| Minimum switching current | 10 mA at 6 V DC for relay outputs |
| Net weight | 18.2 kg |
