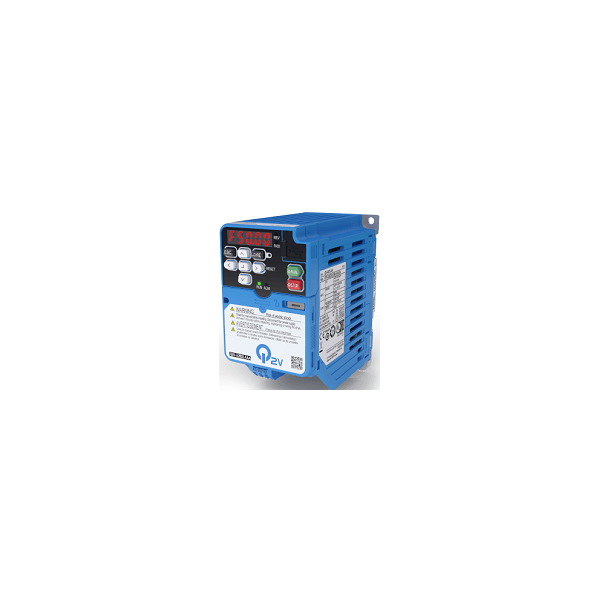

Omrons Q2V offers a compact AC drive that combines easy operation with high-efficiency control for almost any motor type. The result is a robust product designed for maintenance free long-term operation. Q2V is easy to install and set up – reduced cabinet size with side-by-side mounting without derating.
- Flexible motor control: IM, PM, SynRM
- V/f and Sensorless vector motor control
- Speed and torque control in open loop
- Embedded STO (Safe Torque Off) safety function, SIL3/PLe
- Built-in C1/C2/C3 class EMC filter
- Built-in braking transistor
- Quick and easy setup with optional remote LCD keypad with Micro SD card for data storage
- 24 VDC power supply input for control board
- Communication options: EtherCAT, EtherNet/IP, PROFINET, POWERLINK
- Up to 5 Q2V with a single communication option card
- Q2dev: Intuitive drag and drop programming
- Q2app: Mobile app for setup and monitoring
- CE, UL, cUL, EAC, REACH, RoHS
Specifications
| Manufacturer: | Omron |
| Series: | Q2V |
| Model: | Q2V-AB018-AAA |
| Application: | general purpose |
| Capacity, kW: | 4 |
| Current, А: | 17.6 |
| Main power supply, V: | 200-240 |
| Phase: | 1 |
| Output frequency, Hz: | 0,1-590 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 150 / 110 |
| Acceleration time, sec: | 0-6000 |
| Deceleration time, sec: | 0-6000 |
| EMC filter: | + |
| Braking unit: | Built-in braking transistor |
| Analog input: | 2 |
| Digital input: | 7 |
| Analog output: | – |
| Digital output: | 2 |
| Relay output: | 1 |
| RS485 (Modbus RTU): | RS485 (MEMOBUS/Modbus) |
| Starting torque: | V/f: 150%/3 Hz / OLV: 150%/1 Hz |
| PID: | PID control |
| V/f control mode: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+50 |
| Storage temperature, °С: | -20…..+70 |
| Dimensions (W x H x D), mm: | 170x128x180 |
| Weight, kg: | 2,9 |
