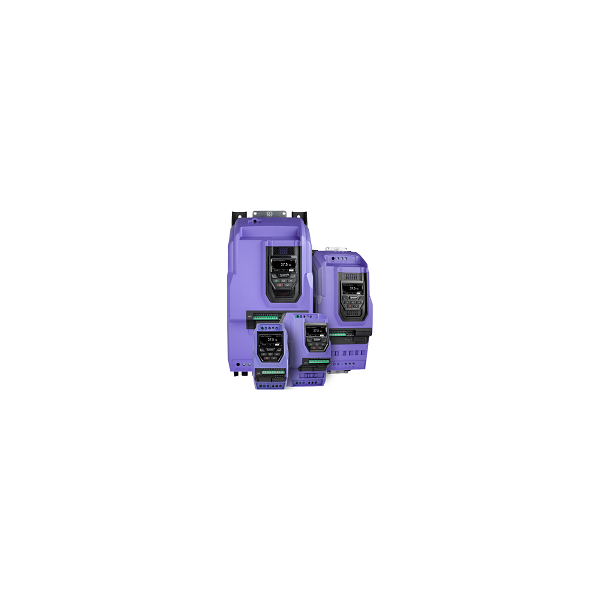

Optidrive Eco HVAC provides a perfect solution to the needs of designers looking to optimise the performance of fans and pumps used in HVAC applications, allowing them to operate with maximum efficiency under all conditions. Invertek Drives’ philosophy to provide innovative products with easy to use, energy efficient features ensures that time, cost and energy savings are maximised at all times, resulting in the shortest possible payback period – the time taken to recover the initial product and installation costs through financial savings achieved through installing Optidrive Eco HVAC drives. For simple installation into your buildings management system all Optidrive Eco HVAC drives are provided with both BACnet and Modbus RTU as standard across the product range.
- Eco Vector Motor Control
- Energy Optimised Design
- Internal EMC filter
- Low noise operation
- Accurate speed control
- Sleep & wake functions
- Intelligent maintenance interval
- Automatic load monitoring
- Built in keypad and OLED text display
- Practical design
- Integrated PID controller
Specifications
| Manufacturer: | Invertek Drives |
| Series: | Optidrive Eco HVAC |
| Model: | ODV-3-722020-3F1N-TN |
| Application: | pumps / fans |
| Capacity, kW: | 55 |
| Current, А: | 202 |
| Main power supply, V: | 200-240 |
| Phase: | 3 |
| Output frequency, Hz: | 0-250 |
| Enclosure: | IP55 |
| Overload capacity, % per 1 min.: | 110 |
| EMC filter: | + |
| Analog input: | 2 |
| Digital input: | 3 |
| Analog output: | 2 |
| Relay output: | 2 |
| RS485 (Modbus RTU): | Modbus RTU (options: PROFIBUS DP (DPV1) PROFINET IO DeviceNet EtherNet/IP EtherCAT Modbus TCP) |
| PID: | PID control |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+50 |
| Storage temperature, °С: | -40…..+60 |
| Dimensions (W x H x D), mm: | 330x1280x360 |
| Weight, kg: | 89 |
