NXB03256-A0T08WG-A1A200E2E3
Vacon Brake Chopper Unit
525 – 690 Vac (640-1100 Vdc), 325 Amp,IP00
Alpha-numeric display
IEC61800-3 for IT networks
No Brake
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: 2RO(NO/NC)
C Slot: No board
D Slot: RS485 (Modbus/N2)
E Slot: PROFIBUS DP
Manual: English
Frame 62 liquid cooled
Other options according to Model code
Model code:
NXB03256-A0T08WG-A1A200E2E3

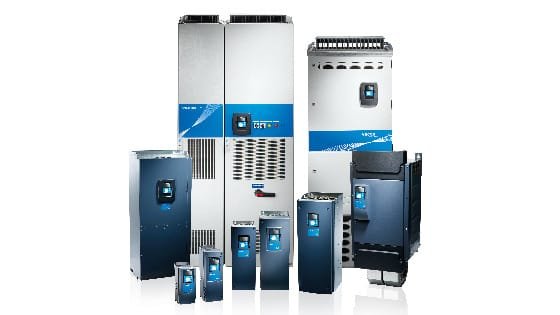

The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
It comprises wall-mounted, enclosed and system drives in the power
range 0.55 kW-5.3 MW.
Liquid-cooled variants are well-suited to applications where air
quality is critical, space is limited, and highly efficient heat
transfer is required.
VACON® NX drives deliver maximum motor control performance and
dynamics for both single-shaft machines and drive systems.
Configurable I/O and fieldbuses cater for any connectivity need.
You can customize drive functions to obtain cost savings and deeper
machine integration.
| Gross weight | 56 Kilogram | ||
| Net weight | 55 Kilogram | ||
| EAN | 5715253808468 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXB | Brake Chopper Unit | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | W | Liquid cooling | |
| Mains voltage | 6- | 525 – 690 Vac (640-1100 Vdc) | |
| Current | 0325 | 325 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | 0 | IP00 | |
| EMC emission levels | T | IEC61800-3 for IT networks | |
| Brake Chopper | 0 | No Brake | |
| Electrical Modification | 8 | BCU Brake chopper unit | |
| Card Modifications | G- | FiberConnection+Varnished PCB | |
| Shipping Package | +GSCB | Cardboard box as Shipping pack | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGNO | No conduit plate | |
| Option Slot A | A1 | 6DI,DO,2AI,1AO,+10Vr,+24V | |
| Option Slot B | A2 | 2RO(NO/NC) | |
| Option Slot C | 00 | No board | |
| Option Slot D | E2 | RS485 (Modbus/N2) | |
| Option Slot E | E3 | PROFIBUS DP | |
| Firmware language package | +FL22 | UK,FR,IT,ES,PT;WestEur | |
| Documentation Level | +DPAP | Paper manuals | |
| Documentation Lang. Preference | +DLUK | English | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | NONE | no software license | |
| Application | +ABFIFF01 | Brake Chopper Unit NXB | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC1 | no additional labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | CH62 | Frame 62 liquid cooled | |
| Sub family identification | NONE | Normal customer ordered | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DB-032560 | ||
| Typecode Part 2 | -000158309 | ||
| Salestext | CH6203256-0T | CH6203256-0T | |
| Modelcode01 | NXB03256-A0T08WG- | ||
| Modelcode02 | A1A200E2E3 | ||
| Calculated Net Weight [kg] | 55 | ||
| Calculated Gross Weight [kg] | 56 | ||
| Motor Power Low Overload [kW] | 542 | 542 | |
| Motor Power High Overload [kW] | – | – | |
| Dimensions WxHxD [mm] | 246X658X374 | 246X658X374 | |
| Continuous Current (NO) [A] | 2X325 | 2X325 | |
| Continuous Current (HO) [A] | – | – | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stock Code | 7DB-032560 | 7DB-032560 | |
| check if complete | OK | OK | |
| Help Counter | 1 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
