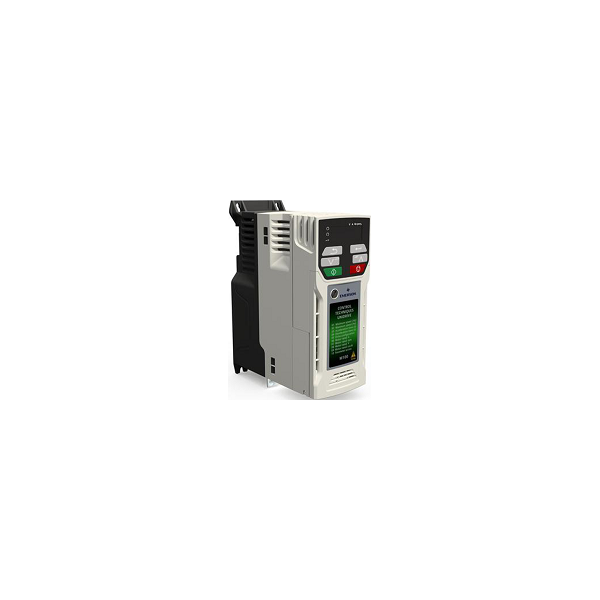

Emerson’s Unidrive M100 drive provides class leading quality and performance for open loop applications. M100 Unidrive has an easy-to-use fixed LED keypad as standard and a useful parameter guide on the front of the drive to aid understanding when setting up and interrogating. The M100 is extremely reliable due to a design based on over 40 years’ of drive knowledge, expertise and development. Build quality is ensured using world leading manufacturing processes. The drive is packed with features to keep systems running in environments as described by IEC60721-3-3 3C3 and EN60068-2-60 Meth. 4.
- Easy-to-use fixed LED keypad
- Useful parameter guide located on the front of the drive
- Concise parameter set for ease of use
- Uses SD card with AI-Backup adaptor to clone and transfer parameter sets
- Open loop V/Hz mode is quick to configure and has autotuning
- DIN Rail mounting is supported below 1.5 kW
- Compact drive dimensions, among the smallest in class at every power rating
- Low losses up to 98% efficient
- Low power standby mode
- Conformal coating supported through extensive environmental testing and certification
Specifications
| Manufacturer: | Emerson |
| Series: | Unidrive M100 |
| Model: | M10x-042 00176A |
| Application: | general purpose |
| Capacity, kW: | 4 |
| Current, А: | 17.6 |
| Main power supply, V: | 200-240 |
| Phase: | 3 |
| Enclosure: | IP21 / UL open class (NEMA 1), IP20 when the AI-Back-up Adaptor is fitted |
| Overload capacity, % per 1 min.: | 150 |
| EMC filter: | + |
| Braking unit: | optional |
| Analog input: | 1 |
| Digital input: | 4 |
| Analog output: | 1 |
| Digital output: | 1 |
| Relay output: | – |
| RS485 (Modbus RTU): | – |
| PID: | – |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | – |
| Operation temperature, °С: | -20…..+40 |
| Storage temperature, °С: | -40…..+60 |
| Dimensions (W x H x D), mm: | 115x245x175 |
| Weight, kg: | 3,13 |
