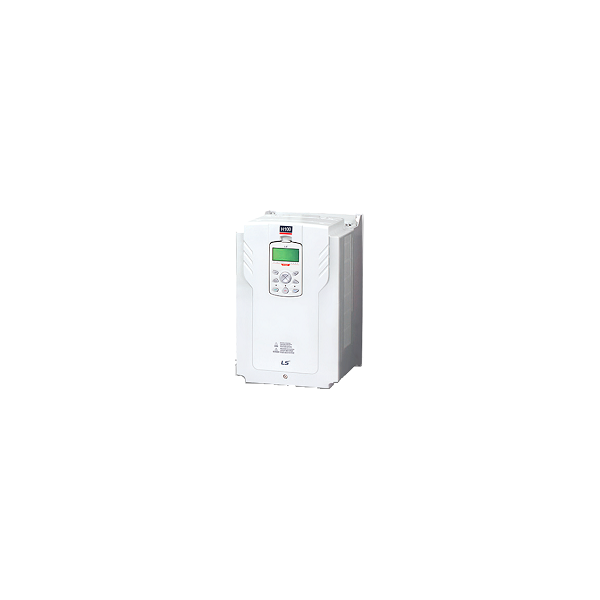

The LSLV-H100 sets the standard for the drive industry. Environmentally friendly water treatment and Fan and Pump systems incorporate the outstanding energy-saving benefits of the LSLV-H100 for fans and pumps. LSLV-H100 drives include a user-friendly keypad designed exclusively for the Fan and Pump market and satisfy various needs of customers.
- RS-485 Capability is built-in
- Modbus-RTU, Metasys N2
- BACnet MS/TP is embedded as standard
- LonWorks option can be added
- Communication Module Exclusive for Fan and Pump-BACnet
- Global Specifications Compliant-UL Plenum Rated
- Side-by-Side Installation
- Reduced Size
- Soft Fill Control
- Multiple-motor Control
- Fire Mode
Specifications
| Manufacturer: | LS |
| Series: | H100 |
| Model: | LSLV0900H100-4COND |
| Product Code: | 6731001600 |
| Application: | pumps / fans |
| Capacity, kW: | 90 |
| Current, А: | 169 |
| Main power supply, V: | 400 |
| Phase: | 3 |
| Output frequency, Hz: | 0-400 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 120 |
| Acceleration time, sec: | 0-600 |
| Deceleration time, sec: | 0-600 |
| EMC filter: | – |
| Braking unit: | + |
| PID: | PID-control |
| Operation temperature, °С: | -10…..+50 |
| Storage temperature, °С: | -20…..+65 |
| Dimensions (W x H x D), mm: | 325x550x309 |
| Weight, kg: | 43 |
