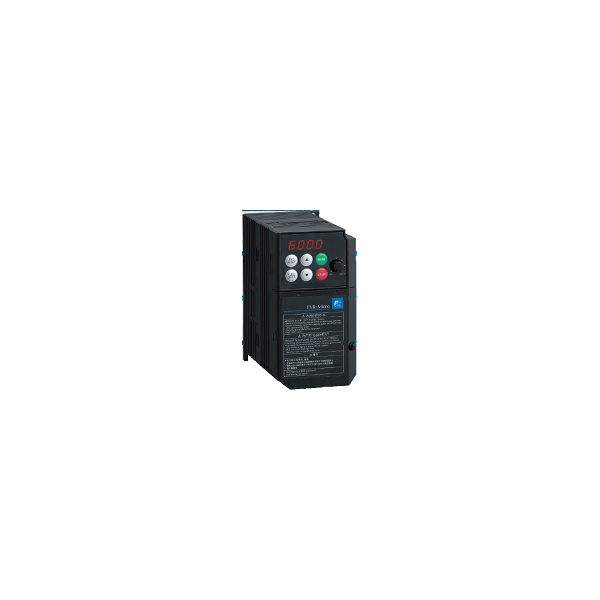

Frenic Micro (AS1-Series) is compact and space-saving. It has simple design and once installed, enjoy easier operation. Frenic Micro is simple, small and smart and general-purpose. It can be used for noodle-making machine, mixer, conveyor transport, fans and pumps and woodworking machinery.
- IP20
- Equipped with Rs-485 as standard
- Equipped with PID control function
- Diverse functionality
Specifications
| Manufacturer: | Fuji Electric |
| Series: | FVR-Micro |
| Model: | FVR0.4AS1S-7E |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 0.4 |
| Current, А: | 2.5 |
| Main power supply, V: | 200 |
| Phase: | 1 |
| Output frequency, Hz: | 0,1-400 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 150 |
| EMC filter: | – |
| Braking unit: | + |
| Analog input: | 2 |
| Digital input: | 6 |
| Starting torque: | + |
| PID: | PID – control |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+50 |
| Dimensions (W x H x D), mm: | 68x128x116 |
| Weight, kg: | 0,6 |
