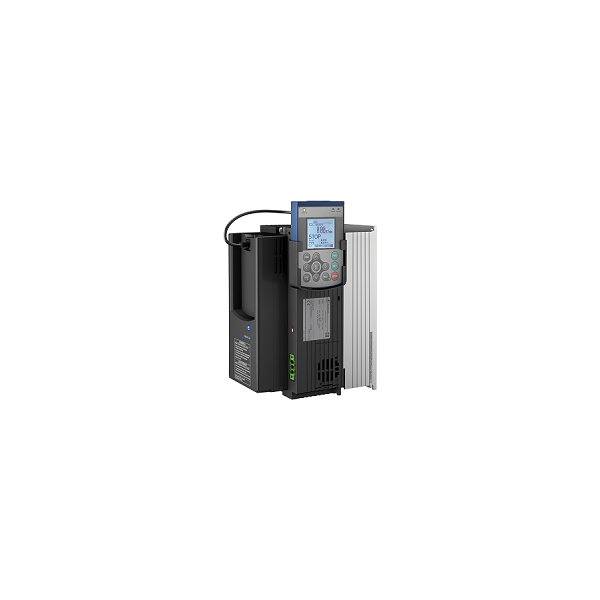

Fuji Electric designed the first FRENIC-Lift frequency inverter to fulfill the requirements of lift applications. Fuji FRENIC-Lift is nowadays the most preferred inverter for lift applications. By using the experiences in the market, we have now developed the upgraded version of FRENIC-Lift- smaller but smarter.
- Book type frame up to 15 kW, Dual Mounting
- Feed through mounting with IP54 heat sink (book type)
- Removable input and output power terminals (book type)
- Easier rescue operation with 24 VDC power supply for control board (book type)
- Contactorless solution compliant to EN 81-1 + A3 and EN 81-20
- Different energy saving levels according to ISO 25745
- Built-in EMC filter
- Built-in advanced fieldbuses dedicated to lift applications (CANopen CiA DSP 402 & 417 and DCP 3 & 4) (*coming soon)
- Faster speed and current control loop for easier and faster comfort adjustment
- Removable control terminals
- Two new motor control modes: Vector control with peripheral PG, sensorless vector control for rescue operation (PMSM) (coming soon)
- Several certified functions for safety operation
- New software functions to make easier setup
- Customizable logic capability (PLC function)
Specifications
| Manufacturer: | Fuji Electric |
| Series: | FRENIC Lift (FRN-LM2A) |
| Model: | FRN0075LM2A-4E |
| Application: | lifts |
| Capacity, kW: | 37 |
| Current, А: | 75 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 1-200 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 200 |
| Acceleration time, sec: | 0-99 |
| Deceleration time, sec: | 0-99 |
| EMC filter: | + |
| Braking unit: | optional |
| Analog input: | 3 |
| Digital input: | 12 |
| Analog output: | 1 |
| Digital output: | 2 – transistor |
| Relay output: | 4 |
| RS485 (Modbus RTU): | RS485 Modbus RTU (CANopen CiA DSP 402 & 417 и DCP 3 & 4) |
| Starting torque: | 200% |
| PID: | – |
| V/f control mode: | – |
| Vector control with feedback: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+45 |
| Storage temperature, °С: | -25…..+65 |
| Dimensions (W x H x D), mm: | 326.2x550x261.3 |
