Invertek’s high-performance OPTIDRIVE™ CoolVert; designed specifically for machine builders to optimise the performance of BLDC compressors used in Heat Pumps and Condensing Units (CDUs), improving overall system performance and lowering energy costs. The product range has been specifically designed for OEM and machine-builders alike with through panel mounting and cold-plate technology options available. The drive has no direct keypad/display but shows drive status with two status indicating LEDs on the front.
- Seamless connectivity with any application controller
- Built in RS485 Modbus RTU
- Bluetooth connectivity available via Optistick Smart
- External TFT keypad available
- Compact design with through panel mounting
- IP20 rated front enclosure, IP55 at the rear
- Pluggable control and communication terminals
- STO SIL3 Safe Torque Off for system protection, TUV approved
- Built-in EMC filter class C2 in accordance with EN61800-3-2004
Specifications
| Manufacturer: | Invertek Drives |
| Series: | Coolvert |

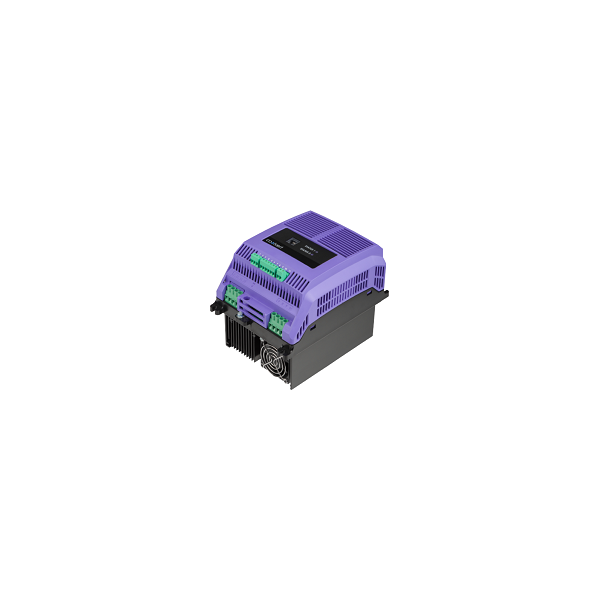

| Model: | CV-220120-1FHP |
| Application: | pumps / fans |
| Capacity, kW: | 3 |
| Current, А: | 12 |
| Main power supply, V: | 200-240 |
| Phase: | 1 |
| Output frequency, Hz: | 0-500 |
| Enclosure: | IP20 |
| Acceleration time, sec: | 0,01-600 |
| Deceleration time, sec: | 0,01-600 |
| EMC filter: | + |
| Analog input: | 1 |
| Digital input: | 1 |
| Digital output: | 1 |
| Relay output: | 2 |
| RS485 (Modbus RTU): | RS485 Modbus RTU |
| Sensorless vector control: | + |
| Operation temperature, °С: | -20…..+60 |
| Storage temperature, °С: | -40…..+70 |
| Dimensions (W x H x D), mm: | 165,3×226,3×176,2 |
| Weight, kg: | 3,05 |
