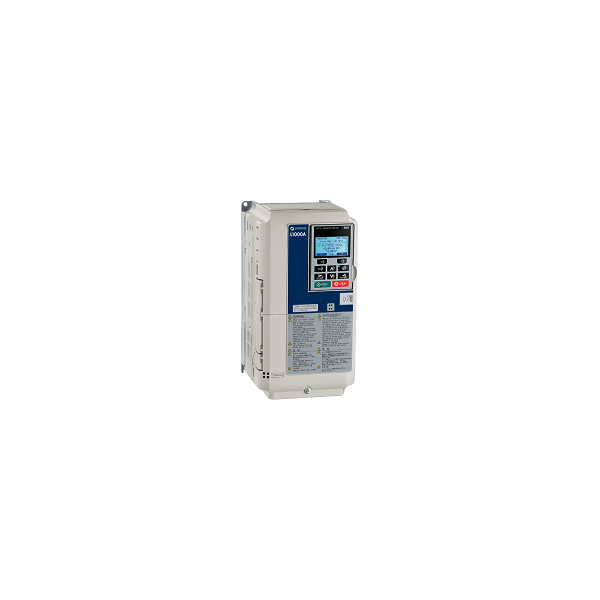

The Omron’s L1000A frequency inverter provides advanced control functions for IM & PM motor control in lift applications. In addition, the L1000A series is quickly installed and is capable of driving almost any lift.
- High starting torque (200%/ 0.3 Hz OLV, 200%/ O Hz CLV)
- Advanced auto-tuning for IM & PM motors
- Lift language (Hz, m/s, rpm, levelling speed…)
- Rescue operation function
- Overshoot and anti-vibration control
- Fieldbus communications: CANopen
- Safety embedded: EN954-1 safety cat. 3, stop cat 0, ISO EN13849-1 PLd, IEC 61508 SIL 2 and EN81-1
Specifications
| Manufacturer: | Omron |
| Series: | L1000A |
| Model: | CIMR-LC2A0283 |
| Application: | lifts |
| Capacity, kW: | 75 |
| Current, А: | 283 |
| Main power supply, V: | 200-240 |
| Phase: | 3 |
| Output frequency, Hz: | 0-240 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0-600 |
| Deceleration time, sec: | 0-600 |
| EMC filter: | optional |
| Braking unit: | optional |
| RS485 (Modbus RTU): | + |
| Starting torque: | 200% |
| PID: | – |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | – |
| Operation temperature, °С: | -10…+50 |
| Storage temperature, °С: | -20…+60 |
| Dimensions (W x H x D), mm: | 450х705х330 |
| Weight, kg: | 86 |
